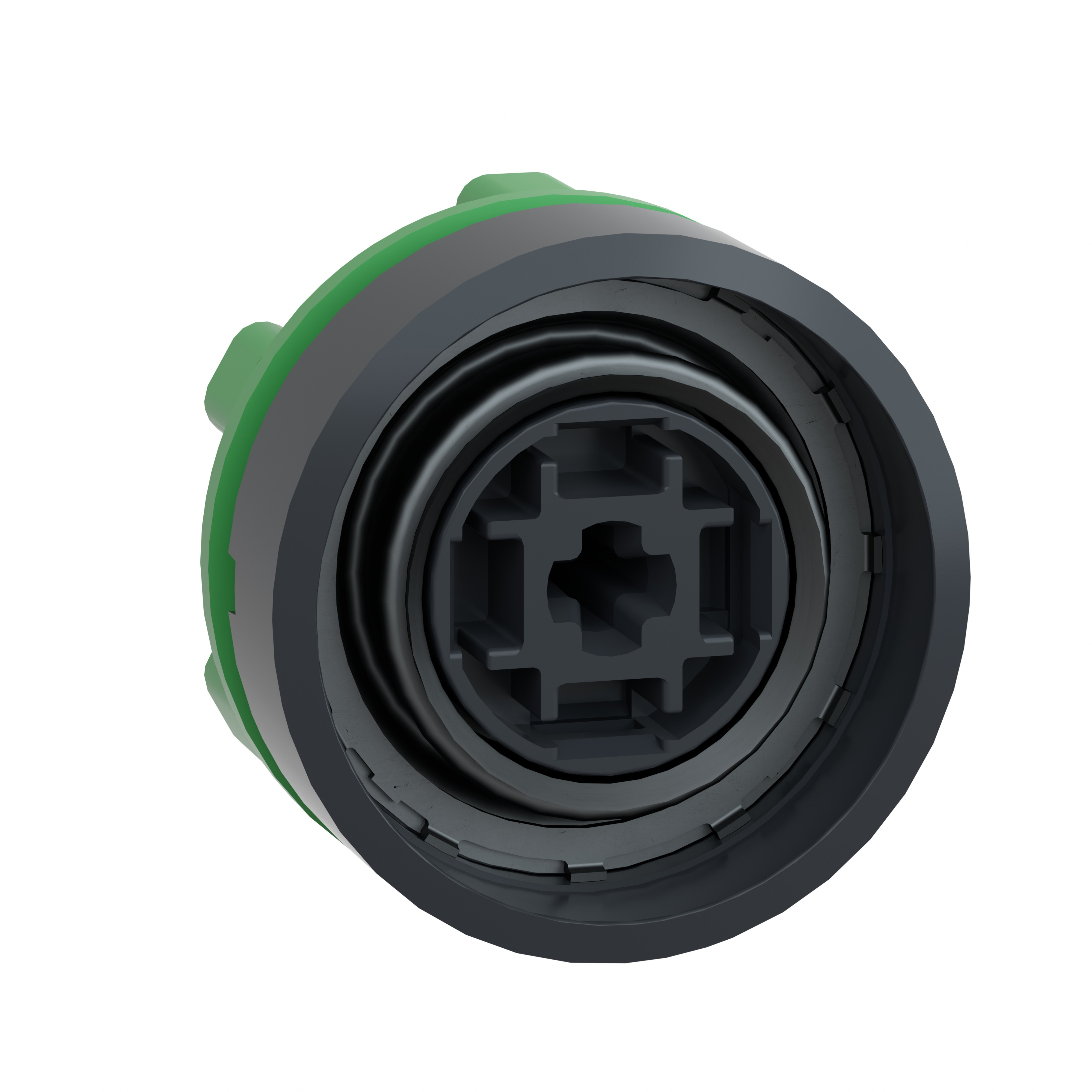

Telemecanique ZB5 Non-Illuminated Pushbutton Head Operator, 22 mm
Pushbuttons
259334
MFG #: ZB5AA0
Schneider Electric
11.96000
/ ea
Schneider Electric ZB5AA0 PUSH BUTTON,22mm Round,Black,Harmony,IP 65,Momentary,NEMA 1/2/3/4/4X/13,No Cap No Cap,Non-Illuminated,Pushbutton Operator,Standard Button Flush,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked
- 360 Degree View URL - index.html?pid=11003&id=7999336360Den&ext=webp(360 Degree View URL)
- Brochure URL - 477148770e7b1a574c73835da85f0afc1a73271a.pdf(Brochure URL)
- Catalog URL - Telemecanique_ZB5AA0_Catalog.pdf(Catalog URL)
- Install Instructions 1 URL - 11003_BS7ZM6HVGI4DFJO1.pdf(Install Instructions 1 URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=ZB5AA0_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_RWOZ4KGMHDPJVLC5.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/qOrWcETKQZg(Video)
- Tech Drawing URL - 11003_0V15OLUHIE89AWYR.pdf(Tech Drawing URL)
- Service Manual URL - files?p_enDocType=Circularity+Profile&p_File_Name=ENVEOLI2303008_V1.pdf(Service Manual URL)
- Applications
- Features
| NO CAP NO CAP |
| NON-ILLUMINATED |
| Round shape of signalling unit head |
| 10000000 cycles mechanical durability |
| 1.14 in H x 1.14 in W x 1.1 in D dimension |
| Flush button |
| 5 gn (f = 2 to 500 Hz) conforming to IEC 60068-2-6 vibration resistance and 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27 shock resistance |
| Operator profile without cap |
