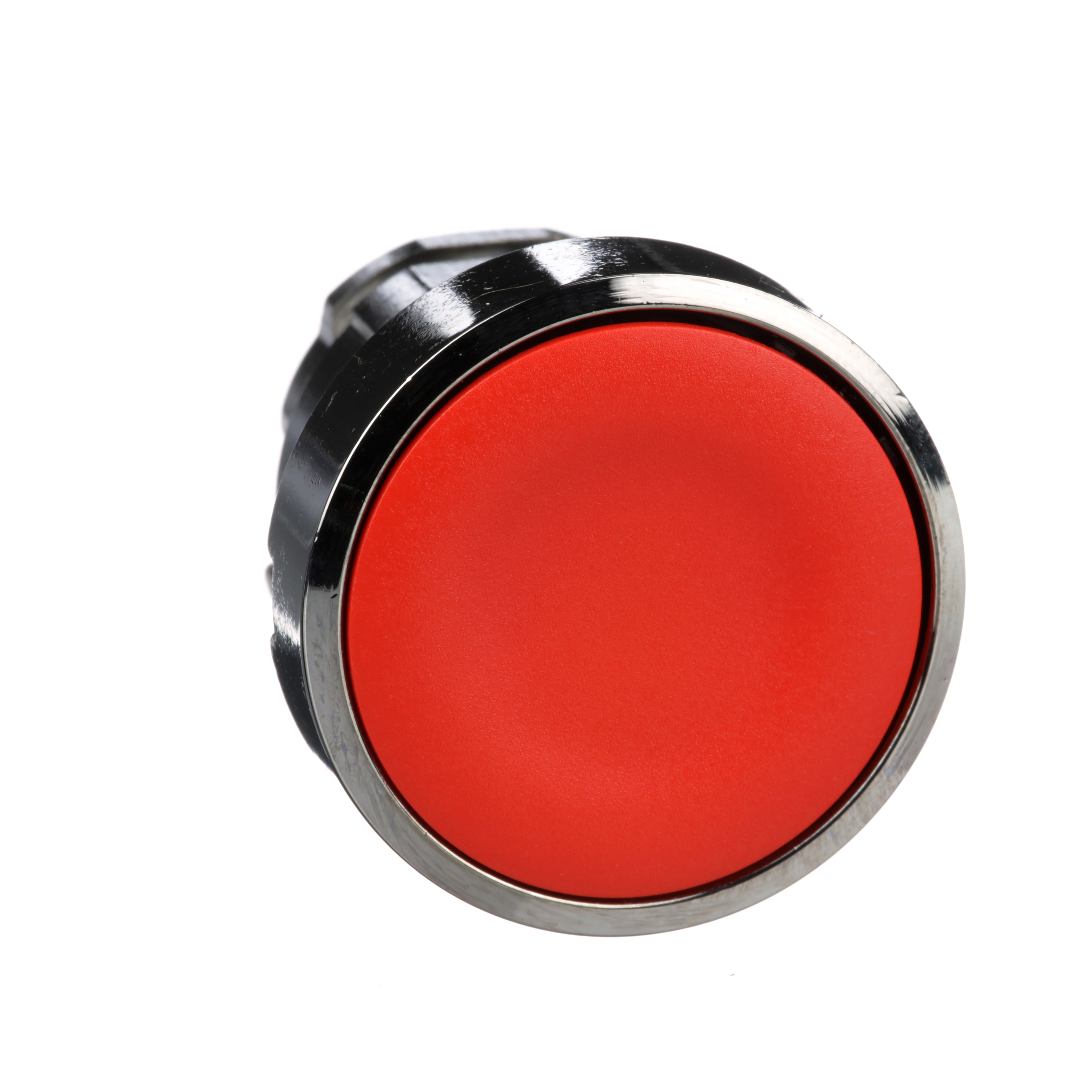

Telemecanique ZB4 Non-Illuminated Pushbutton Head Operator, 22 mm, Red
Pilot Devices
44728
MFG #: ZB4BA4
Schneider Electric
14.15000
/ ea
Schneider Electric ZB4BA4 PUSH BUTTON,22mm Round,Harmony,IP 65,Momentary,NEMA 1/2/3/4/4X/13,Non-Illuminated,Pushbutton Operator,Red Unmarked,Standard Button Flush,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked
- 360 Degree View URL - index.html?pid=11003&id=7998655360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=ZB4BA4(3D Rendering URL)
- Install Instructions 1 URL - 11003_VD4QFZ26N5SYLJXW.pdf(Install Instructions 1 URL)
- Catalog URL - Telemecanique_ZB4BV01_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=ZB4BA4_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Video - https://www.youtube.com/embed/fRFG1d6JH7Q(Video)
- Tech Drawing URL - 11003_BDG8KQNFZ61OPXEL.pdf(Tech Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_UDOKY6NSRJPGT4WI.pdf(Service Manual URL)
- Spec Sheet URL - 11003_2B0TH4F9DGMYQ18N.pdf(Spec Sheet URL)
- Service Manual URL - files?p_enDocType=Circularity+Profile&p_File_Name=ENVEOLI2308035_V1.pdf(Service Manual URL)
- Applications
- Features
| RED UNMARKED |
| NON-ILLUMINATED |
| Round shape of signalling unit head |
| 10000000 cycles mechanical durability |
| 1.14 in H x 1.14 in W x 1.1 in D dimension |
| Flush button |
| 5 gn (f = 2 to 500 Hz) conforming to IEC 60068-2-6 vibration resistance and 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27 shock resistance |
