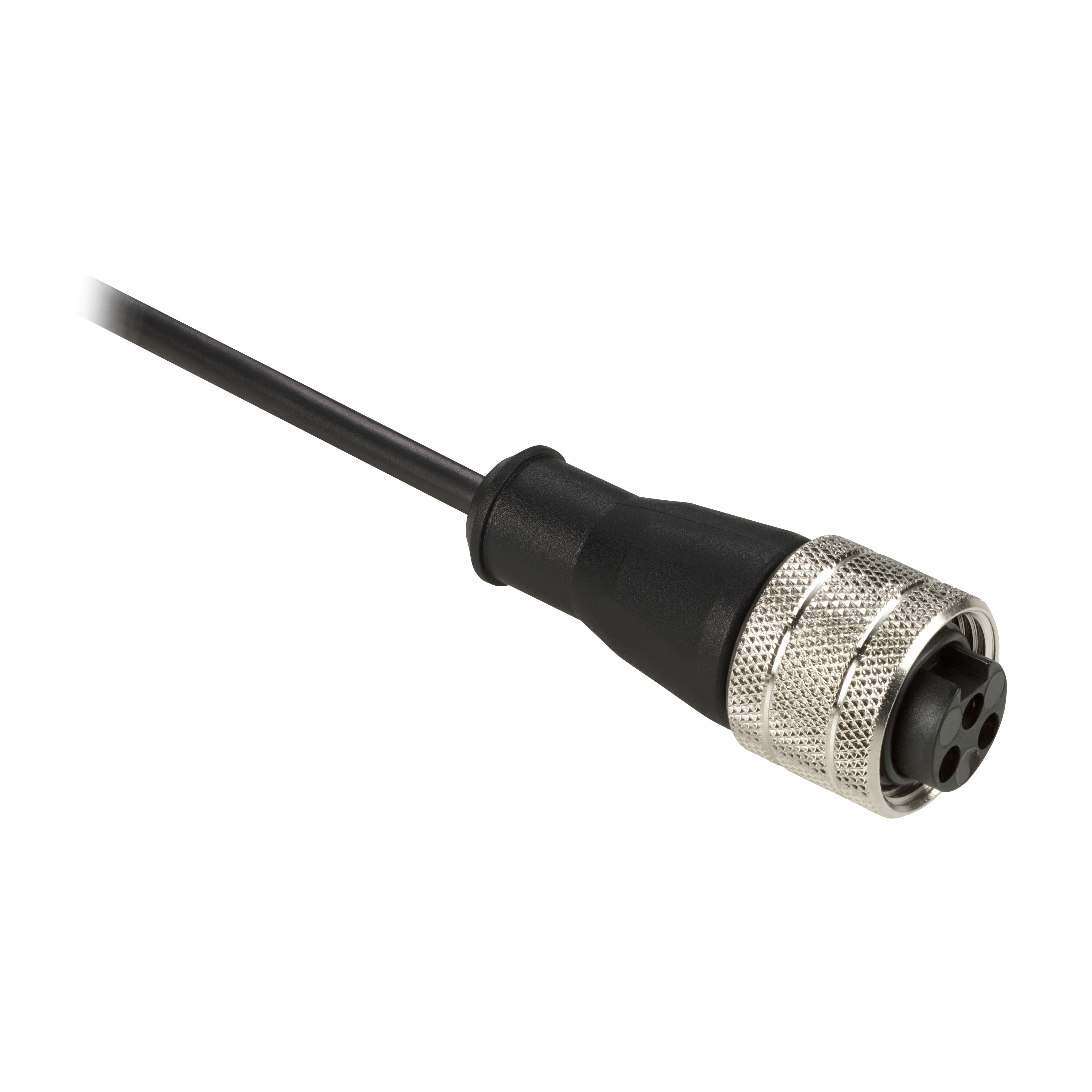

Telemecanique XZCP1865L2 OsiSense® XU Pre-Wired Connector, 1/2-20 UNF Female Connector, 2 m L Cable
Quick Connect Cable Assemblies
1182723
MFG #: XZCP1865L2
Telemecanique Sensors
23.13000
/ ea
Telemecanique OsiSense® XU Pre-Wired Connector, Series: XZC, Female Connector, 1/2-20 UNF Connector, Metal, Screw-On Cable, 2 m Cable Length, Polyurethane Cable, 250 VAC/300 VDC, 4 A
- Brochure URL - 11003_I510VEQMDNAUF2G7.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADID0004672_2D-right.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_FEI1K8W42LXJBGP9.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_Q6XL397S5A2GTUVO.pdf(Service Manual URL)
- Service Manual URL - 11003_XKMY3TOL5HURA9DJ.pdf(Service Manual URL)
- Spec Sheet URL - 11003_75DANTFM291RV8US.pdf(Spec Sheet URL)
- Applications
- Features
| General Purpose Applications |
| IP67 |
| 3-pin straight female electrical connector |
| 5.2 mm OD cable |
| 3 x 0.34 sq-mm cable composition |
| <=5000 MOhm contacts resistance |
| >=1 GOhm insulating resistance |
| IP67 degree of protection |
| -35 to 90 deg C (static), -5 to 90 deg C (flexing) ambient air temperature for operation |
| -35 to 100 deg C ambient air temperature for storage |
