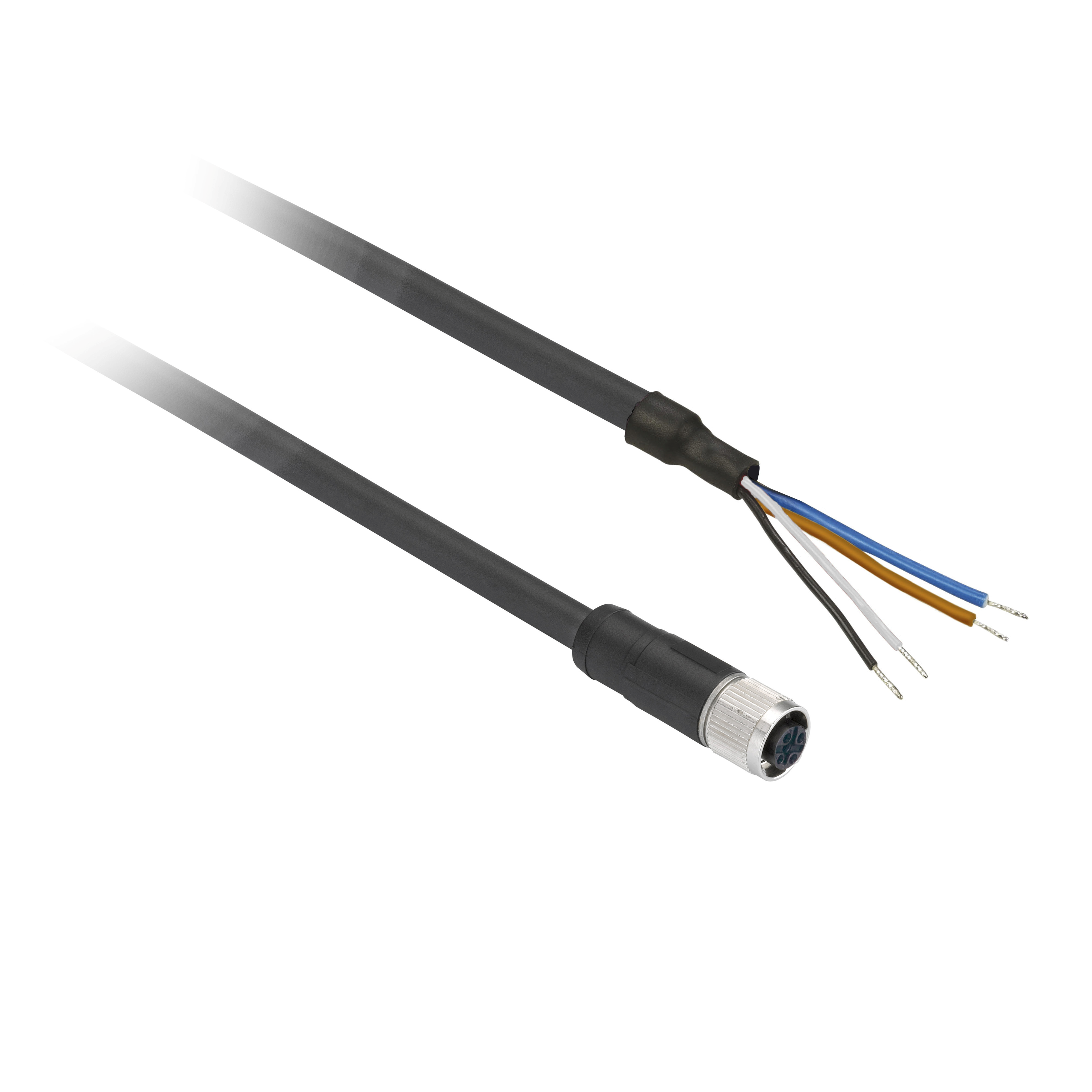

Telemecanique XZCP Straight Pre-Wired Connector, Female Connector, 5 m L Cable
Quick Connect Cable Assemblies
242285
MFG #: XZCP1141L5
Telemecanique Sensors
19.58000
/ ea
Telemecanique Sensors XZCP1141L5 PHOTOELECTRIC SENSOR CONNECTOR 300V 4A,-5...80 deg.C (flexing)--40...80 deg.C (static),250 V AC-300 V DC,4 A,5m,IP65-IP67-IP69K,OsiSense,Straight female connector M12, 4 pins,general purpose,interlocked-screw-on,pre-wired connectors
- Brochure URL - 11003_327LTIKVBZQF6MYS.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Service Manual URL - 11003_Q6XL397S5A2GTUVO.pdf(Service Manual URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Install Instructions 1 URL - 11003_J45AZOU31XGRK8TP.pdf(Install Instructions 1 URL)
- Service Manual URL - 11003_XKMY3TOL5HURA9DJ.pdf(Service Manual URL)
- Spec Sheet URL - 11003_G5DYVM6B8K7CQ9FL.pdf(Spec Sheet URL)
- Applications
- Features
| GENERAL PURPOSE |
| IP65-IP67-IP69K |
| Straight female connector M12, 4 pin electrical connection |
| Metal collar material |
| Interlocked, screw-on cable connector fixing |
| 4 x 0.34 sq-mm cable composition |
| >=1 GOhm insulating resistance |
| <=5000 mOhm contacts resistance |
| IP65, IP67, IP69K deg of protection |
| -40 to 80 deg C (static), -5 to 80 deg C (flexing) ambient air temperature for operation |
| -40 to 80 deg C ambient air temperature for storage |
| 5.2 mm Dia cable outer |
