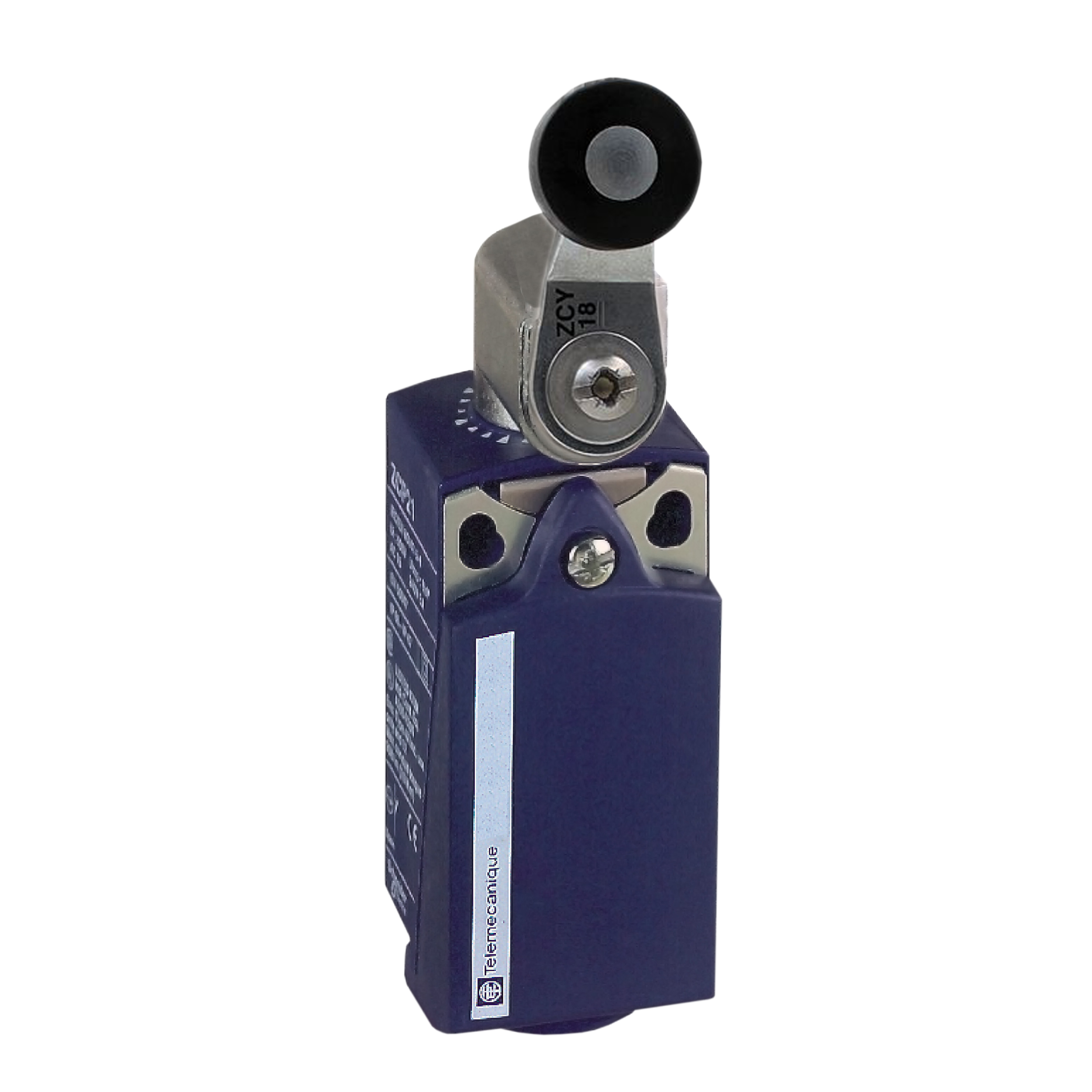

Telemecanique XCKP2118P16 OsiSense® Fixed Standard Format Limit Switch, 240/250 VAC/VDC, 10 A, Spring Return Roller Lever Arm Actuator, 1NC-1NO Contact, 2 Poles
Rotary Actuated Limit Switches
1174452
MFG #: XCKP2118P16
Telemecanique Sensors
55.05000
/ ea
Telemecanique OsiSense® Limit Switch, Fixed Standard Format, Series: XCKP, 240/250 VAC/VDC, 10 A, 1NC-1NO Contact Configuration, 3 A at 240 VAC/0.27 A at 250 VDC Contact, 2 Pole, Momentary/Rotary Action, Spring Return Roller Lever Arm Actuator, Screw Clamp Connection, NEMA 1/2/4/6/12/13/IP66/IP67 Enclosure, 1.22 in W x 1.18 in D x 2.56 in H Size, 10000000 Cycles Operating Cycles, -25 to 70 deg C Operating, Plastic/Zamak, Environmental Conditions: -40 to 158 deg F Ambient Air Temperature
- 360 Degree View URL - 360(360 Degree View URL)
- Brochure URL - 11003_327LTIKVBZQF6MYS.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=9006BR2201NAM_SensorsPano0622.pdf(Brochure URL)
- Service Manual URL - 11003_029T46EDQSHJYMWU.pdf(Service Manual URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_UCAN6FIZET0GKB8Q.pdf(Service Manual URL)
- Tech Drawing URL - sales?sn=XCKP2118P16(Tech Drawing URL)
- Spec Sheet URL - 11003_05UB63RAOYE8ZNIG.pdf(Spec Sheet URL)
- Applications
- Features
| For use with XCKP Series standard format limit switch |
| FIXED,PLASTIC |
| Lever arm with thermoplastic roller (ZCY18) CW and CCW actuator |
| Snap action contacts operation |
| Rotary head |
| Conduit entrance (ISO M16 x 1.5) screw clamp |
