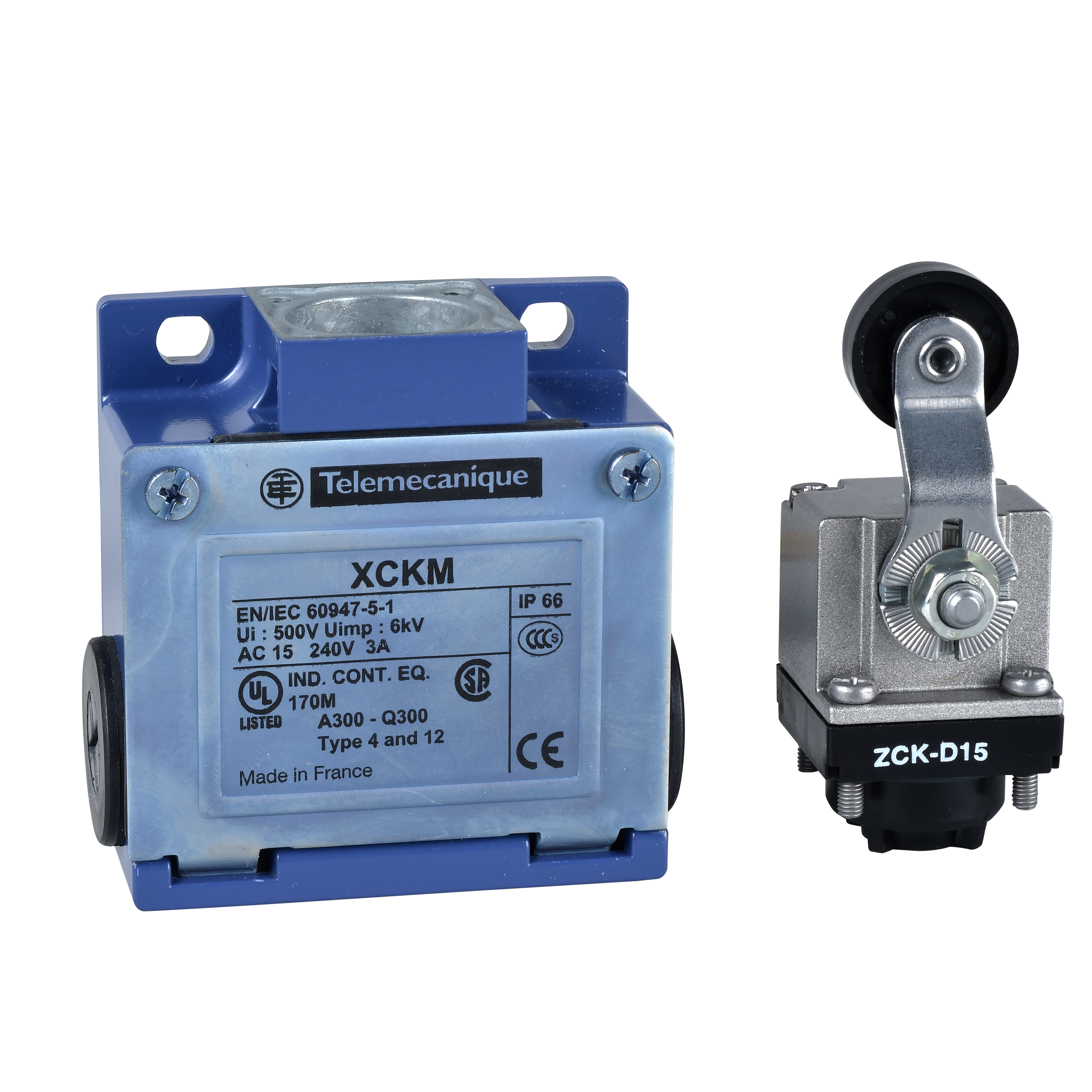

Telemecanique XCKM115 OsiSense® XC Telemecanique Compact Fixed General Duty Standard Rotary Actuated Limit Switch, 240 VAC, 250 VDC, 10 A, Spring Return Roller Lever Arm Actuator, 1NO-1NC Contact, 2 Poles
Limit Switches
99206
MFG #: XCKM115
Telemecanique Sensors
106.77000
/ ea
Telemecanique OsiSense® XC Rotary Actuated Limit Switch, Compact Fixed General Duty Standard, Series: XCKM, 240 VAC, 250 VDC, 10 A, 1NO-1NC Contact Configuration, 3 A at 240 VAC, 0.27 A at 250 VDC Contact, 2 Pole, 25 MOhm Closed Contact Resistance, Rotary/Spring Return/Snap Action, Spring Return Roller Lever Arm Actuator, Screw Clamp Connection, NEMA 4/12/IP65 Enclosure, Body Mounting, 30 mm W x 64 mm D x 64 mm H Size, 5000000 cycles Operating Cycles, -25 to 70 deg C Operating, Metal/Thermoplastic, Environmental Conditions: -40 to 158 deg F Storage Temperature
- 360 Degree View URL - 360(360 Degree View URL)
- Brochure URL - 11003_327LTIKVBZQF6MYS.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&[email protected](Computer~Aided [CAD|BIM] Model URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=9006BR2201NAM_SensorsPano0622.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=XCKM@@1X.dwg(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_ZVFRAMNWXHSTEJ5O.pdf(Spec Sheet URL)
- Applications
- Features
| For classic, packaging, materials handling, conveying, machining, service sector, food and beverage applications |
| Positive opening on all snap and slow-break contact, for safer machinery |
| Modular design for easier maintenance |
| Compact limit switch for making and breaking an electrical connection positive opening for safer machinery one normally open (NO) and one normally closed (NC) snap action contact modular design for easier maintenance |
