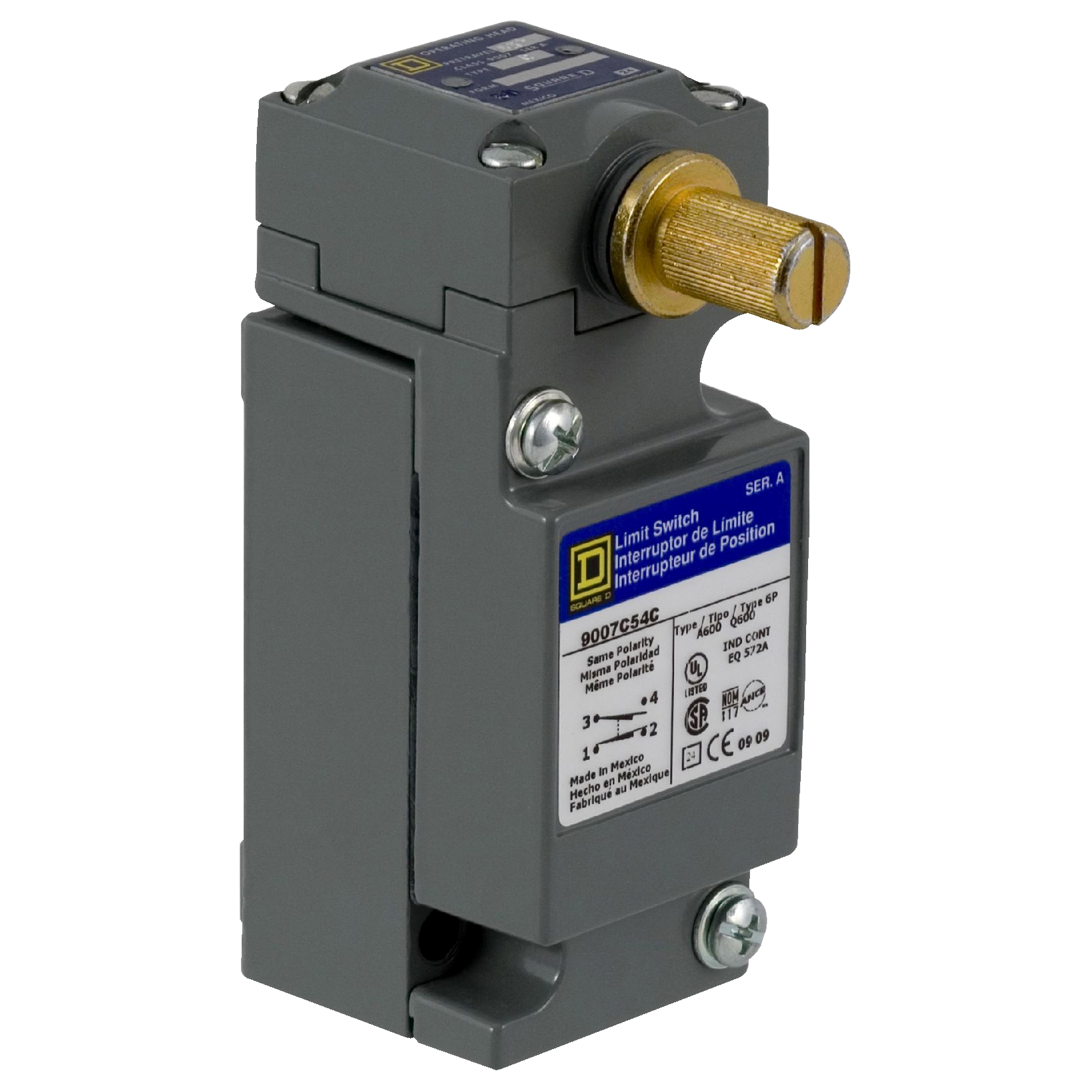

Telemecanique 9007C54CS9 Heavy Duty Standard Format Plug-In Limit Switch, 600 VAC, 10 A, Stay Put Without Operating Lever Actuator, 1NC-1NO Contact, 1 Poles
Rotary Actuated Limit Switches
PDW~6442969
MFG #: 9007C54CS9
Telemecanique Sensors
327.00000
/ ea
Telemecanique Limit Switch, Heavy Duty Standard Format Plug-In, Series: 9007C, 600 VAC, 10 A, 1NC-1NO, 1 Pole, 25 MOhm Closed Contact Resistance, Snap, Stay Put Without Operating Lever, 12 to 22 AWG Screw Clamp Terminal, NEMA 1/2/4/6/6P/12/13/IP65/IP66/IP67, 39.37 mm W x 63.5 mm D x 102.11 mm H, 1000000 cycles Electrical/10000000 cycles Mechanical Operating Cycles, -29 to 85 deg C Operating, Zinc, Environmental Conditions: -29 to 85 deg C Storage
- Brochure URL - 75d54ff06a21df14ff120ae56436f4a928b8c9bc.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADID0002564.pdf(Computer~Aided [CAD|BIM] Model URL)
- Tech Drawing URL - sales?sn=9007C54CS9(Tech Drawing URL)
- Install Instructions 1 URL - 11003_P6RXYZGHC0AFNWOL.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 11003_608X2KI9ULPWQSG1.pdf(Spec Sheet URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Applications
- Features
| Process Machinery - Machine Tools, Plastic, Rubber and Molding, Printing, Textile, Pulp, Paper and Wood Industries |
| Flexible - with five bodies, 20 heads and more than 200 lever styles, Square D™ brand 9007 C heavy duty limit switches are easy to install, versatile and offer a wide range of options, including a complete choice of enclosures to meet virtually any application |
| Rugged - these heavy-duty switches can be applied with confidence that they will withstand the harshest environments |
| They feature the largest diameter shaft in the industry, with a FKM quadring shaft seal to ensure positive head and shaft sealing that is dust and water tight |
| Rotary head |
