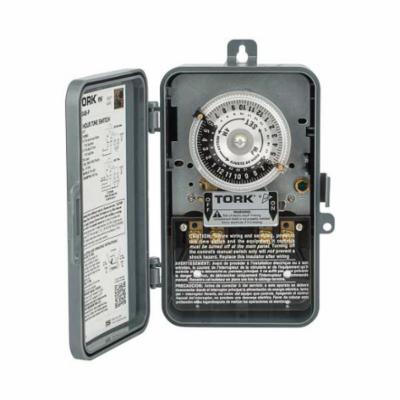

TORK 1101B-P 120V SPST 40A 24HR MECHANICAL TIME SWITCH PLASTIC ENCLOSURE
Mechanical Timers
964485
MFG #: 1101B-P
NSI
137.38000
/ ea
NSI Tork® Mechanical Time Switch, Series: 1100, 120 VAC, 40 A, 2 hp/5 hp, 1 Pole, SPST, 24 hr, NEMA 3R, -40 to 74 deg C, Threaded Mount, 5.062 in L x 3.062 in W x 8.312 in H
- Applications
- Features
| Lighting-Pumps-Signs-Air Conditioning-Watr Heaters-Fan Control |
| SPST 24 Hour Time Switch - Same Day On-Off Times Each Day |
| Minimum on is setting 20 min with a minimum off setting of 75 min |
| Dial accommodates up to 12 pairs of trippers |
| Until the next regularly scheduled on or off automatic operation then resumes |
| Automatic ON/OFF control when operation is required at the same time every day |
| Polycarbonate indoor/outdoor enclosure |
| 3 W power consumption |
| #8 to #14 AWG terminal range |
| 60 Hz frequency |
