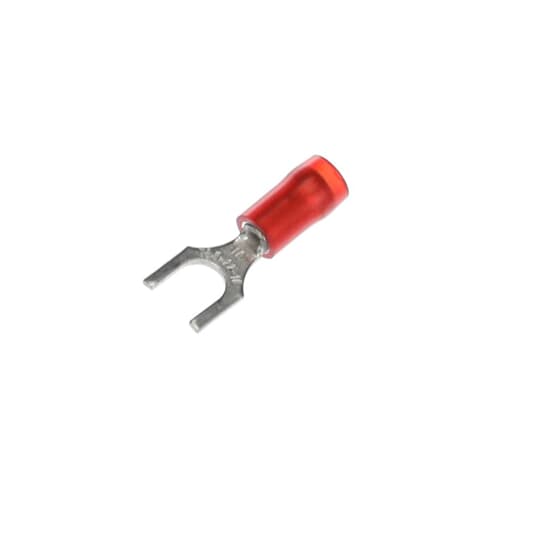

Sta-Kon® RA Series Insulated Fork Terminal, 22 to 16 AWG Conductor, 0.86 in L, Brazed Seam Barrel, Copper, Red
Fork Tongue Terminals
36329
MFG #: RA18-10F
Sta-Kon®
131.18000
/ ea
Wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.
- 360 Degree View URL - index.html?pid=12055&id=10756702360Den&ext=webp&rows=1&cols=48(360 Degree View URL)
- Compliance Cert URL - Sta_Kon_RA18_10F_RoHS_Sheet.pdf(Compliance Cert URL)
- http://www.TNB.com(Seller Home Page URL)
- Line Drawing URL - ring-terminal-sk2ld-8(Line Drawing URL)
- ROHS Compliance URL - Sta_Kon_RA18_10F_RoHS_Sheet.pdf(ROHS Compliance URL)
- Spec Sheet URL - 029_CAT3_G15-19.pdf(Spec Sheet URL)
- Spec Sheet URL - 12055_DP15S476Q32JEFCG.pdf(Spec Sheet URL)
- Tech Drawing URL - ra1163_sk1.JPG(Tech Drawing URL)
- Features
| Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded. |
| Nylon insulated with inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep |
| Brazed seam barrel is serrated for high pull-out value |
| Nylon jacket is Color coded |
| WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools |
