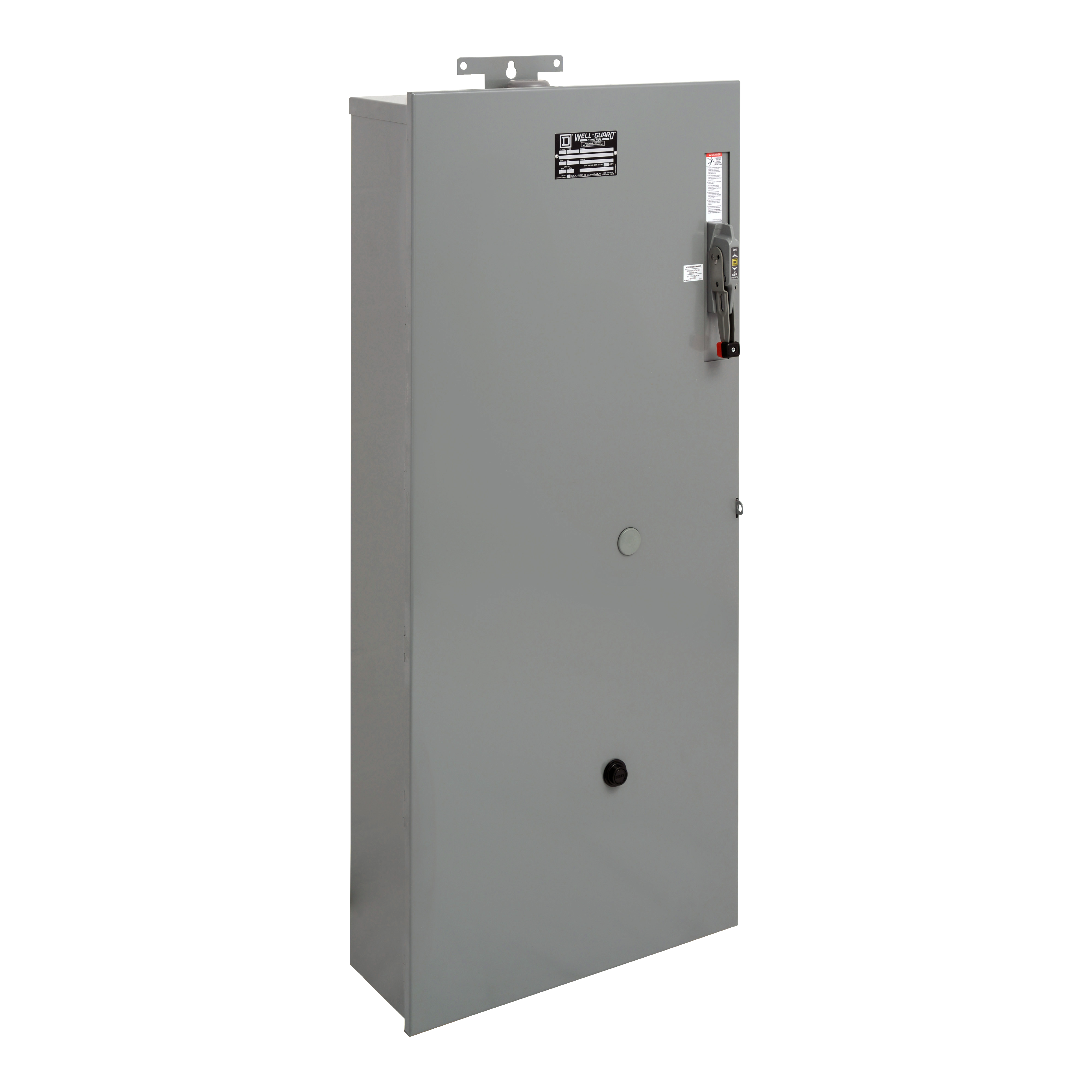

Square D™ Well-Guard Control™ 8940WE3S2V06Y61 Type S2 Pump Panel, 440/480 VAC V Coil, 3 Poles, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™ Well-Guard Control™ 8940WE3S2V06Y61 Type S2 Pump Panel, 440/480 VAC V Coil, 3 Poles, NEMA 3R Enclosure
SKUPDW~6437006
MFGR #8940WE3S2V06Y61
Price Not Available
Square D™ Well-Guard Control™ Pump Panel, Type S2, Series: 8940, 600 VAC, 90 A, 50/60 Hz Frequency, 480 VAC Supply, 50 hp at 480 VAC Motor, 440/480 VAC Coil, 3 Pole, 3 ph, 3 Connection, Melting Alloy Overload Relay, HAND/OFF/AUTO Selector Switch Control, NEMA 3R Enclosure, 24.49 in W x 10.31 in D x 56.5 in H
Square D™ Well-Guard Control™ Pump Panel, Type S2, Series: 8940, 600 VAC, 90 A, 50/60 Hz Frequency, 480 VAC Supply, 50 hp at 480 VAC Motor, 440/480 VAC Coil, 3 Pole, 3 ph, 3 Connection, Melting Alloy Overload Relay, HAND/OFF/AUTO Selector Switch Control, NEMA 3R Enclosure, 24.49 in W x 10.31 in D x 56.5 in H
Alternate Catalog Number 8940WE3S2V06Y61 Amperage Rating 90 Application Indoor/Outdoor, Weatherproof, Oil Field Applications ARRA Compliant N Buy American Compliant N Catalog Number 8940WE3S2V06Y61 Connection Screw Terminal Connection Type 3 Control Type Selector Switch HAND-OFF-AUTO Country of Origin UKN Currency USD Dimensions 24.49 in W x 10.31 in D x 56.5 in H Disconnect Type Fusible disconnect switch;Selector switch HAND-OFF-AUTO) EU RoHS Indicator Y Frequency Rating 50/60 Gross Weight Per Pack 170.0000 lb Gross Weight per Pack Metric 77.11 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 55.96 in Height [Metric] 143.5000 cm Item Group 21397 Length 10.22 in Length [Metric] 26.2000 cm Motor Power 50 hp at 480 VAC Mounting Surface NEMA Frame Size 3 Number Of Poles 3 Overload Relay Melting Alloy Phase 3 Power Supply 480 Reset Type MELTING ALLOY Returnable N Series 8940 Size 10.31 in Standard UL LISTED-NEMA Sub Brand Well-Guard Control;S2 UNSPSC 39121521 UPC 11 78590183854 UPC 12 785901838548 Voltage Rating 600 Warranty Description Contractual Warranty:18 months Width 24.26 in Width [Metric] 62.2000 cm Brand Square D™ Manufacturer Schneider Electric Coil Voltage 440/480 Enclosure Type NEMA 3R Type Type S2 Indoor/Outdoor, Weatherproof, Oil Field Applications Overload Rugged spring latches for easy access without a tool Side mounted control units for convenient operation Flange mounted handle is standard Flexible with four overload relays - Motor Logic™ solid state, adapted bimetal and melting alloy types Customizable with hundreds of combinations of contactors, starters, combination starters, pump panels, two-speed starters, reduced- voltage starters, enclosure options and accessories Serviceable by replacing contacts and coils rather than replacing the entire product
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 8940WE3S2V06Y61 |
| Amperage Rating | 90 |
| Application | Indoor/Outdoor, Weatherproof, Oil Field Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 8940WE3S2V06Y61 |
| Connection | Screw Terminal |
| Connection Type | 3 |
| Control Type | Selector Switch HAND-OFF-AUTO |
| Country of Origin | UKN |
| Currency | USD |
| Dimensions | 24.49 in W x 10.31 in D x 56.5 in H |
| Disconnect Type | Fusible disconnect switch;Selector switch HAND-OFF-AUTO) |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 170.0000 lb |
| Gross Weight per Pack Metric | 77.11 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 55.96 in |
| Height [Metric] | 143.5000 cm |
| Item Group | 21397 |
| Length | 10.22 in |
| Length [Metric] | 26.2000 cm |
| Motor Power | 50 hp at 480 VAC |
| Mounting | Surface |
| NEMA Frame Size | 3 |
| Number Of Poles | 3 |
| Overload Relay | Melting Alloy |
| Phase | 3 |
| Power Supply | 480 |
| Reset Type | MELTING ALLOY |
| Returnable | N |
| Series | 8940 |
| Size | 10.31 in |
| Standard | UL LISTED-NEMA |
| Sub Brand | Well-Guard Control;S2 |
| UNSPSC | 39121521 |
| UPC 11 | 78590183854 |
| UPC 12 | 785901838548 |
| Voltage Rating | 600 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 24.26 in |
| Width [Metric] | 62.2000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Coil Voltage | 440/480 |
| Enclosure Type | NEMA 3R |
| Type | Type S2 |
| Indoor/Outdoor, Weatherproof, Oil Field Applications |
| Overload |
| Rugged spring latches for easy access without a tool |
| Side mounted control units for convenient operation |
| Flange mounted handle is standard |
| Flexible with four overload relays - Motor Logic™ solid state, adapted bimetal and melting alloy types |
| Customizable with hundreds of combinations of contactors, starters, combination starters, pump panels, two-speed starters, reduced- voltage starters, enclosure options and accessories |
| Serviceable by replacing contacts and coils rather than replacing the entire product |
