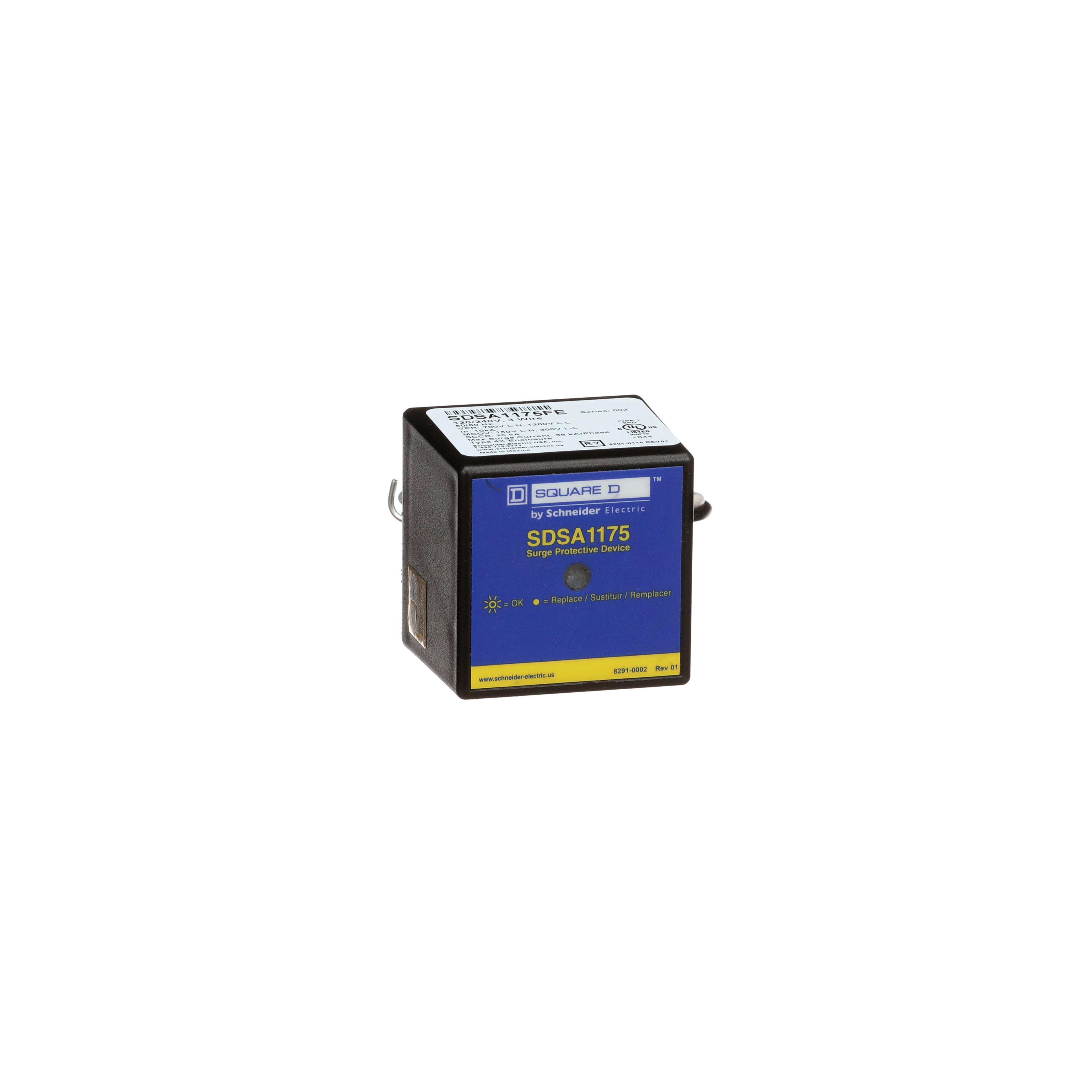

Square D™ SDSA1175FE Type 1 Surge Protective Device, 120/240 VAC, 50/60 Hz, 1 Poles, 25 kA SCCR, 1 ph Phase
Custom_Product_Images_Illustration
Square D™ SDSA1175FE Type 1 Surge Protective Device, 120/240 VAC, 50/60 Hz, 1 Poles, 25 kA SCCR, 1 ph Phase
SKUPDW~7521057
MFGR #SDSA1175FE
Your Cost: $100.27/ea
Square D™ Surge Protective Device, Type 1, Series: SDSA1175, 120/240 VAC, 50/60 Hz, 1 Pole, 3 Wires, 25 kA Short Circuit Current, 36 kA Peak Surge, 10 kA Nominal Discharge, LED Status Light Indicator, 1 ph, Environmental Conditions: 149 deg F Operating Temperature, NEMA 4X, 14 AWG Wire Terminal, Plastic, Black, 2.25 in W x 2.7 in D x 2.25 in H
Square D™ Surge Protective Device, Type 1, Series: SDSA1175, 120/240 VAC, 50/60 Hz, 1 Pole, 3 Wires, 25 kA Short Circuit Current, 36 kA Peak Surge, 10 kA Nominal Discharge, LED Status Light Indicator, 1 ph, Environmental Conditions: 149 deg F Operating Temperature, NEMA 4X, 14 AWG Wire Terminal, Plastic, Black, 2.25 in W x 2.7 in D x 2.25 in H
Alternate Catalog Number SDSA1175FE ARRA Compliant N Buy American Compliant N Catalog Number SDSA1175FE Color Black Country of Origin US Currency USD Depth 2.7 in Dimensions 2.25 in W x 2.7 in D x 2.25 in H Enclosure NEMA 4X,BLACK PLASTIC Enclosure Type NEMA 4X Environmental Conditions 149 deg F Operating Temperature EU RoHS Indicator Y Gross Weight Per Pack 0.0250 lb Gross Weight per Pack Metric 2.50 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536308000 Height 5.7000 in Height [Metric] 5.7000 cm Indicator Type LED Status Light Interrupt Rating 25 kA Item Group 08462 Length 6.9000 in Length [Metric] 6.9000 cm Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402916869&lang=en-us Nominal Discharge Current 10 Number Of Poles 1 Number of Wires 3 Peak Surge Current 36 Returnable N Series SDSA1175 Standard UL 1449:ED. 4 TYPE I-NEC 285-CSA C22.2 NO 8 Terminal Type 14 AWG Wire Type Type 1 UNSPSC 39121101 UPC 11 78590157360 UPC 12 785901573609 Voltage Rating 120/240 VAC Warranty Description Contractual Warranty:18 months Width 5.7000 in Width [Metric] 5.7000 cm Wiring Configuration 3-wire Brand Square D™ Manufacturer Schneider Electric Electrical Ratings 120/240 Frequency Rating 50/60 Phase 1 Short Circuit Current Rating 25 Status LED green normal operation High energy suppression circuitry that can be located at any point in the electrical system As a type 1 rated device, they have the flexibility to be used with or without an overcurrent protection device (OCPD) Surge suppression for equipment from severe transient activity Each metal oxide varistor (MOV) is individually fused LED indicates operational status Convenient back nipple mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SDSA1175FE |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | SDSA1175FE |
| Color | Black |
| Country of Origin | US |
| Currency | USD |
| Depth | 2.7 in |
| Dimensions | 2.25 in W x 2.7 in D x 2.25 in H |
| Enclosure | NEMA 4X,BLACK PLASTIC |
| Enclosure Type | NEMA 4X |
| Environmental Conditions | 149 deg F Operating Temperature |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0250 lb |
| Gross Weight per Pack Metric | 2.50 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536308000 |
| Height | 5.7000 in |
| Height [Metric] | 5.7000 cm |
| Indicator Type | LED Status Light |
| Interrupt Rating | 25 kA |
| Item Group | 08462 |
| Length | 6.9000 in |
| Length [Metric] | 6.9000 cm |
| Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402916869&lang=en-us |
| Nominal Discharge Current | 10 |
| Number Of Poles | 1 |
| Number of Wires | 3 |
| Peak Surge Current | 36 |
| Returnable | N |
| Series | SDSA1175 |
| Standard | UL 1449:ED. 4 TYPE I-NEC 285-CSA C22.2 NO 8 |
| Terminal Type | 14 AWG Wire |
| Type | Type 1 |
| UNSPSC | 39121101 |
| UPC 11 | 78590157360 |
| UPC 12 | 785901573609 |
| Voltage Rating | 120/240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.7000 in |
| Width [Metric] | 5.7000 cm |
| Wiring Configuration | 3-wire |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Electrical Ratings | 120/240 |
| Frequency Rating | 50/60 |
| Phase | 1 |
| Short Circuit Current Rating | 25 |
| Status LED green normal operation |
| High energy suppression circuitry that can be located at any point in the electrical system |
| As a type 1 rated device, they have the flexibility to be used with or without an overcurrent protection device (OCPD) |
| Surge suppression for equipment from severe transient activity |
| Each metal oxide varistor (MOV) is individually fused |
| LED indicates operational status |
| Convenient back nipple mounting |
