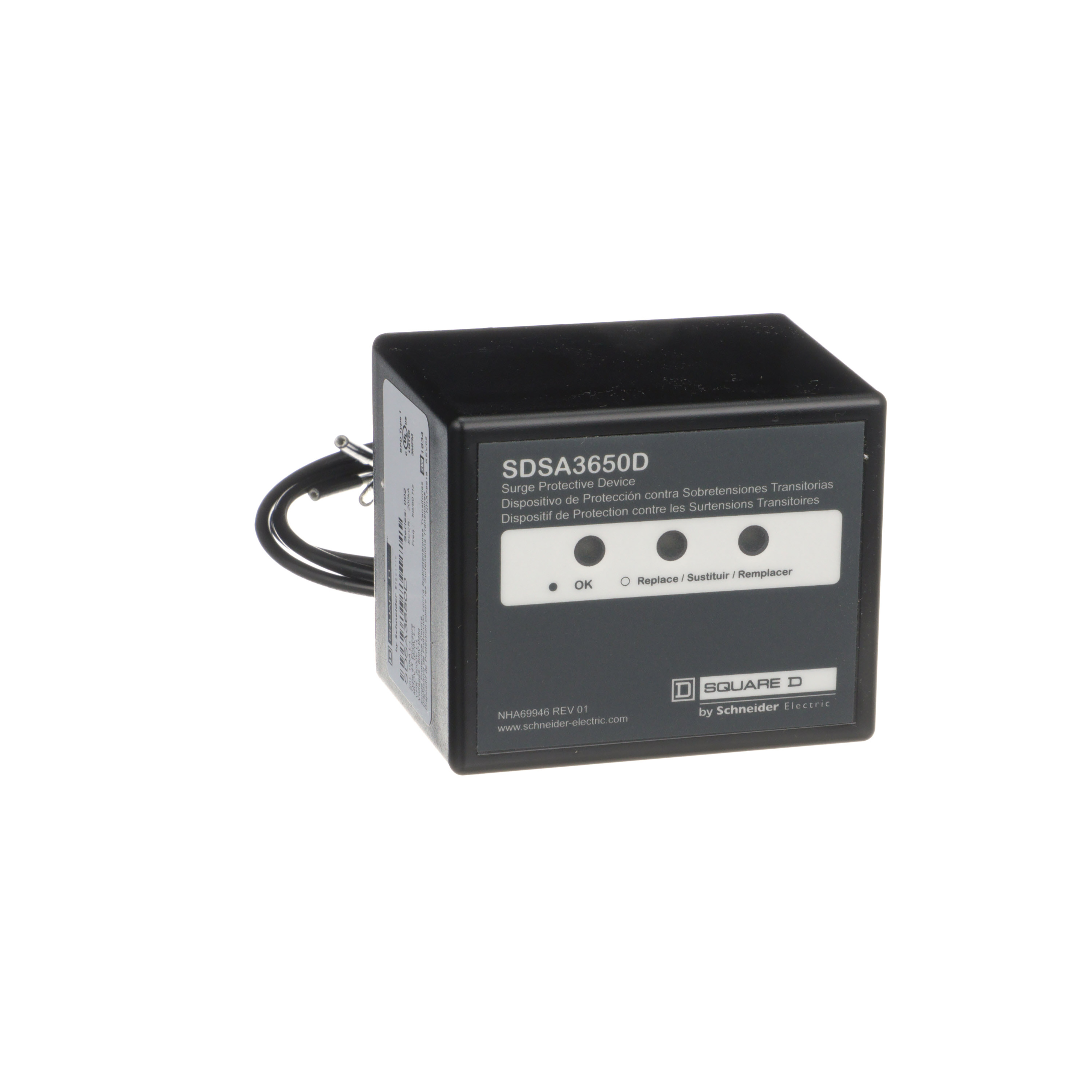

Square D™ SDSA Surge Protection Device, 600 VAC, 50/60 Hz, 3 Poles, 200 kA SCCR, 3 Phase
Custom_Product_Images_Illustration
Square D™ SDSA Surge Protection Device, 600 VAC, 50/60 Hz, 3 Poles, 200 kA SCCR, 3 Phase
SKU576531
MFGR #SDSA3650D
Your Cost: $307.30/ea
Square D SDSA3650D GEN SDSA 3650 DELTA,3 phases,600 V AC,Nipple,Surge Protective Device,Surge suppression,Surgelogic,UL, CSA
Square D SDSA3650D GEN SDSA 3650 DELTA,3 phases,600 V AC,Nipple,Surge Protective Device,Surge suppression,Surgelogic,UL, CSA
Alternate Catalog Number SDSA3650D Application SURGE SUPPRESSION ARRA Compliant N Buy American Compliant N Catalog Number SDSA3650D Country of Origin MX Currency USD Dimensions 3.1 in H x 3.6 in W x 3.4 in D Enclosure NEMA 4X,BLACK PLASTIC Enclosure Type NEMA 4 Environmental Conditions -40 to 149 deg F Storage Temperature EU RoHS Indicator Y Gross Volume Per Pack 73.90 Gross Volume per Pack Metric 1211.00 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.7000 lb Gross Weight per Pack Metric 771.11 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536308000 Height 8.1280 in Height [Metric] 8.1280 cm Indicator Type LED Item Group 08462 Length 12.7000 in Length [Metric] 12.7000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402916867&lang=en-us Modes of Protection L-L Mounting NIPPLE Mounting Type Nipple Nominal Discharge Current 10 kA Number Of Poles 3 Number of Wires 3 Peak Surge Current 36 kA Returnable Y Series SDSA Short Circuit Rating 200 KA kA Size 3 IN,3.4 IN,3.6 IN in Standard UL, CSA Sub Brand SURGELOGIC Type SURGE PROTECTIVE DEVICE UNSPSC 39121112 UPC 11 78590192756 UPC 12 785901927563 Voltage Rating 600 VAC Warranty Description Contractual Warranty:18 months Width 9.9060 in Width [Metric] 9.9060 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Electrical Ratings 600 Frequency Rating 50/60 Hz Phase 3 pH Short Circuit Current Rating 200 kA SURGE SUPPRESSION Square D™ brand Surgelogic™ SDSA3650 SPDs utilize high-energy suppression circuitry that can be located at any point in the electrical system As a Type 1 rated device, they have the flexibility to be used with or without an Overcurrent Protection Device (OCPD) SDSA3650 SPDs provide surge suppression for equipment from severe transient activity Each metal oxide varistor (MOV) is individually fused and the products carry a NEMA Type 4X rating suitable for installing indoors, outdoors or in other harsh environments Surgelogic™ SDSA3650 SPDs are some of the most versatile, yet compact devices available on the market today This compact package can be mounted on an electrical panel, meter socket or inside electrical control cabinets
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | SDSA3650D |
| Application | SURGE SUPPRESSION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | SDSA3650D |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3.1 in H x 3.6 in W x 3.4 in D |
| Enclosure | NEMA 4X,BLACK PLASTIC |
| Enclosure Type | NEMA 4 |
| Environmental Conditions | -40 to 149 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 73.90 |
| Gross Volume per Pack Metric | 1211.00 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.7000 lb |
| Gross Weight per Pack Metric | 771.11 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536308000 |
| Height | 8.1280 in |
| Height [Metric] | 8.1280 cm |
| Indicator Type | LED |
| Item Group | 08462 |
| Length | 12.7000 in |
| Length [Metric] | 12.7000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402916867&lang=en-us |
| Modes of Protection | L-L |
| Mounting | NIPPLE |
| Mounting Type | Nipple |
| Nominal Discharge Current | 10 kA |
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Peak Surge Current | 36 kA |
| Returnable | Y |
| Series | SDSA |
| Short Circuit Rating | 200 KA kA |
| Size | 3 IN,3.4 IN,3.6 IN in |
| Standard | UL, CSA |
| Sub Brand | SURGELOGIC |
| Type | SURGE PROTECTIVE DEVICE |
| UNSPSC | 39121112 |
| UPC 11 | 78590192756 |
| UPC 12 | 785901927563 |
| Voltage Rating | 600 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 9.9060 in |
| Width [Metric] | 9.9060 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Electrical Ratings | 600 |
| Frequency Rating | 50/60 Hz |
| Phase | 3 pH |
| Short Circuit Current Rating | 200 kA |
| SURGE SUPPRESSION |
| Square D™ brand Surgelogic™ SDSA3650 SPDs utilize high-energy suppression circuitry that can be located at any point in the electrical system |
| As a Type 1 rated device, they have the flexibility to be used with or without an Overcurrent Protection Device (OCPD) |
| SDSA3650 SPDs provide surge suppression for equipment from severe transient activity |
| Each metal oxide varistor (MOV) is individually fused and the products carry a NEMA Type 4X rating suitable for installing indoors, outdoors or in other harsh environments |
| Surgelogic™ SDSA3650 SPDs are some of the most versatile, yet compact devices available on the market today |
| This compact package can be mounted on an electrical panel, meter socket or inside electrical control cabinets |
