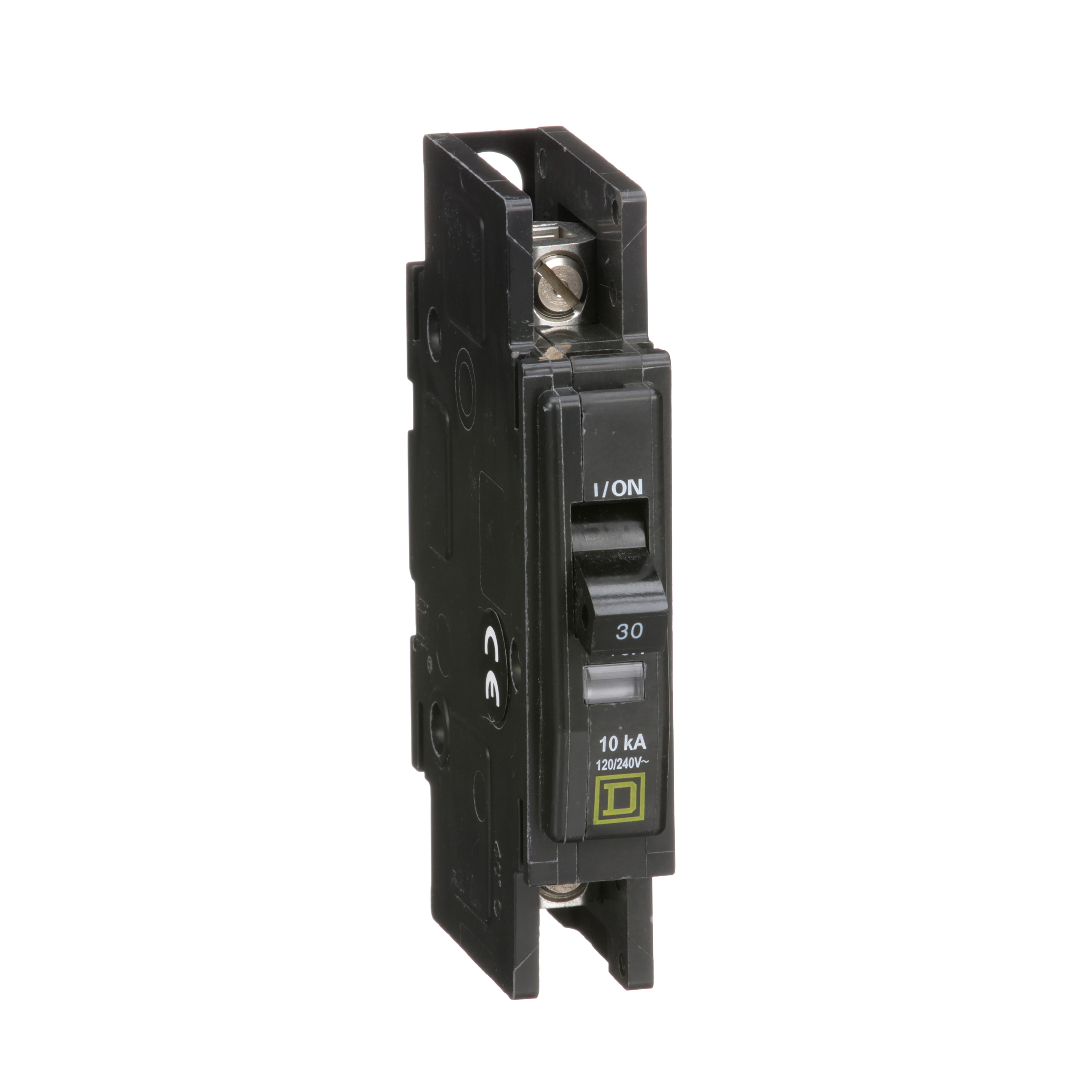

Square D™ QOU130 Miniature Circuit Breaker, 240 VAC/48 VDC, 30 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Miniature Circuit Breakers
33243
MFG #: QOU130
Square D™
39.82000
/ ea
Square D QOU130 MINIATURE CIRCUIT BREAKER 120/240V 30A,10kA,120/240VAC,30A,Line Box Lug - Load Box Lug #14-2 AWG(Al/Cu),Miniature Circuit Breaker,QOU,Standard Flush, Surface or DIN Rail (35mm),UL489 Listed - CSA 22.2 #5.1 Certified - IEC Rated 60947-2
- 360 Degree View URL - index.html?pid=11003&id=8042564360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=QOU130(3D Rendering URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Compliance Cert URL - Square_D_QOU130_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - d337ead740bd328814ca8628ba2874adc7993dbb.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_OPSX3V4ECMFWDQUZ.pdf(Install Instructions 1 URL)
- Install Instructions URL - files?p_Doc_Ref=48840-001-02(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_AG2MC9KFYSV01ITU.pdf(Spec Sheet URL)
- Tech Bulletin URL - files?p_enDocType=Data+Bulletin&p_File_Name=0102DB2301.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_HP4K71MI60F9GOVW.zip(Tech Drawing URL)
- Applications
- Features
| HACR and Switching Duty rated |
| STANDARD FLUSH, SURFACE OR DIN RAIL (35MM) |
| Automatically open a circuit under overload or short circuit conditions |
| Feature common tripping of all poles |
| Visi-Trip™ on all the circuit breakers for easy trip detection |
| Can be flush-, surface-, or DIN rail- Mounted |
| has lugs at both ends (cable-in/cable-out construction) |
| Operate in any position |
| Are fully tested, UL Listed, and CSA certified for reverse connection without restrictive line/load markings |
| Operate in any position |
| Single handle with internal common trip |
| Reversible line and load lugs |
| Field installable quick connectors |
| 5 kA at 277 VAC, 10 kA at 120/240VAC short circuit current rating |
| 14 to 2 AWG aluminum/copper wire |
