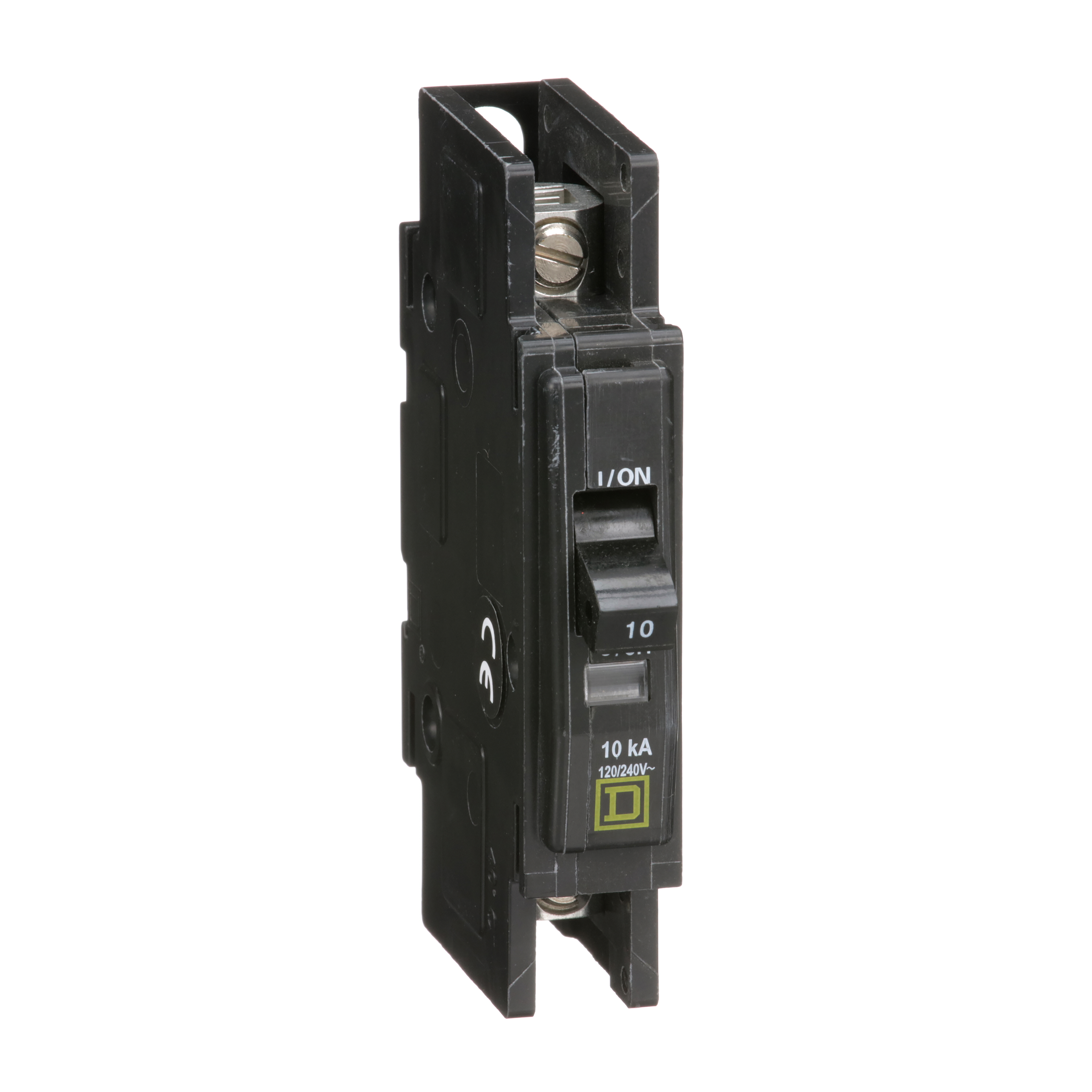

Square D™ QOU110 Miniature Circuit Breaker, 120/240 VAC, 10 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Circuit Breakers
32433
MFG #: QOU110
Square D™
40.01000
/ ea
- 360 Degree View URL - index.html?pid=11003&id=8083925360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=QOU110(3D Rendering URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_c5b326735eb8d1d236aee0ae89f871f8971a71ae7f56a2c5995b35a605d67649.pdf(Catalog URL)
- Compliance Cert URL - Square_D_QOU110_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - d337ead740bd328814ca8628ba2874adc7993dbb.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_OPSX3V4ECMFWDQUZ.pdf(Install Instructions 1 URL)
- Install Instructions URL - files?p_Doc_Ref=48840-048-01(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_B08UOFLQKSA12YCM.pdf(Spec Sheet URL)
- Tech Bulletin URL - files?p_enDocType=Data+Bulletin&p_File_Name=0102DB2301.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_HP4K71MI60F9GOVW.zip(Tech Drawing URL)
- Applications
- Features
| QOU |
| STANDARD FLUSH, SURFACE OR DIN RAIL (35MM) |
| Automatically open a circuit under overload or short circuit conditions |
| Feature common tripping of all poles |
| Visi-Trip on all the circuit breakers for easy trip detection |
| Can be flush-, surface-, or DIN rail- Mounted |
| has lugs at both ends (cable-in/cable-out construction) |
| Operate in any position |
| Are fully tested, UL Listed, and CSA certified for reverse connection without restrictive line/load markings |
| Operate in any position |
| Single handle with internal common trip |
| Reversible line and load lugs |
| Field installable quick connectors |
| 5 kA at 277 VAC, 10 kA at 120/240VAC short circuit current rating |
| 14 to 2 AWG aluminum/copper wire |
| Standard |
