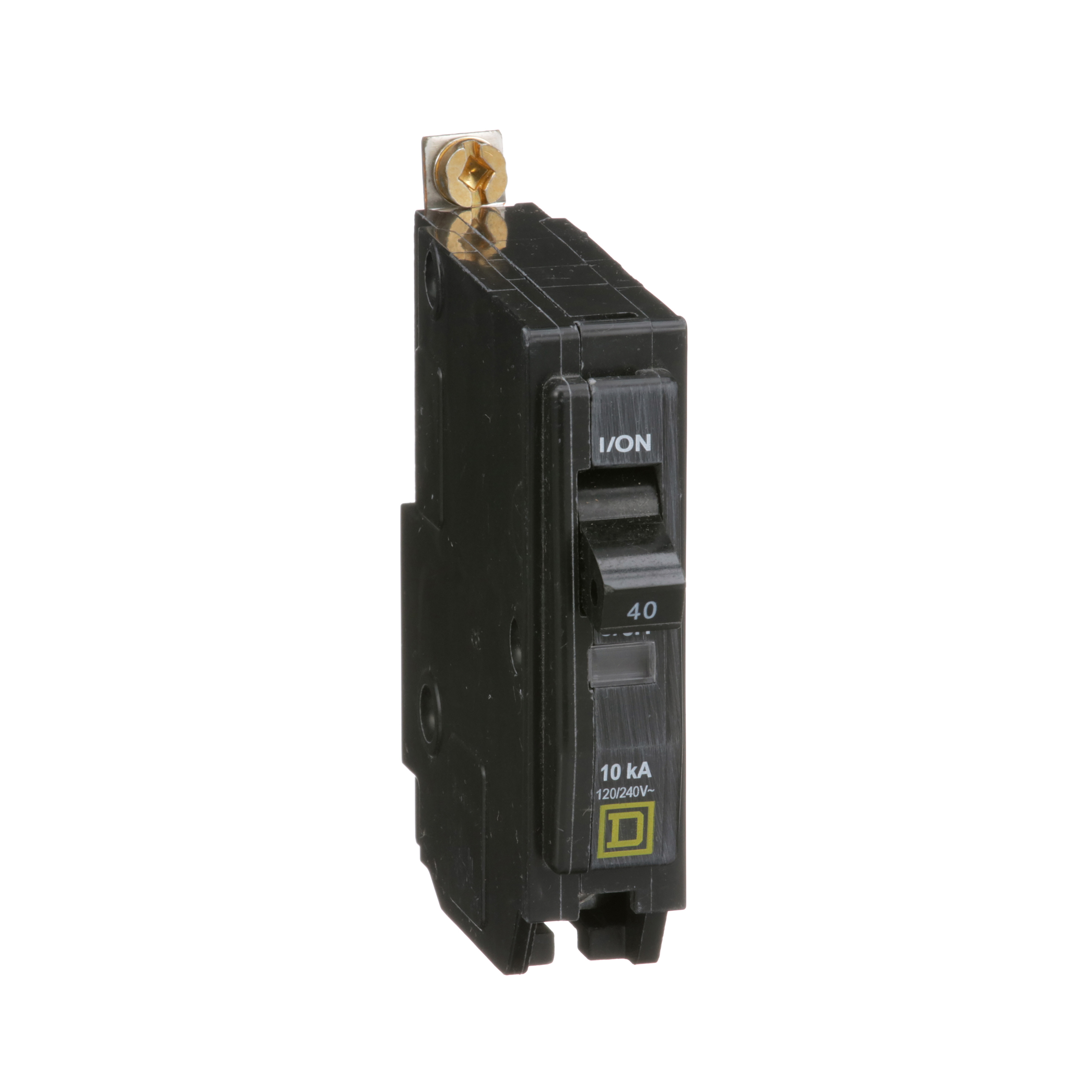

Square D™ QOB140 Miniature Circuit Breaker, 240 VAC/48 VDC, 40 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QOB140 Miniature Circuit Breaker, 240 VAC/48 VDC, 40 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
SKU33223
MFGR #QOB140
Your Cost: $43.88/ea
Square D QOB140 MINIATURE CIRCUIT BREAKER 120/240V 40A,1-Phase,10kA,120/240 Vac,40A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Bolt-On,UL Listed - CSA Certified
Square D QOB140 MINIATURE CIRCUIT BREAKER 120/240V 40A,1-Phase,10kA,120/240 Vac,40A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Bolt-On,UL Listed - CSA Certified
Alternate Catalog Number QOB140 Amperage Rating 40 A Application HACR rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QOB140 Connection BOX LUGS Connection Type Box Lug Country of Origin MX Currency USD Dimensions 2.91 in L x 0.75 in W x 3 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 9.80 Gross Volume per Pack Metric 160.59 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1900 lb Gross Weight per Pack Metric 141.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 2.0320 in Height [Metric] 2.0320 cm Interrupt Rating 10 kA Item Group 00015 Length 8.8900 in Length [Metric] 8.8900 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400515&lang=en-us Mounting Type Bolt-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards CSA 22.2 No. 5, HACR Rated, RoHS Compliant, UL 489 Listed Stock Status NORMALLY STOCKED Sub Brand QO Substitute Product Catalog Number QO1HT Temperature Rating 104 °F Trip Type Thermal Magnetic Type Standard UNSPSC 39121603 UPC 11 78590141678 UPC 12 785901416784 Voltage Rating 120/240 VAC Warranty Description Contractual Warranty:18 months Width 8.8900 in Width [Metric] 8.8900 cm Wire Size 8 to 2 AWG HACR rated STANDARD BOLT-ON QO and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication The tripping mechanisms in two-and three-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboards QO and QOB circuit breakers have VISI-TRIP feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit 8 - 2 AWG copper/aluminum 10 kA at 120/240 VAC, 5 kA at 48 VDC Standard
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB140 |
| Amperage Rating | 40 A |
| Application | HACR rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QOB140 |
| Connection | BOX LUGS |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.91 in L x 0.75 in W x 3 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 9.80 |
| Gross Volume per Pack Metric | 160.59 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1900 lb |
| Gross Weight per Pack Metric | 141.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 2.0320 in |
| Height [Metric] | 2.0320 cm |
| Interrupt Rating | 10 kA |
| Item Group | 00015 |
| Length | 8.8900 in |
| Length [Metric] | 8.8900 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400515&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | CSA 22.2 No. 5, HACR Rated, RoHS Compliant, UL 489 Listed |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO1HT |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590141678 |
| UPC 12 | 785901416784 |
| Voltage Rating | 120/240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.8900 in |
| Width [Metric] | 8.8900 cm |
| Wire Size | 8 to 2 AWG |
| HACR rated |
| STANDARD BOLT-ON |
| QO and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication |
| The tripping mechanisms in two-and three-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously |
| Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboards |
| QO and QOB circuit breakers have VISI-TRIP feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit |
| 8 - 2 AWG copper/aluminum |
| 10 kA at 120/240 VAC, 5 kA at 48 VDC |
| Standard |
