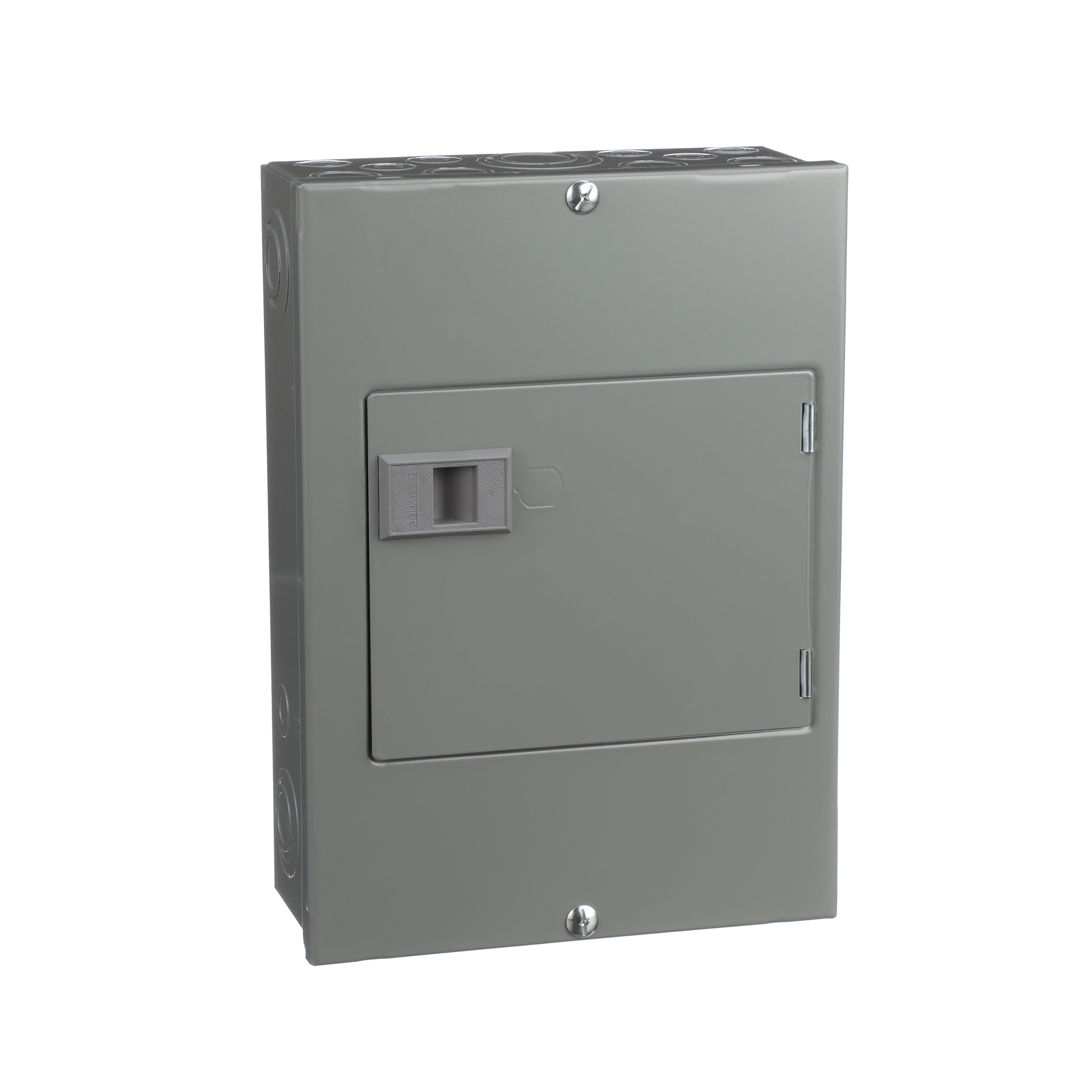

Square D™ QO48M30DSGP Convertible Load Center, 120/240 VAC, 30 A, 8 Pole, 10 kA Interrupt
Single Phase Main Breaker Load Centers
34870
MFG #: QO48M30DSGP
Square D™
563.00000
/ ea
Square D QO48M30DSGP LOADCTR QO MB GEN PANEL 240V 30A 1PH 4SP,#14 to 8 AWG(Al/Cu),1 phase,10 kA,120/240 Vac,3-Wire,30 A,Designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.,NEMA 1,QO load center,Surface (with door),UL Listed,convertible mains - breaker
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8069886360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_0N8G1TKZSW3UIV5A.zip(Brochure URL)
- Brochure URL - 11003_8X6QAZPCNI9RHGEK.zip(Brochure URL)
- Catalog 1 URL - Square_D_QO11224L125G_Catalog.pdf(Catalog 1 URL)
- Catalog URL - IDW_DOCUMENT_418351a0c169b39c8b07e0e57bb2dda631f61cac8df986423bf48ea1333409c5.pdf(Catalog URL)
- Compliance Cert URL - Square_D_QO48M30DSGP_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3051.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_40FRSBOTE13WC9ZQ.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_T7QWBK2Y594GCUH3.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_BYKUAWGIODTSMR4L.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_XSTZ5EN2H0K1BIFV.zip(Tech Drawing URL)
- Applications
- Features
DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. |
FIXED MAINS (BACK-FED MAIN BREAKERS),TIN PLATED ALUMINIUM BUSBAR |
Aluminum bus construction on fixed mains panels |
Tin plated 1-piece copper bus helps prevent corrosion and ensures superior performance |
Service entrance equipment capable panels |
Split neutral bars for neat wiring |
Top or bottom feed by rotating convertible mains panels 180 deg |
Single captive screw interior mounting on indoor panels to ease removal |
Straight-in wiring to help minimize service cable installation |
Side hinge doors on outdoor convertible main panels |
Baked enamel gray surface finish |
Multiple ground bar locations to customized the panel to your needs |
Backed-out screws on neutral, ground a and twin and quad breaker terminals |
Factory removed main breaker knockout |
Low profile busbars and insulated shielding improved safety and protection |
Flexible and convenient main and branch breaker knockouts |
Spring loaded self-adjusting surface/flush trim reduces installation time |
