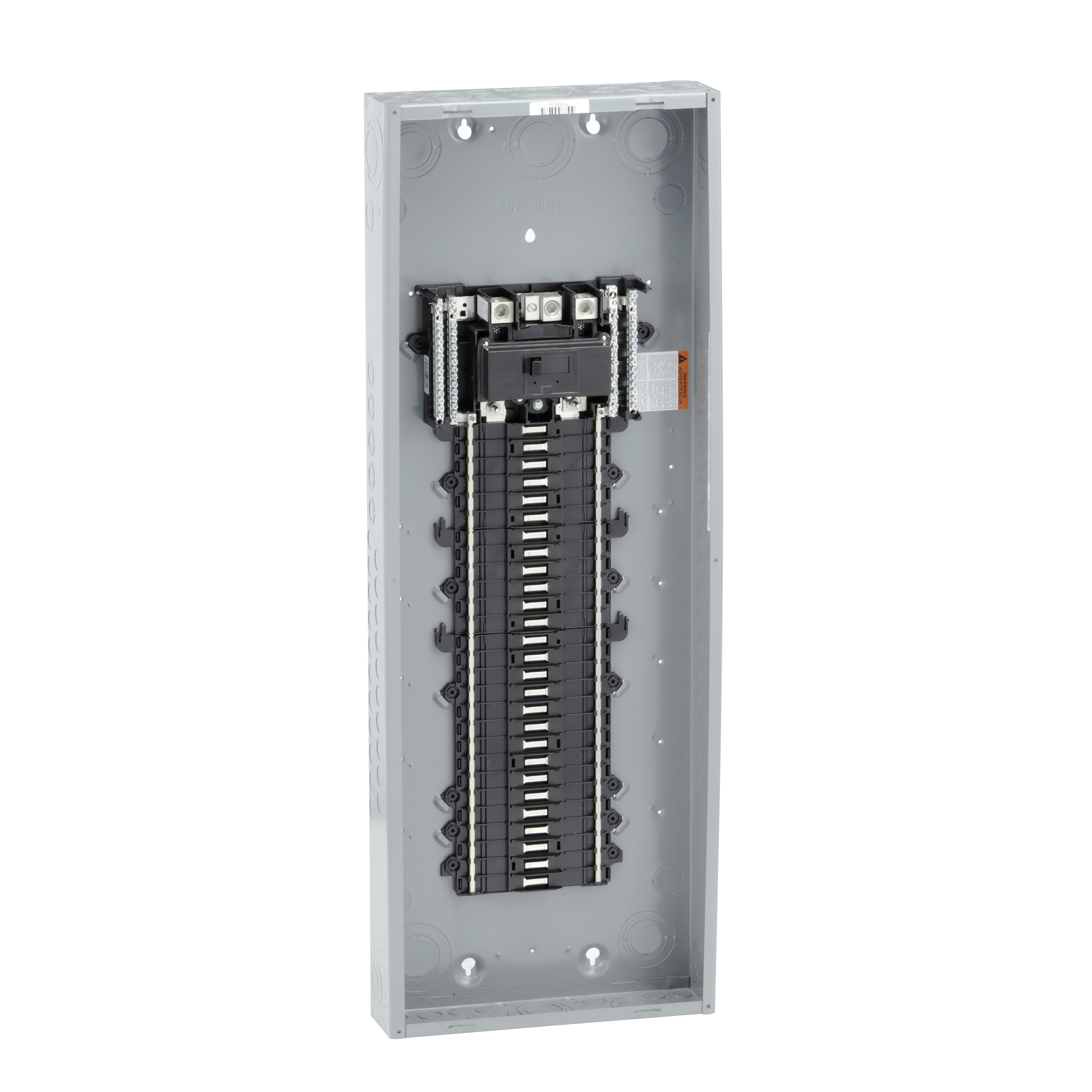

Square D™ QO154M200P QO® Single Phase Main Breaker Load Center, 120/240 VAC, 200 A, 1 Pole, 22 kA Interrupt
Single Phase Main Breaker Load Centers
723528
MFG #: QO154M200P
Square D™
1496.60000
/ ea
Square D QO154M200P QO PLUG-ON NEUT LC N1 1PH MB 240 V 200A,1 phase,120/240 V AC,120/240 V AC,22 kA,200 A,3-wire,Load Center,NEMA 1,No Cover,PoN Convertible Mains (breaker),QO,QO,Residential,UL Listed,surface mount
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8016273360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=QO154M200P(3D Rendering URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_418351a0c169b39c8b07e0e57bb2dda631f61cac8df986423bf48ea1333409c5.pdf(Catalog URL)
- Compliance Cert URL - Schneider_Electric_HOMVP5_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=PWFDS-SYRS-0057.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_40FRSBOTE13WC9ZQ.pdf(Install Instructions 1 URL)
- Install Instructions URL - files?p_Doc_Ref=S1B33894(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_0256M7NRY1CQK4VU.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_6EMN7KUZQHBL35FC.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_M72U9JL8YFA1DZON.zip(Tech Drawing URL)
- Video - https://www.youtube.com/embed/Iu4hcYgb5sw(Video)
- Warranty URL - 11003_PVC2OT0S4FZHR6LN.pdf(Warranty URL)
- Applications
- Features
| RESIDENTIAL |
| MAIN BREAKER,TIN PLATED COPPER BUSBAR |
| Tin plated aluminum bus construction on main lug or main circuit breaker panels |
| Shielded 1-piece tin plated copper bus construction on convertible mains panels, an industry exclusive for protection and performance |
| Service entrance equipment capable panels |
| Split branch neutral for clutter-free wiring |
| Top or bottom feed by rotating convertible mains panels 180 deg |
| Single captive screw interior mounting on indoor panels to ease removal |
| Straight-in wiring to help minimize service cable installation |
| Side hinge doors on outdoor convertible main panels |
| Gray baked enamel electrodeposited over cleaned, phosphatized steel |
| Outdoor panel covers are lockable with padlock |
| 0 tandem circuit breaker |
