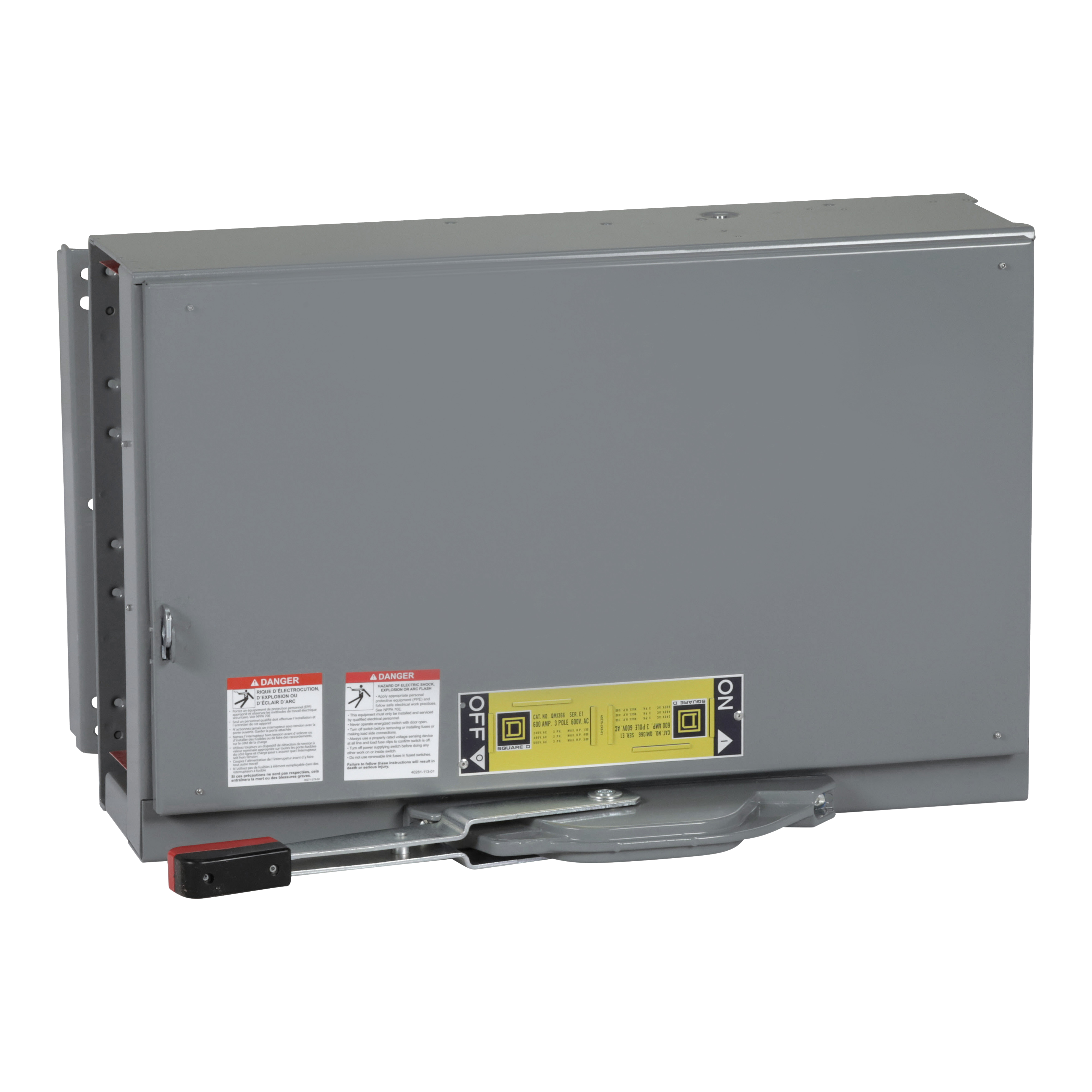

Square D™ QMJ366 Fusible Single Branch Switch Unit, 600 VAC, 600 A, 500 hp, Single Throw Contact, 3 Poles
Panel Board Disconnects
1275792
MFG #: QMJ366
Square D™
7116.94000
/ ea
Square D™ Branch Switch Unit, Fusible Single, Series: QMJ, 600 VAC, 600 A, 500 hp, 3 ph, 3 Pole, 200 kA Short Circuit, Single Throw Contact Form, Handle Actuator, NEMA 1 Enclosure, Panel/Rail/Surface Mounting, Lug Terminal, 15 in H Dimensions, Steel
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8085827360Den&ext=webp(360 Degree View URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_R85I9J7QG3ME4W2C.pdf(Spec Sheet URL)
- Brochure URL - 57baed0a0a89079054cc3a9ae9c9446a64e4290e.pdf(Brochure URL)
- Applications
- Features
| For panelboards and switchboards to provide a means for disconnecting a load from its source, open and close a circuit and to provide overcurrent and short circuit protection |
| FUSIBLE DISCONNECT |
| Positive lock-off means with provisions for three 3/8 in shackle padlocks |
| Dual cover interlock |
| Red and black operating handle and large ON/OFF nameplate clearly identifies the position of the switch blades |
| Hasp on the switch door latch mechanism to lock the switch door |
| Mounting brackets are permanently attached to the switch enclosure |
| Provides positive identification of the position of the switch blades |
| Convenient aid for removing fuses |
| Accepts either copper or aluminum wire |
| Without electrical interlock |
