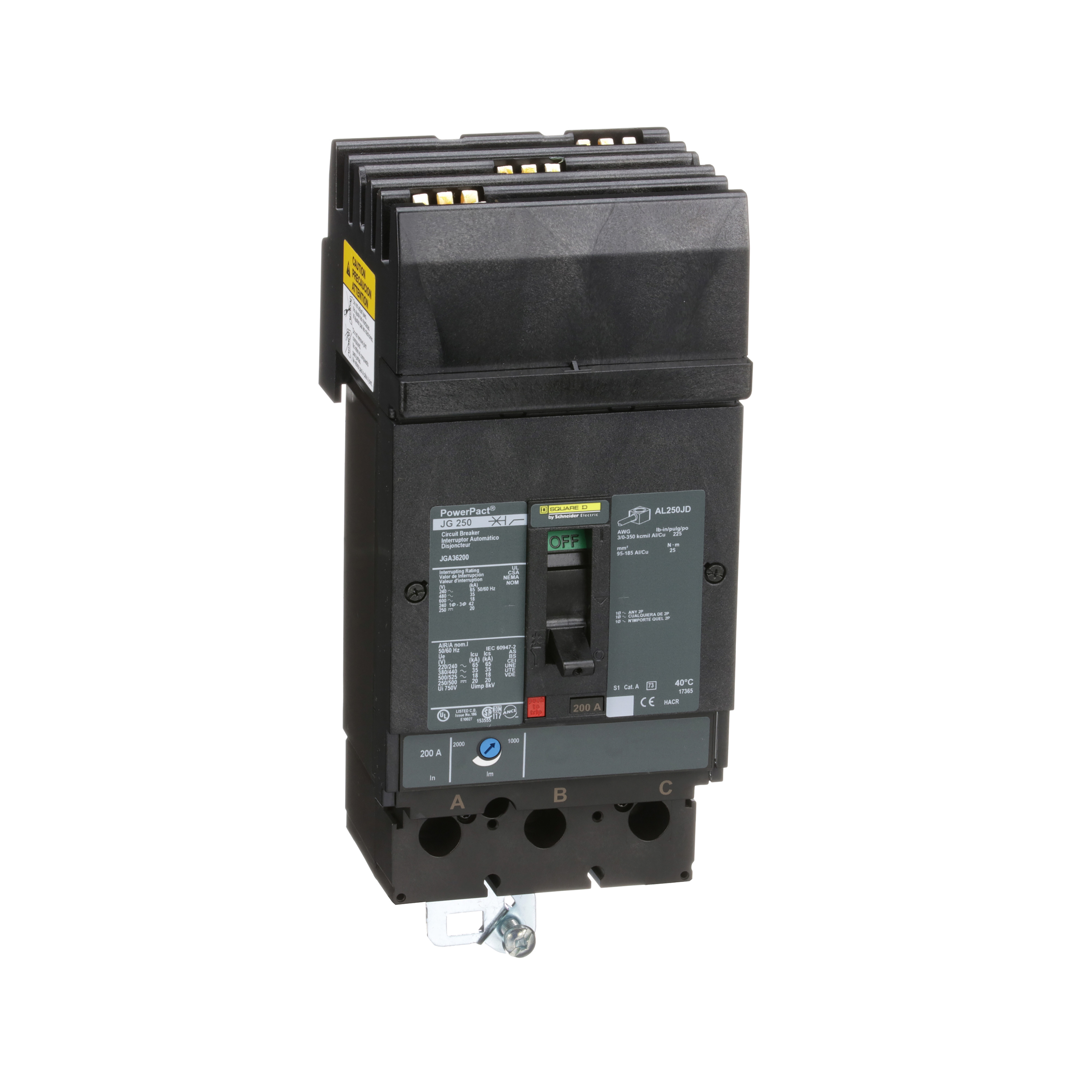

Square D™ PowerPact™ JGA36200 Molded Case Circuit Breaker, 600 VAC/250 VDC, 200 A, 18/20/35/65 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
240049
MFG #: JGA36200
Square D™
2291.50000
/ ea
Square D JGA36200 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 200A,-13F and 158F (-25 C and +70 C),200A,3,50/60Hz,600 Vac/250 Vdc,65kA240VAC - 35kA480VAC - 18kA600VAC - 20kA250VDC,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,J-Frame,Low 1000A - High 2000A,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
- 360 Degree View URL - index.html?pid=11003&id=8046786360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=JGA36200(3D Rendering URL)
- Compliance Cert URL - Square_D_JGA36200_Compliance_Certificate.pdf(Compliance Cert URL)
- Catalog URL - IDW_DOCUMENT_86e26fd7091d91eac4712e605cbef2835e4eb44b75b1f59c013fd6082b480e4e.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=JGA36200_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Drawing URL - 11003_SXJZNYKW3M8VO7CU.zip(Tech Drawing URL)
- Spec Sheet URL - 11003_WG50FKCQLEV2A3B1.pdf(Spec Sheet URL)
- Spec Sheet 1 URL - Square_D_JGA36200_Specification_Sheet.pdf(Spec Sheet 1 URL)
- User Manual URL - 11003_X4QGCHKPU1SLW5TD.pdf(User Manual URL)
- Service Manual URL - 11003_Z7TW5GLP40EVI8H2.pdf(Service Manual URL)
- Line Drawing URL(Line Drawing URL)
- Install Instructions URL - Square_D_JDA36150_Installation_Instructions.pdf(Install Instructions URL)
- Video - https://www.youtube.com/embed/wCXL5fqf9PE(Video)
- Video - https://youtube.com/embed/65pcjiB4F1U(Video)
- Applications
- Features
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| 20 kA at 500 VDC, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating |
| 1000 A hold, 2000 A trip current |
| I-Line® connection (On end) - lugs (Off end) ABC |
| 3/0 AWG to 350 kcmil aluminum copper wire |
| Standard |
