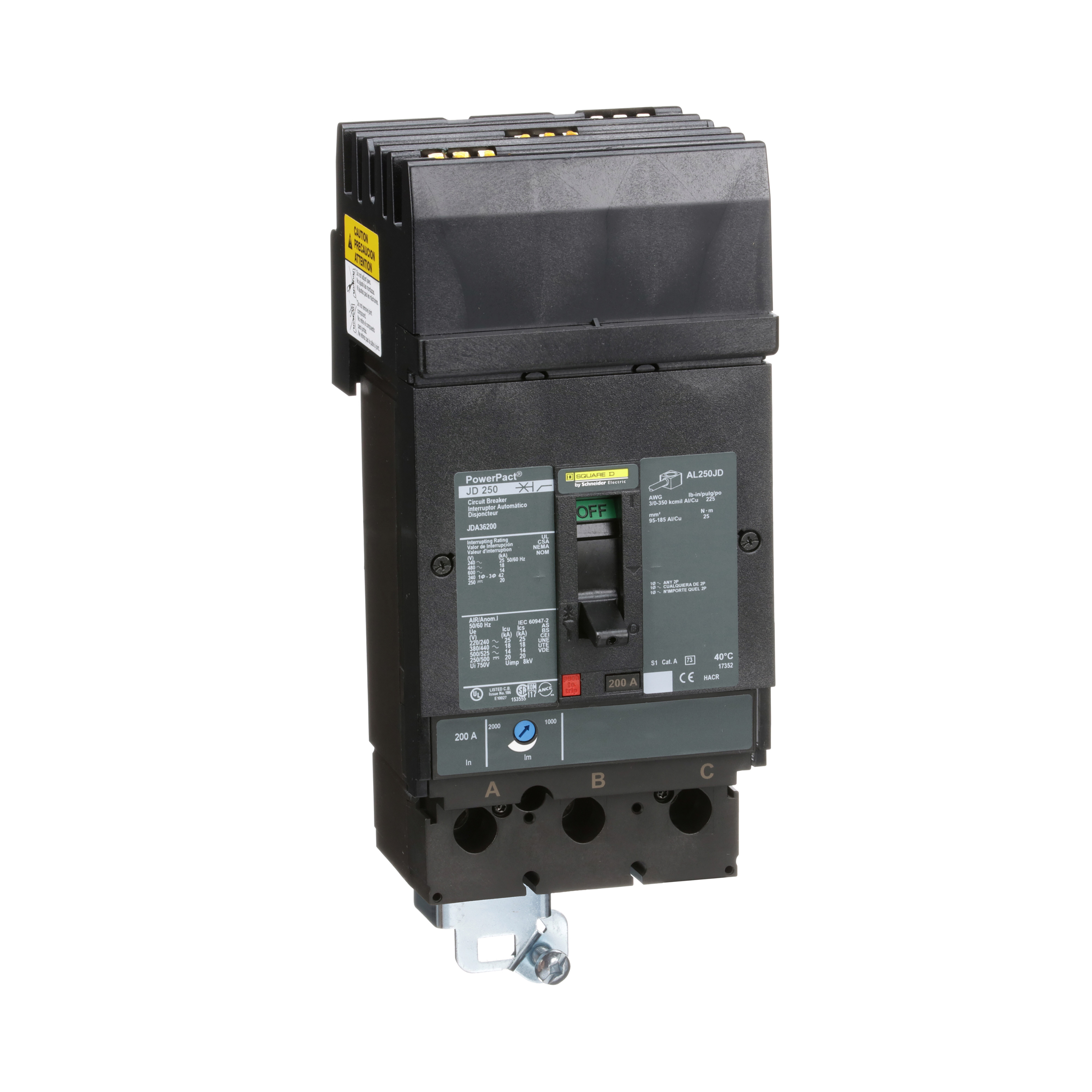

Square D™ PowerPact™ JDA36200 Molded Case Circuit Breaker, 600 VAC/250 VDC, 200 A, 14/18/20/25 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
228385
MFG #: JDA36200
Square D™
1244.10000
/ ea
Square D JDA36200 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 200A,-13F and 158F (-25 C and +70 C),200A,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,3,50/60Hz,600 Vac/250 Vdc,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,J-Frame,Low 1000A - High 2000A,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC
- 360 Degree View URL - index.html?pid=11003&id=8084854360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=JDA36200(3D Rendering URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=JDA36200_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_86e26fd7091d91eac4712e605cbef2835e4eb44b75b1f59c013fd6082b480e4e.pdf(Catalog URL)
- Compliance Cert URL - Square_D_JDA36200_Compliance_Certificate.pdf(Compliance Cert URL)
- Spec Sheet 1 URL - Square_D_JDA36200_Specification_Sheet.pdf(Spec Sheet 1 URL)
- User Manual URL - 11003_2BJ69C04G7FEHRNX.pdf(User Manual URL)
- Video - https://youtube.com/embed/65pcjiB4F1U(Video)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_Z7TW5GLP40EVI8H2.pdf(Service Manual URL)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=JDA36200_2D+Sales+Drawing.pdf(Tech Drawing URL)
- Spec Sheet URL - 11003_XKDAMHU8GZPIET0L.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/GHPCn0u1IUE(Video)
- Applications
- Features
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| 20 kA at 250 VDC, 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC interrupt rating |
| 3/0 AWG to 350 kcmil |
| 1000 A hold, 2000 A trip current |
| I-Line® connection (On end) - lugs (Off end) ABC |
| Standard |
