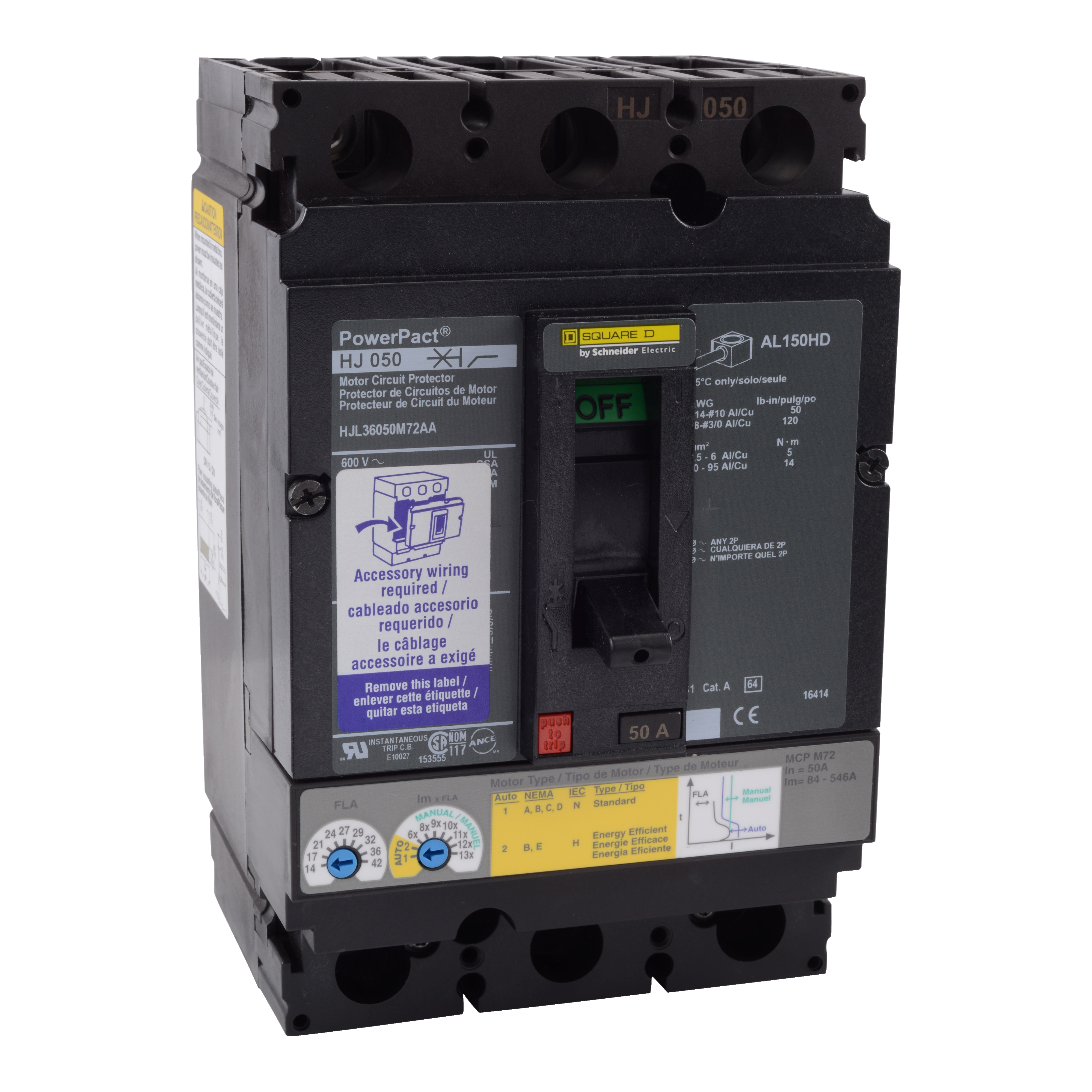

Square D™ PowerPact™ HJL36050M72AB Motor Circuit Protector, 600 VAC, 50 A, 25 Interrupt, 3 Poles, Electronic Trip
Motor Protection Circuit Breakers
PDW~11721535
MFG #: HJL36050M72AB
Square D™
1979.00000
/ ea
Square D™ PowerPact™ Motor Circuit Protector, 600 VAC, 50 A, 25 Interrupt, H Frame, Electronic Trip, 84 to 546 A Trip, 3 Poles, Line/Load Lug Connection, 2NO-2NC Auxiliary, 14 to 3/0 AWG Al/Cu Wire, NEMA AB1 Enclosure, 104 deg F, 4.36 in L x 4.12 in W x 6.4 in H Dimensions
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Install Instructions 1 URL - 11003_S06Z18T74FQY2WBN.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_OHXSF8E4N5AQMWR2.pdf(Service Manual URL)
- Service Manual URL - 11003_T6POCH3LUD9I1KN0.pdf(Service Manual URL)
- Spec Sheet URL - 11003_7A5OTFVZQP6KH40J.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_9UXPLAQ71E6F2BGM.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_VRP57W264AQSK31L.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_F4JI31DMLBWHXNGS.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_I7ZPF0H2NJ5VGSBD.pdf(Tech Drawing URL)
- User Manual URL - 11003_KMJFTUEYA5HS02OZ.pdf(User Manual URL)
- User Manual URL - 11003_X4QGCHKPU1SLW5TD.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/1PjFQgO_-Ik(Video)
- Applications
- Features
| Distribution |
| UNIT MOUNT |
| Common mounting holes, handle locations and trim dimensions across the range allow design standardization using PowerPact™ H and J-frame circuit breakers |
| Common accessories across the range of PowerPact™ molded case circuit breakers allow users to make late specification changes |
| A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility |
| Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications |
| IEC style rotary operating handles |
| NEMA 9421 door mounted rotary operating mechanism |
| NEMA 9422 flange mounted operating mechanism in two styles - bracket mounted or cable operated |
| Equipped with a unique snap-in terminal design that makes converting between busbar and lug options easy |
| Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields |
| Worldwide availability with unique global part numbers |
