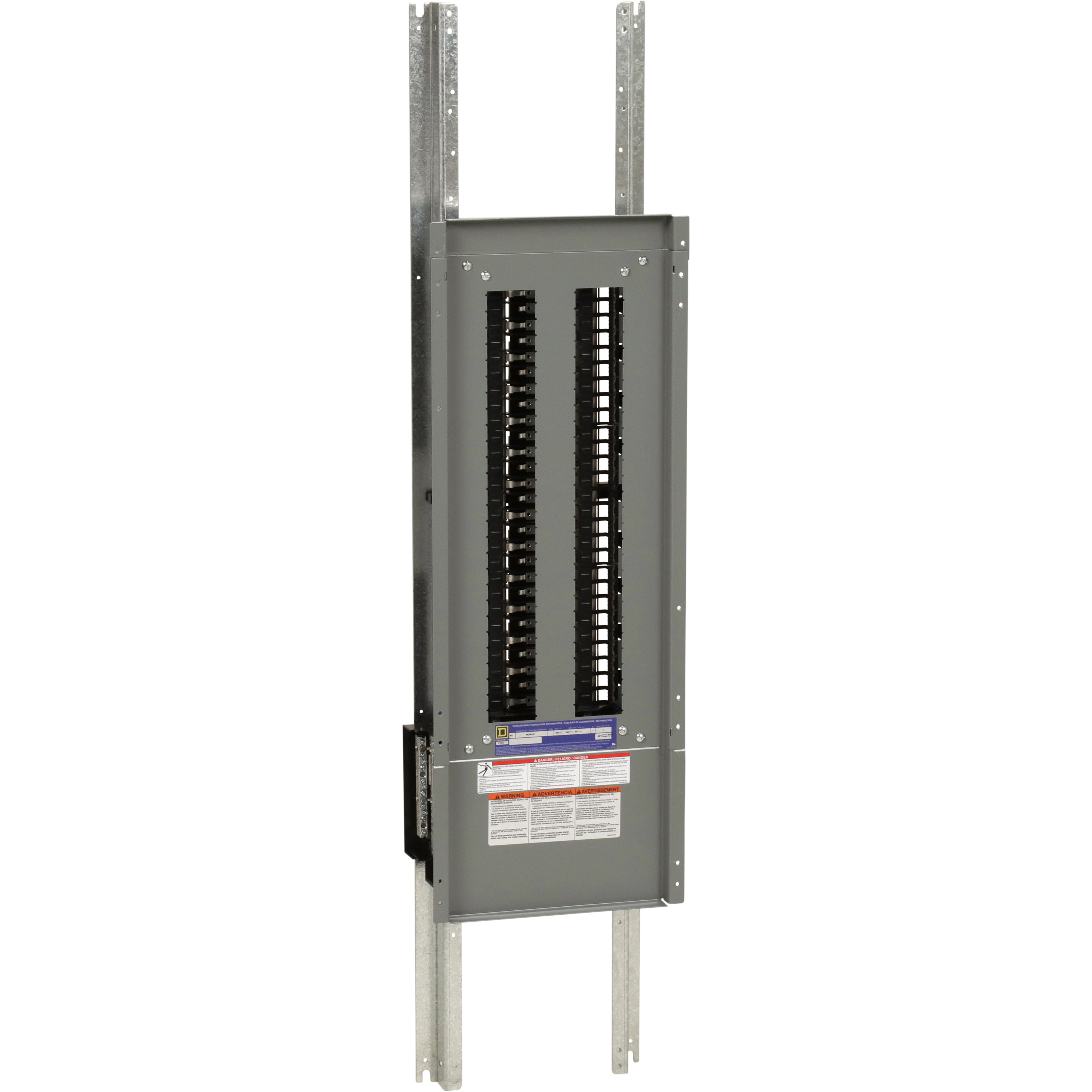

Square D™ NQ54L4C Merchandised Panelboard Main Lug Interior, 240 VAC/48 VDC, 400 A, 10/22/65 kA Interrupt, 54 Spaces
Panelboard Interiors
1158543
MFG #: NQ54L4C
Square D™
2055.00000
/ ea
Square D™ Panelboard Main Lug Interior, Merchandised, Series: NQ Series, 240 VAC/48 VDC, 400 A, 10/22/65 kA Interrupt, 54 Spaces, QHB/QOB-VH/QOB Breaker, 3 Wiring Configuration, Copper Bus, NEMA 1/3R/5/12 Enclosure
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=14891888360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_ISLGE185DNBPK07Y.pdf(Brochure URL)
- Brochure URL - 11003_Z0QH5B7CIXVJDUA9.pdf(Brochure URL)
- Install Instructions 1 URL - 11003_1H7O0M249ZPRQEL5.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_YI36JG1UZ8LWABSX.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_67E2D35XJPWV9KBO.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_6QG2OPNAFIY9CMVZ.pdf(Tech Bulletin URL)
- User Manual URL(User Manual URL)
- User Manual URL - 11003_4OPHZUT6J8L1YG7E.pdf(User Manual URL)
- Applications
- Features
| QOB;QOB-VH;QHB |
| NQ 1 phase panelboard 54 pole space interior, main lugs rated as 400A, 240VAC/48VDC |
| Tin-plated or thick silver plated copper bus is factory included option |
| Field-installable sub-feed lug kits are available for 100–400 A interiors |
| 200k AIR maximum when supplied by PowerPacT™ circuit breaker or remote Class J or T fuse (series rated) |
| Top- or bottom-feed interiors accept plug-on or bolt-on branch circuit breakers |
