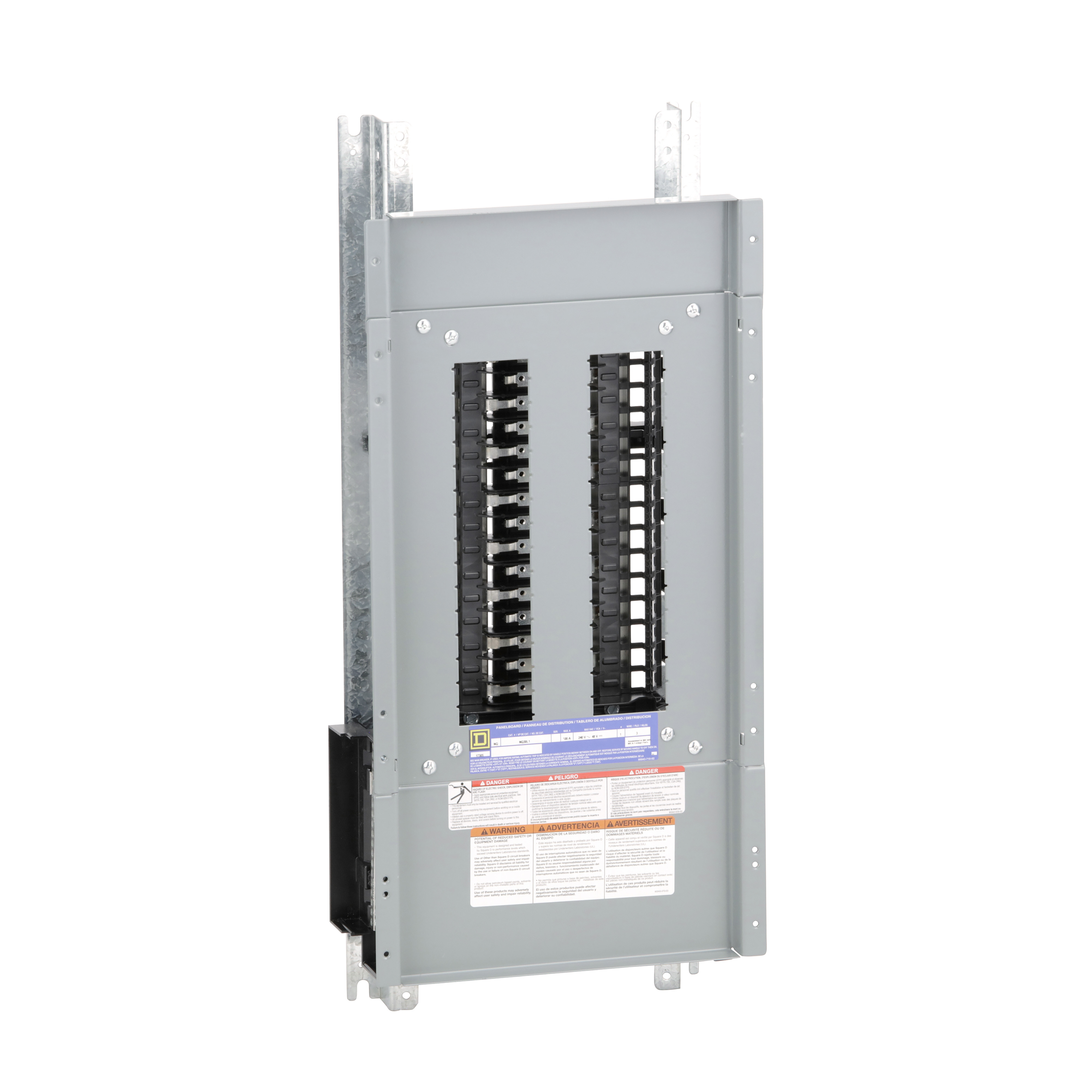

Square D™ NQ30L1 1-Phase Panelboard Interior, 240 VAC, 48 VDC, 100 A, 30 Spaces, 100000 A SCCR
Panelboard Interiors
436270
MFG #: NQ30L1
Square D™
945.00000
/ ea
Square D™ Panelboard Interior, 1-Phase, Series: NQ Series, 240 VAC, 48 VDC, 100 A, 30 Spaces, 100000 A Short Circuit, HD/HG/HJ/HL Breaker, 3-Wire Wiring Configuration, Tin Plated Aluminum Bus, Panel Mounting, NEMA 1/3R/5/12 Enclosure, Aluminum Housing Material, 20 in W x 5-3/4 in D x 32 in H Dimensions
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=9889480360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=NQ30L1(3D Rendering URL)
- Brochure URL - 11003_ISLGE185DNBPK07Y.pdf(Brochure URL)
- Brochure URL - 11003_Z0QH5B7CIXVJDUA9.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - 02e492ee1e74bbb33bd4108d3ca5589e6852e547.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_1H7O0M249ZPRQEL5.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_8GIS4K0JUZD17T5M.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_67E2D35XJPWV9KBO.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_6QG2OPNAFIY9CMVZ.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_1PMXWDS23U4KYFB8.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_BKD5W3ZH82A0RE9Q.zip(Tech Drawing URL)
- User Manual URL - 11003_4OPHZUT6J8L1YG7E.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/eviOlXT8Qmg(Video)
- User Manual URL(User Manual URL)
- Applications
- Features
| Lighting and Distribution Applications |
| Accepts plug-on and bolt-on circuit breaker |
| 20 in W enclosure |
| Main lugs only |
