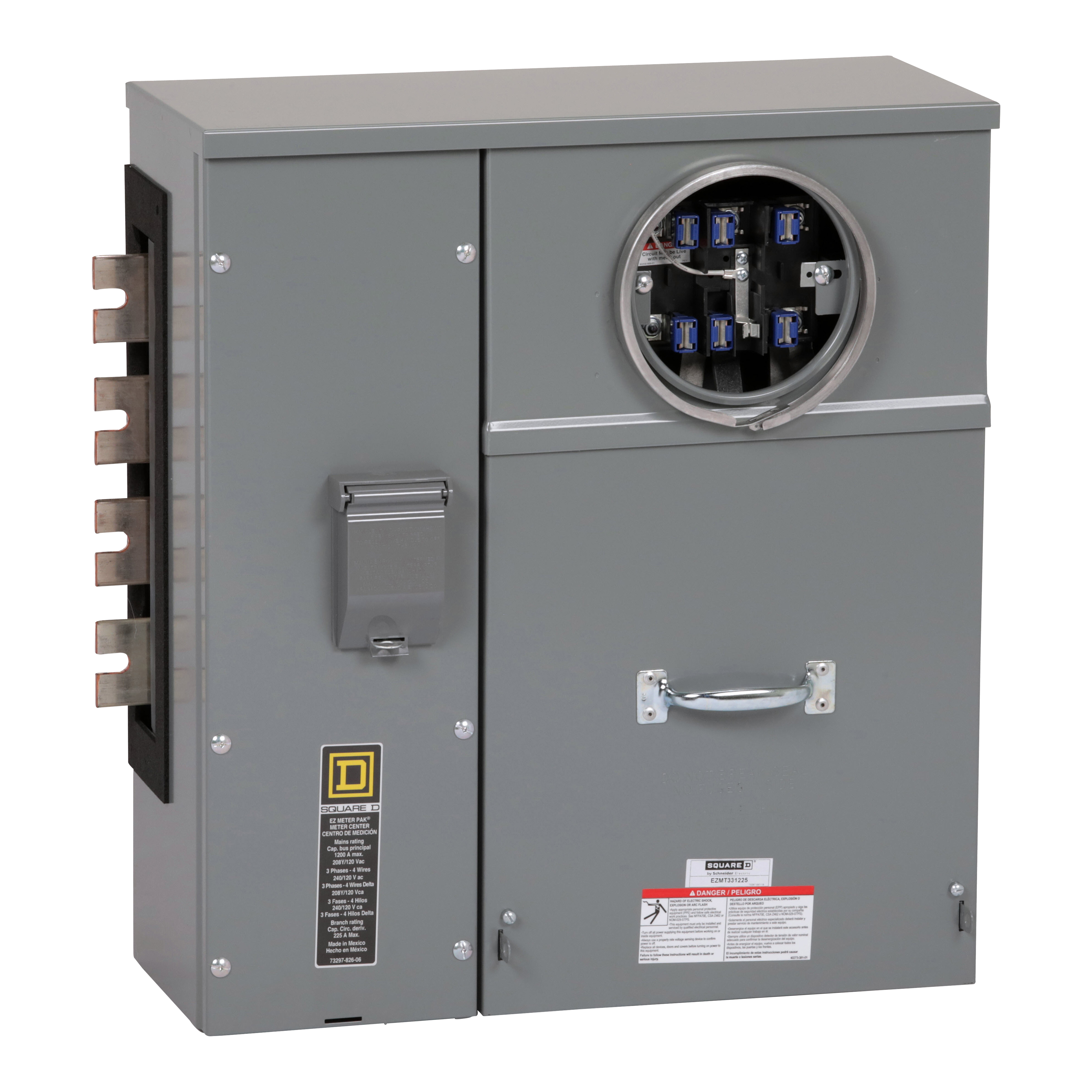

Square D™ Meter-Pak™ EZMT331225 1-Position 4-Wire Meter Center Branch Unit With Test Block Bypass, 3-Pole Branch Circuit Breaker, 208Y/120 VAC, 240/120 Delta VAC, 225 A, 3 Phase, NEMA 3R Enclosure
Meter Sockets - Single Position
1214467
MFG #: EZMT331225
Square D™
3938.00000
/ ea
Square D™ Meter-Pak™ Meter Center Branch Unit, 1-Position 4-Wire, Series: EZM, 208Y/120 VAC, 240/120 Delta VAC, 225 A, 3 ph, Overhead/Underground Feed, 7 Jaws, 4 AWG to 300 kcmil Cu/Al, 12 to 2/0 AWG Al, 14 to 2/0 AWG Cu Wire, Ring Cover, Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 25.12 in H x 22.42 in W x 9.38 in D Dimensions
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8127750360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3278.dwg(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3278.dxf(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_AFT3MYZEJN1SB2R9.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_M3LAE7XBIC52O9KJ.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_YS90H6OJ1IA3KETD.zip(Tech Drawing URL)
- Features
| TEST BLOCK BYPASS RING TYPE |
| Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit |
| To suit individual applications, residential and commercial devices may be interconnected |
| Basic devices for connection to 3 phase 4-wire 120/208 VAC service are factory phase balanced to save installation time |
| The phase balancing may be modified in the field to meet most system variations |
| Aluminum horizontal cross busbar |
| 4 AWG to 300 kcmil copper/aluminum neutral/service ground, 12 to 2/0 AWG aluminum, 14 to 2/0 AWG copper grounding wire |
| Ring type test-block bypass EUSERC |
