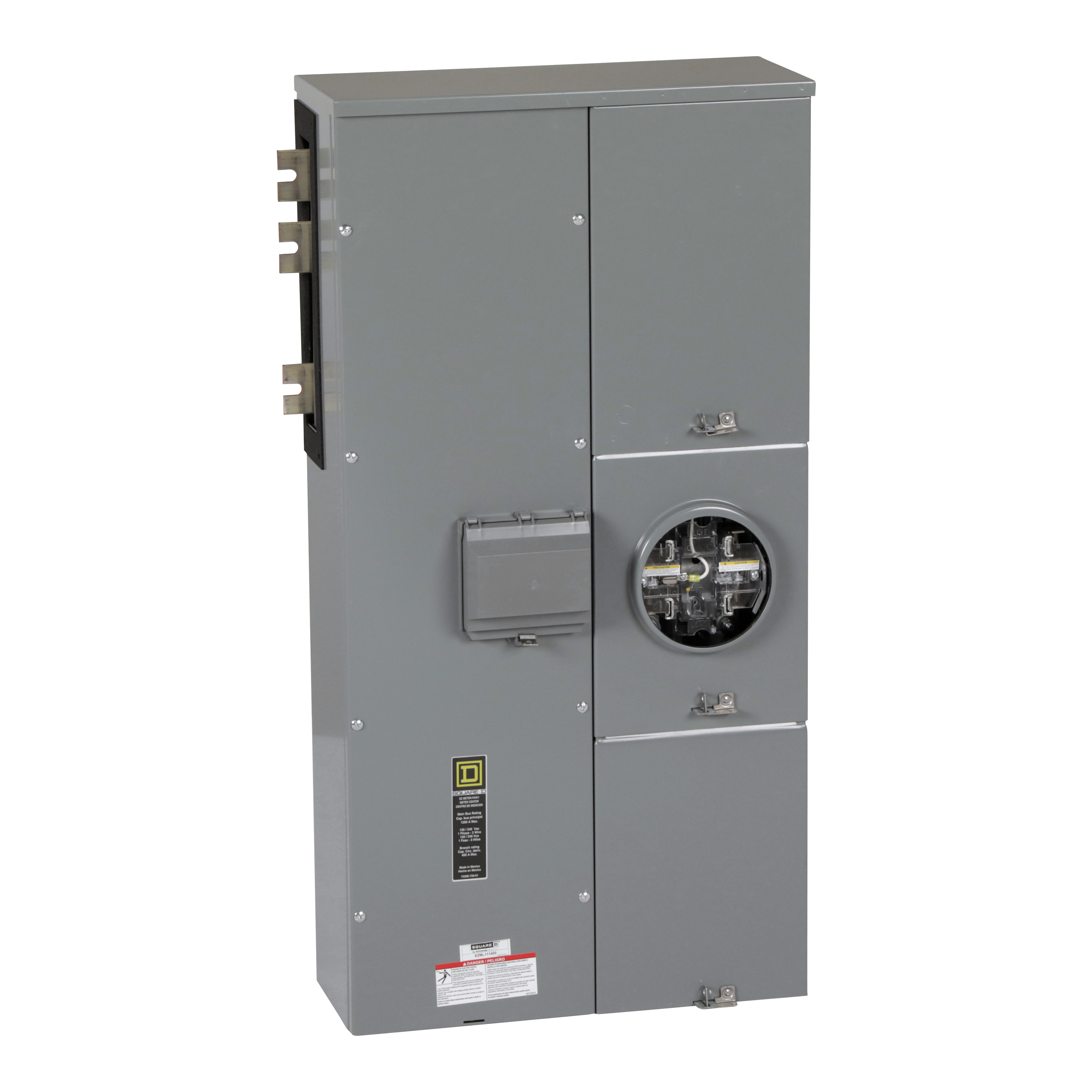

Square D™ Meter-Pak™ EZML111400 3-Wire 1-Gang Meter Center Branch Unit With Lever Bypass, 400 A Type LJL Circuit Breaker, 120/240 VAC, 400 A, 1 Phase, NEMA 3R Enclosure
Meter Sockets - Single Position
1128911
MFG #: EZML111400
Square D™
2556.63000
/ ea
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8119582360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3341.dwg(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3342.dwg(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_F2LI0JXGR7SKMAZB.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_A4D8YJCQFXNBRS2L.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_D1VT0WHZQNX6UBGA.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_1CI0V9AMNULF4572.zip(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=3341.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_UVE0O914PKAIRBM8.zip(Tech Drawing URL)
- Features
| Copper busbar |
| Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit |
| To suit individual applications, residential and commercial devices may be interconnected |
| Basic devices for connection to 3 phase 4-wire 120/208 VAC service are factory phase balanced to save installation time |
| The phase balancing may be modified in the field to meet most system variations |
| Aluminum horizontal cross busbar |
| 1/0 AWG to 250 kcmil cable 2, 1/0 AWG to 600 kcmil cable 1 neutral/service ground, 4 AWG to 300 kcmil equipment ground lug |
