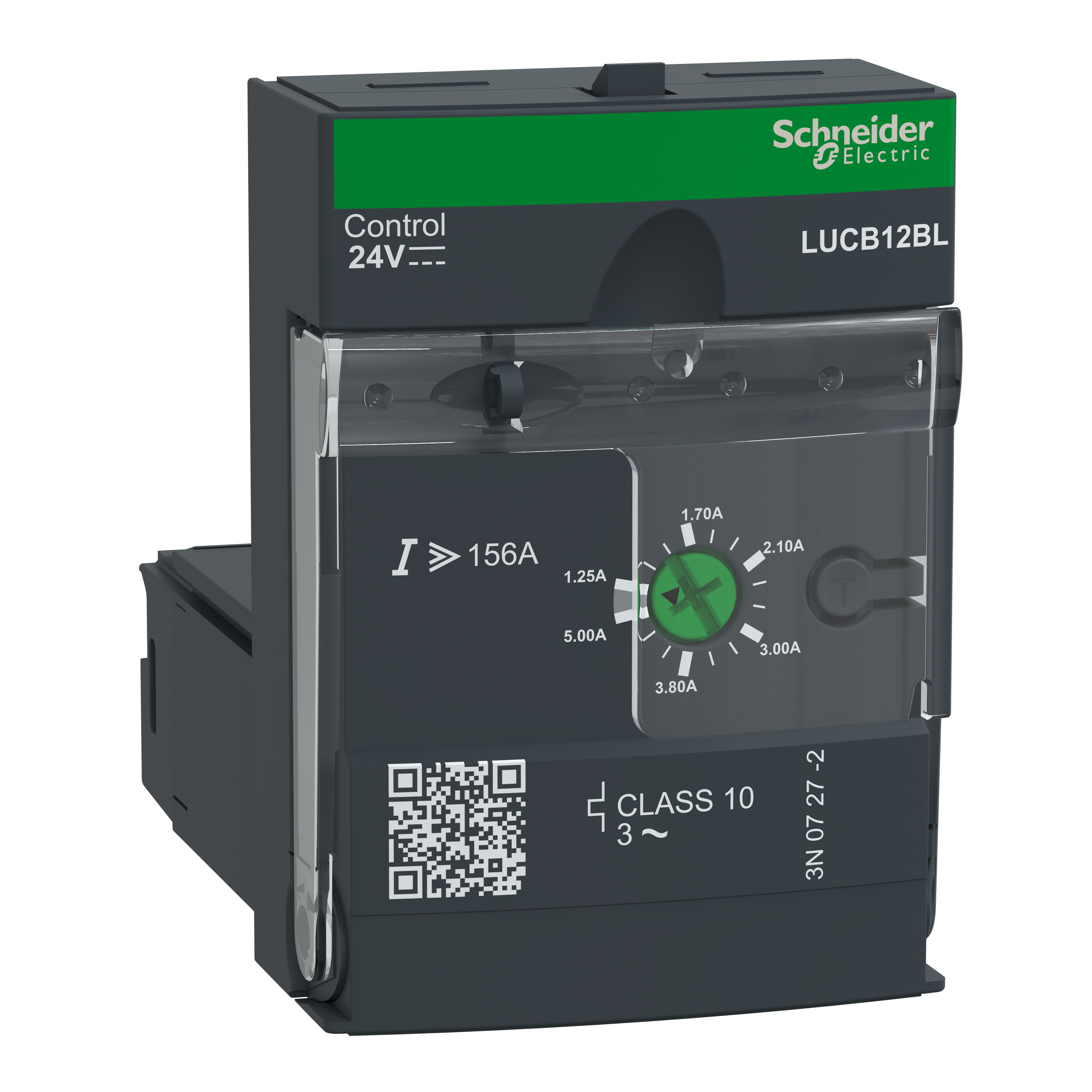

Square D™ LUCB12BL LUCB Class 10 Advanced Control Unit, 24 VDC Coil, IP20/IP40 Enclosure
Combination Starters
443525
MFG #: LUCB12BL
Schneider Electric
150.00000
/ ea
Schneider Electric LUCB12BL ADV.CNTRL.UNIT-CL10-3PH 3-12A 24VDC,-25...70 deg.C,24 Vdc,3-Phase,3...12 A,600 V conforming to CSA C22.2 No 14-600 V conforming to UL 508-690 V conforming to IEC 60947-1,IP20 front panel and wired terminals conforming to IEC 60947-1-IP20 other faces conforming to IEC 60947-1-IP40 front panel outside connection zone conforming to IEC 60947-1,LUCB,advanced control unit,earth fault protection-protection against overload and short-circuit-manual reset-protection against phase failure and phase imbalance,LUFW10-LULC031-LULC033-LULC07-LUFV2-LUFN..-LULC08-LULC15-LULC09-LUFC00-LUFDA01-LUFDA10-LUFDH11-ASILUFC51-ASILUFC5,basic protection and advanced functions, communication,Solid State (Class 10),TeSys,TeSys U,front side,plug-in
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8092557360Den&ext=webp(360 Degree View URL)
- Brochure URL - 1dd055d407a404cf0573a71104eb1e47aed1cd07.pdf(Brochure URL)
- Catalog URL - Schneider_Electric_LUCB12BL_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=SB115122_2D-front.dxf(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=SB115122_3D-simplified.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_5I2W3TPE0MY97HLQ.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL(Service Manual URL)
- Service Manual URL - 11003_3B1E5RC6VPAZK927.pdf(Service Manual URL)
- Service Manual URL - 11003_JHS6EQNR12OILVXA.pdf(Service Manual URL)
- Spec Sheet 1 URL - SquareD_LUCB12BL_Datasheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_EXQHTKI6ZVWSB890.pdf(Spec Sheet URL)
- Tech Drawing URL - 3b250a6664f89076006b8f4ca15eca9c15517edb(Tech Drawing URL)
- Video - https://youtube.com/embed/jpYkJKEWBas(Video)
- Video - https://youtube.com/embed/OaomPiHOkYk(Video)
- Applications
- Features
| Motor control;motor protection |
| MANUAL RESET-PROTECTION AGAINST PHASE FAILURE AND PHASE IMBALANCE-PROTECTION AGAINST OVERLOAD AND SHORT-CIRCUIT-EARTH FAULT PROTECTION |
| -40 to 85 deg C storage temperature |
| 130/220/60/80 mA consumption current |
| Plug-in mounting mode |
| 20 to 27 VAC control circuit voltage limits |
| Protection against phase failure and phase imbalance |
| Protection against overload and short-circuit |
| Earth fault protection |
| -25 to 70 deg C operating temperature |
