Square D™ I-Line™ PowerPact™ JDA262254 Type JDA Molded Case Circuit Breaker, 600 VAC/250 VDC, 225 A, 2 Poles
Molded Case Circuit Breakers
PDW~6404786
MFG #: JDA262254
Square D™
3424.50000
/ ea

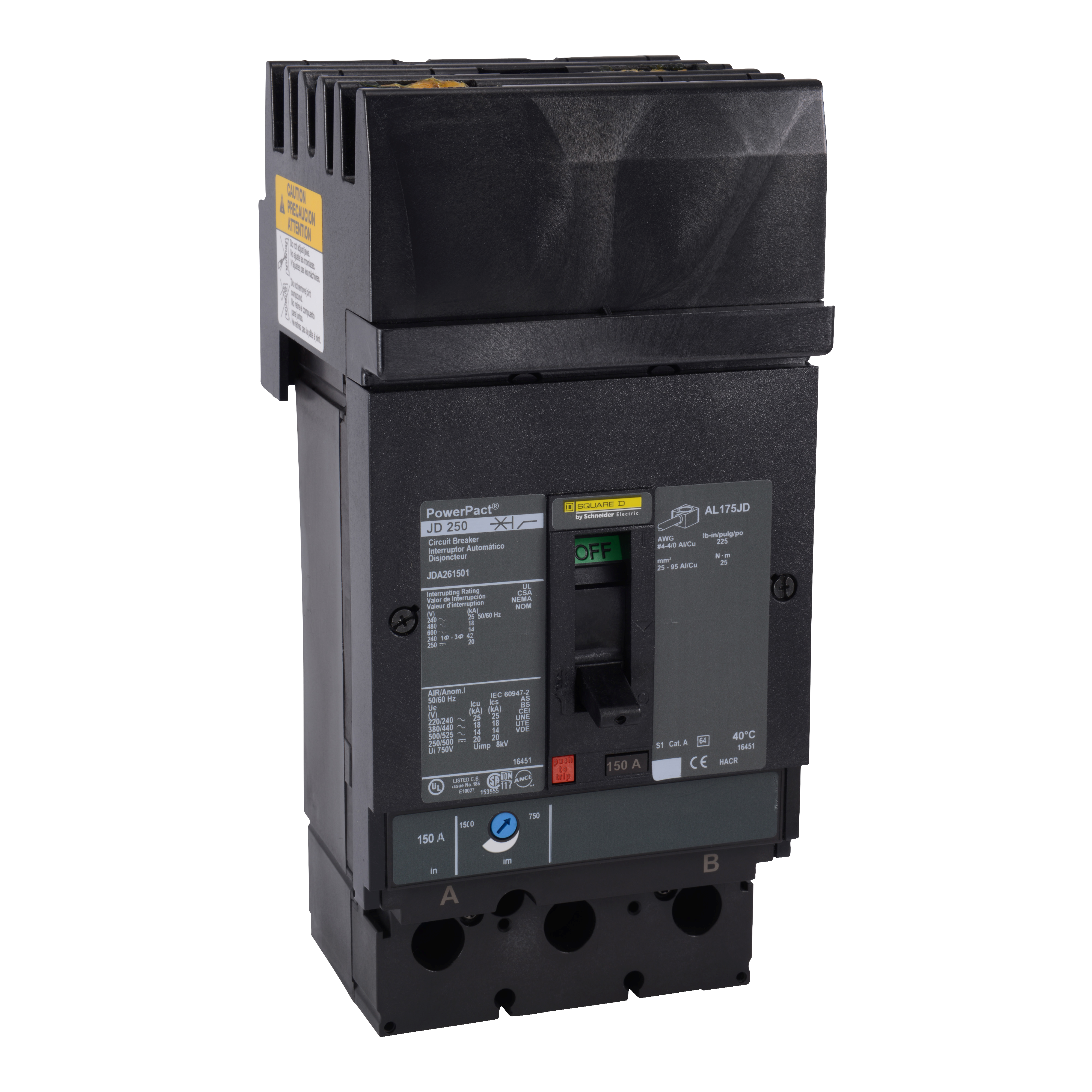

Square D™ I-Line™ PowerPact™ Molded Case Circuit Breaker, Type JDA, 600 VAC/250 VDC, 225 A, 50/60 Hz, 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250 VDC Interrupt, J Frame, Thermal Magnetic Trip, 1125 to 2250 A Trip, 2 Poles, 1-Phase, Line/Load Lugs, 3/0 AWG to 350 kcmil Al/Cu Wire, NEMA AB1, Plug-In Mount, 104 deg F, 11.48 in H x 4.48 in W x 5.87 in D
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Compliance Cert URL - Square_D_JDA261502_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=JDA262254_2D Bottom View.dwg(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=JDA262254_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_YV3EWLGDB1KPRFOZ.pdf(Service Manual URL)
- Service Manual URL - 11003_Z7TW5GLP40EVI8H2.pdf(Service Manual URL)
- Spec Sheet URL - 11003_YM2Q60GOL4WASVRP.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_BFDSCUWEA6K9QLRI.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_CKU5AF7YLZ9SWVGB.pdf(Tech Drawing URL)
- User Manual URL - 11003_E9IAMWVOKTCDJUNZ.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/8QrMlzB1bxs(Video)
- Applications
- Features
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE |
| Common mounting holes, handle locations and trim dimensions across the range allow design standardization for PowerPact™ H and J-frame circuit breakers |
| Common accessories across the range of PowerPact™ molded case circuit breakers allow users to make late specification changes |
| A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility |
| Equipped with a unique snap-in terminal design that makes converting between busbar and lug options easy |
| Easy to install, extremely versatile, a wide variety of terminal |
| Flexible and simple offer, with proven performance |
| Direct access to energy metering and energy efficiency |
