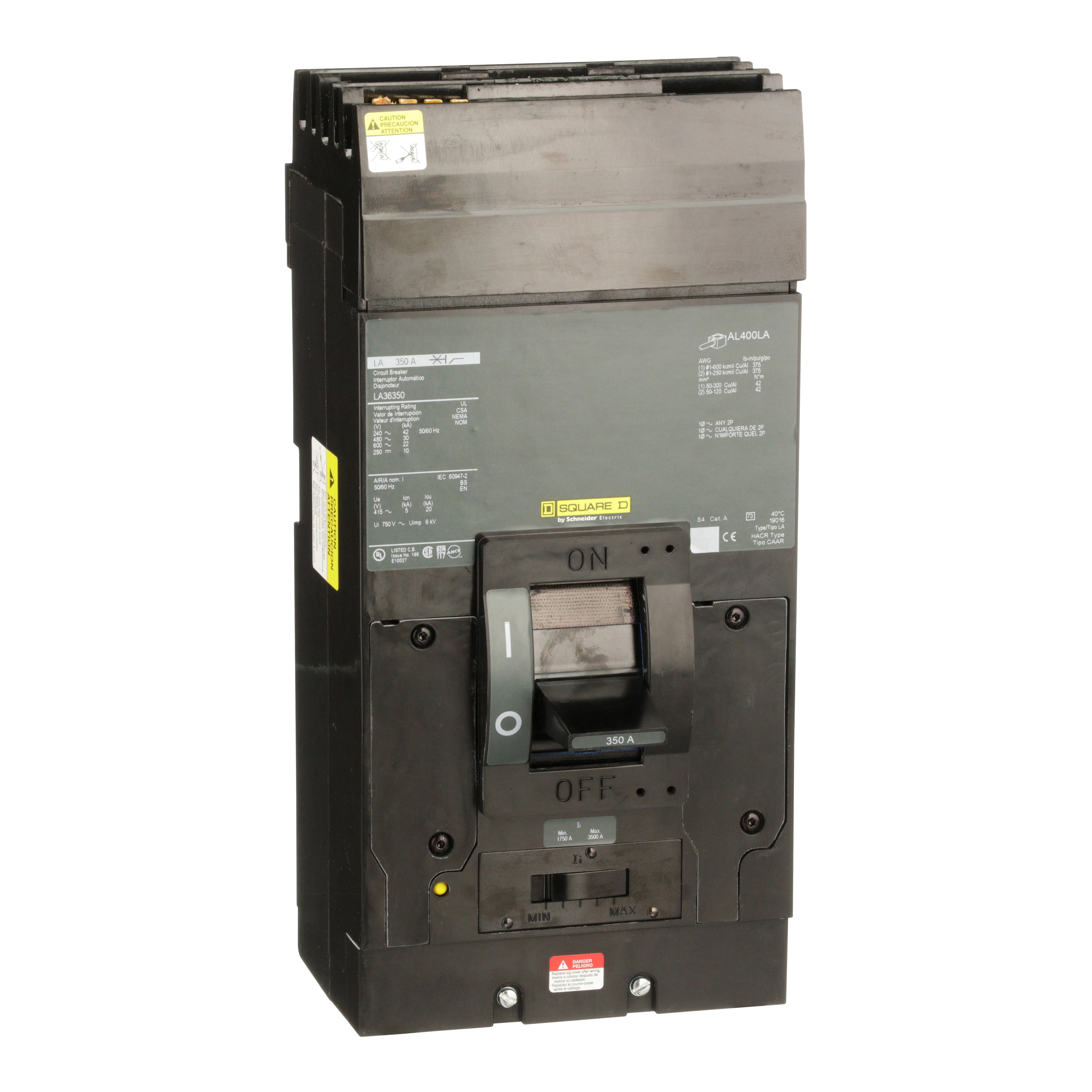

Square D™ I-Line™ LA36350 Type LA Standard Molded Case Circuit Breaker, 600 VAC/250 VDC, 350 A, 25 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
175994
MFG #: LA36350
Square D™
4898.64000
/ ea
Square D LA36350 MOLDED CASE CIRCUIT BREAKER 600V 350A,350 A,50/60 Hz,600 V,L-Frame,Molded Case Circuit Breaker,Thermal Magnetic
- 360 Degree View URL - index.html?pid=11003&id=8046072360Den&ext=webp(360 Degree View URL)
- Brochure URL - bb7c2421b4f912fab72f9d2f68712daf5ba160b8.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - fbde2441dd841ac3f68136256cbb33fb7c5101b9.pdf(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Catalog URL - Square_D_LA36225_Catalog.pdf(Catalog URL)
- Install Instructions 1 URL - 11003_I6V2BROH0S7GFUZM.pdf(Install Instructions 1 URL)
- User Manual URL - 11003_I2FG5HLETCJ8W1NO.pdf(User Manual URL)
- Spec Sheet URL - 11003_Z9RKYO845SBLUAFI.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_T71GVIMCHPO9NKAZ.pdf(Tech Drawing URL)
- Tech Bulletin URL - 11003_E31DYQAR924IXNFJ.pdf(Tech Bulletin URL)
- Features
| I-LINE |
| Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions |
| Thermal-magnetic circuit breakers use bimetals and electromagnetic assemblies to provide overcurrent protection |
| Their characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads |
| 42 kA at 240 VAC, 30 kA at 480 VAC breaking capacity |
