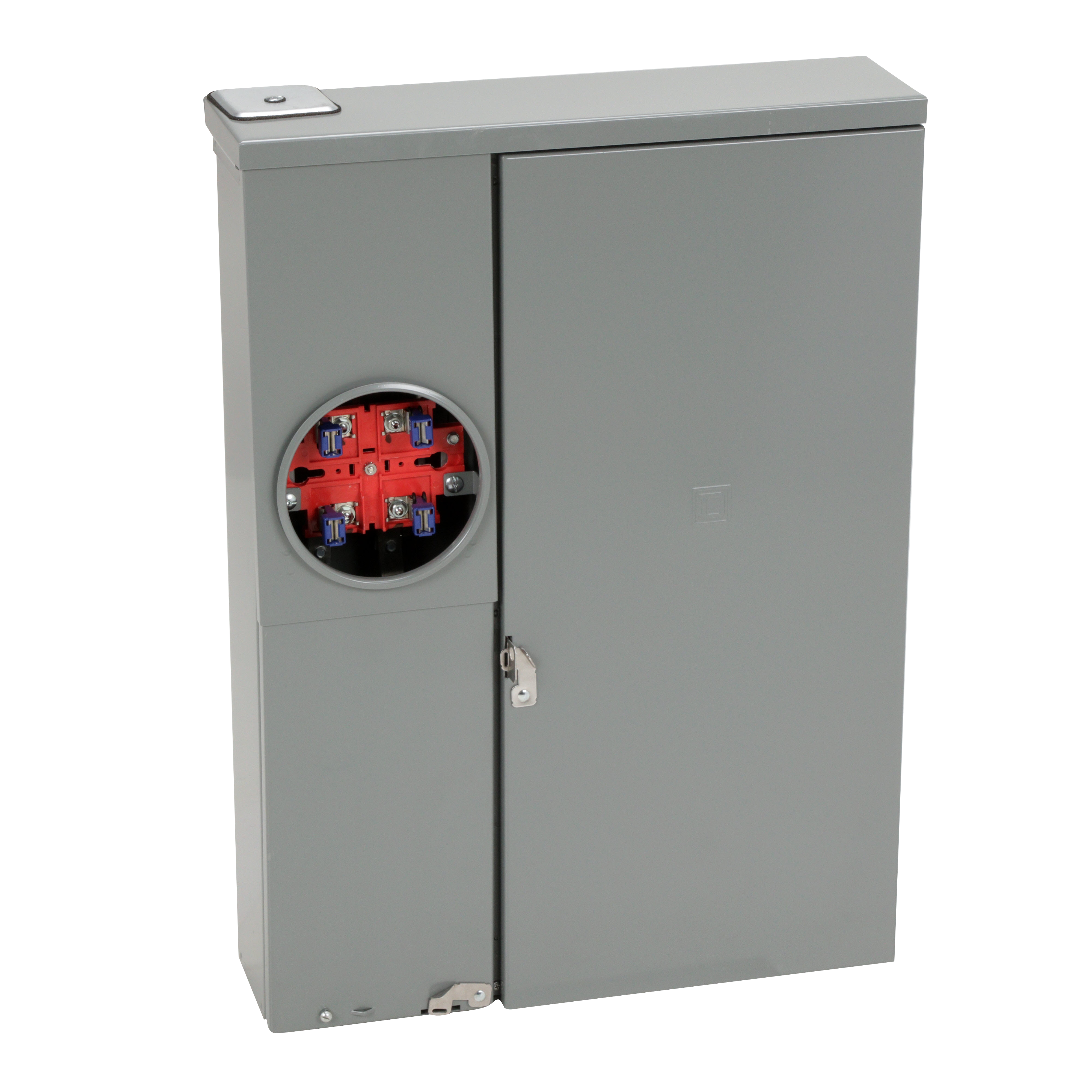

Square D™ Homeline™ SC12L200S 12-Circuit All-in-One Field Installed Rainproof Combination Service Entrance Meter Main, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Meter Mains
PDW~6416712
MFG #: SC12L200S
Square D™
1419.00000
/ ea
Square D™ Homeline™ Combination Service Entrance Meter Main, 12-Circuit All-in-One Field Installed Rainproof, 120/240 VAC, 200 A, 1 ph, Overhead/Underground Feed, 4 AWG to 250 kcmil, 12 to 2/0 AWG Wire, A-L Hub, 2-1/2 in Hub, Ring Cover, Line/Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 30.26 in H x 21.5 in W x 5.8 in D Dimensions
- 360 Degree View URL - index.html?pid=11003&id=8016182360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_SO0PM1XG7YE5Q2FK.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3189.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_KPZTCJHD4Y7N1XSE.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_PH4LRA735SNFVZTM.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_Q0F8UCHEGXO5PLTV.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_H86B4DZTL75NVISY.zip(Tech Drawing URL)
- Applications
- Features
| Residential Applications |
| NO BYPASS,RINGED |
| Multiple disconnect units can accommodate plug-on surge Breaker™ secondary surge arrester |
| Multiple disconnect units can be converted to semi-flush with addition of flange kit |
| 4 AWG to 250 kcmil aluminum/copper line side, 12 to 2/0 AWG aluminum/copper service ground lug |
| Without bypass |
