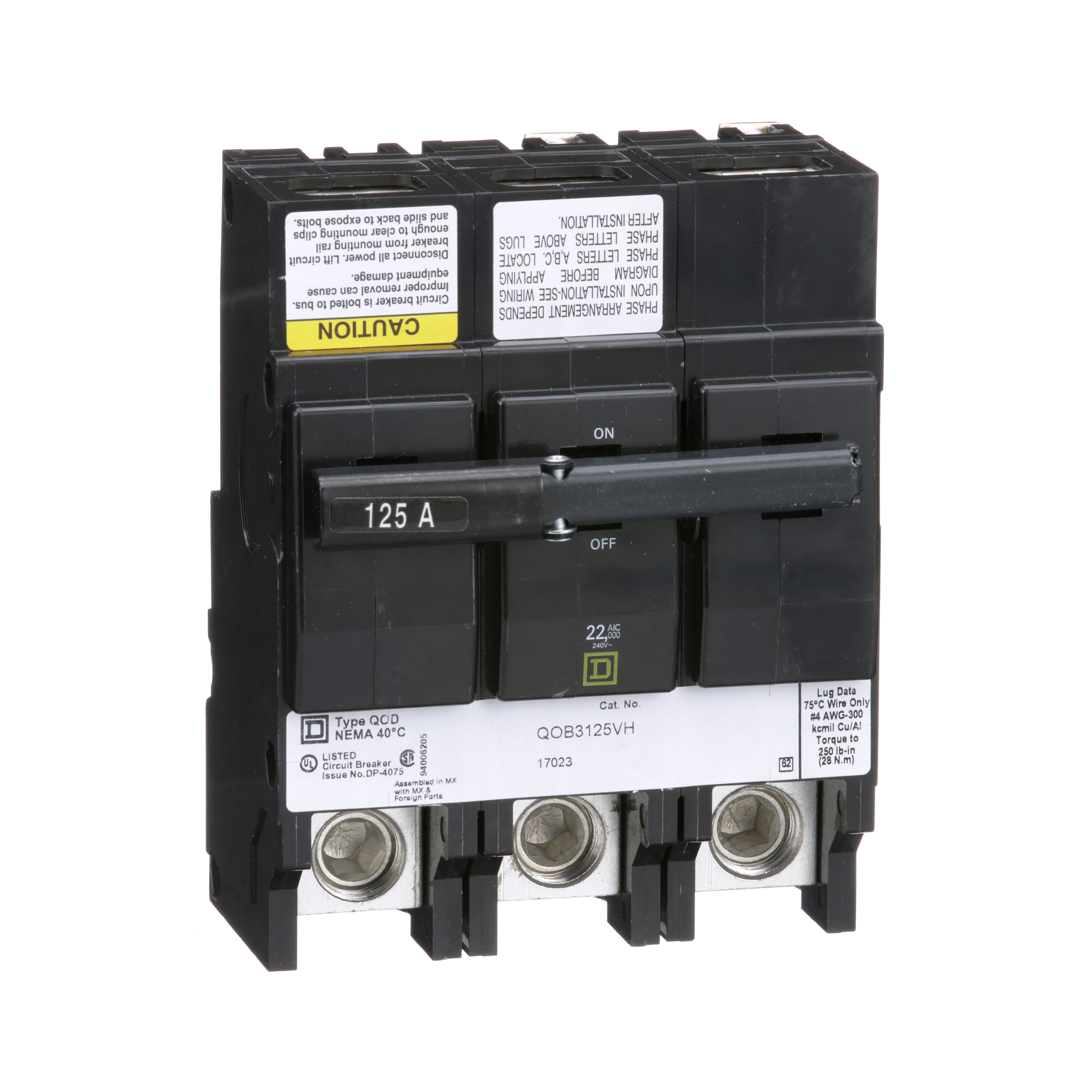

Square D™ Homeline™ QO® Standard Miniature Circuit Breaker, 240 VAC, 125 A, 22 kA Interrupt, 3 Poles
Circuit Breakers
31915
MFG #: QOB3125VH
Square D™
1917.56000
/ ea
Square D QOB3125VH MINIATURE CIRCUIT BREAKER 240V 125A,125A,22kA,240 Vac,3-Phase,Box Lugs #4 to 300 AWG/kcmil(Al/Cu),Miniature Circuit Breaker,QO,Standard Bolt-On,UL Listed - CSA Certified
- 360 Degree View URL - index.html?pid=11003&id=8004040360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=QOB3125VH(3D Rendering URL)
- Compliance Cert URL - Square_D_QOB3125VH_Compliance_Certificate.pdf(Compliance Cert URL)
- Install Instructions 1 URL - 11003_YZ960BGHSVDUC4AN.pdf(Install Instructions 1 URL)
- Brochure URL - 11003_SF18VI3Y75ANRTGZ.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_c5b326735eb8d1d236aee0ae89f871f8971a71ae7f56a2c5995b35a605d67649.pdf(Catalog URL)
- User Manual URL - files?p_enDocType=User guide&p_File_Name=80043-712-06.pdf(User Manual URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Install Instructions URL - files?p_Doc_Ref=48940-072-03(Install Instructions URL)
- Spec Sheet URL - 11003_5U3Y4WXMGE2CDSPA.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_AQUR96M5IEJFNB7X.pdf(Tech Drawing URL)
- Applications
- Features
| Not rated |
| STANDARD BOLT-ON |
| QO® and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication |
| Tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously |
| Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboards |
| QO® and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit |
| Common trip |
| 4 AWG to 300 kcmil aluminum/copper wire |
| Standard |
