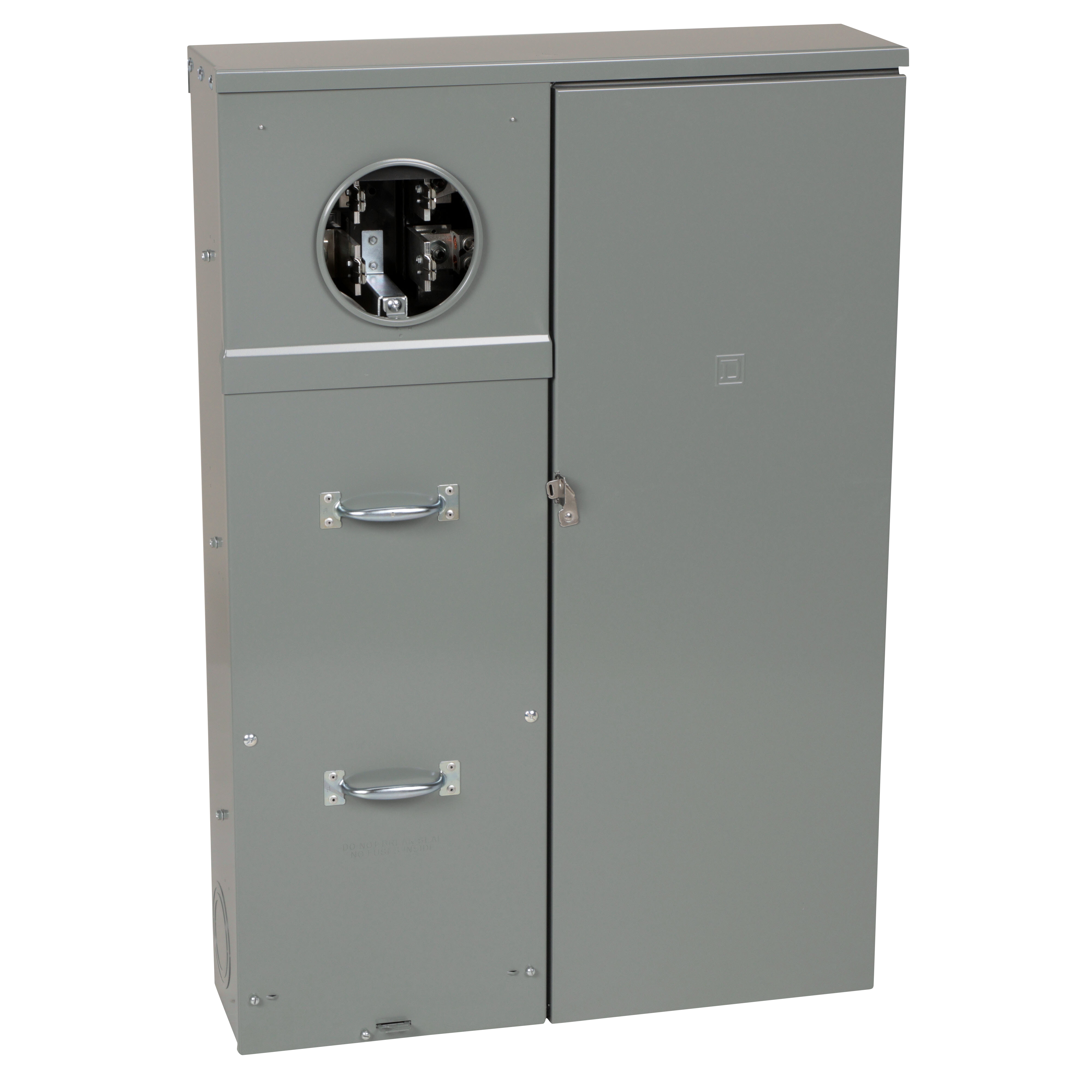

Square D™ HomeLine™ SU3040D400CB 30-Circuit 40-Space All-In-One Field Installed Rainproof Combination Service Entrance Meter Main With Class 320 Test Block Bypass, 400 A
Meter Socket Meter Main Combinations
PDW~6417853
MFG #: SU3040D400CB
Square D™
0.00000
/ ea
Square D™ HomeLine™ Combination Service Entrance Meter Main, 30-Circuit 40-Space All-In-One Field Installed Rainproof, 400 A, Underground Feed, 4 AWG to 250 kcmil Aluminum/Copper Wire, A-L Hub, Ring Cover, Stud Line/Service Ground Lug Terminal, Flush Mounting, 41-1/4 in H x 28-1/4 in W x 7-1/2 in D Dimensions
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8080604360Den&ext=webp(360 Degree View URL)
- Install Instructions 1 URL - 11003_KPZTCJHD4Y7N1XSE.pdf(Install Instructions 1 URL)
- Brochure URL - 11003_SO0PM1XG7YE5Q2FK.pdf(Brochure URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Computer~Aided [CAD|BIM] Model URL - c2d771b5b335c11d7bef83d9d3944f3be1d57a51.pdf(Computer~Aided [CAD|BIM] Model URL)
- Spec Sheet URL - 11003_M943AW8DT2CGYQKF.pdf(Spec Sheet URL)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=3315.DWG(Tech Drawing URL)
- Tech Drawing URL - 11003_MNEA4ZJ9PD03UB2L.dwg(Tech Drawing URL)
- Applications
- Features
| Residential Applications |
| CLASS 320 MANUAL BYPASS,RINGED |
| Multiple disconnect units can accommodate plug-on surge breaker™ secondary surge arrester |
| Multiple disconnect units can be converted to semi-flush with addition of flange kit |
| For use only on 120/240 VAC 1-phase, 3-wire system (4-jaw meter socket) |
| Knockout provided in cover for use with barrel lock kit SCBRLLOCK |
| Device configuration is not included in EUSERC standards |
