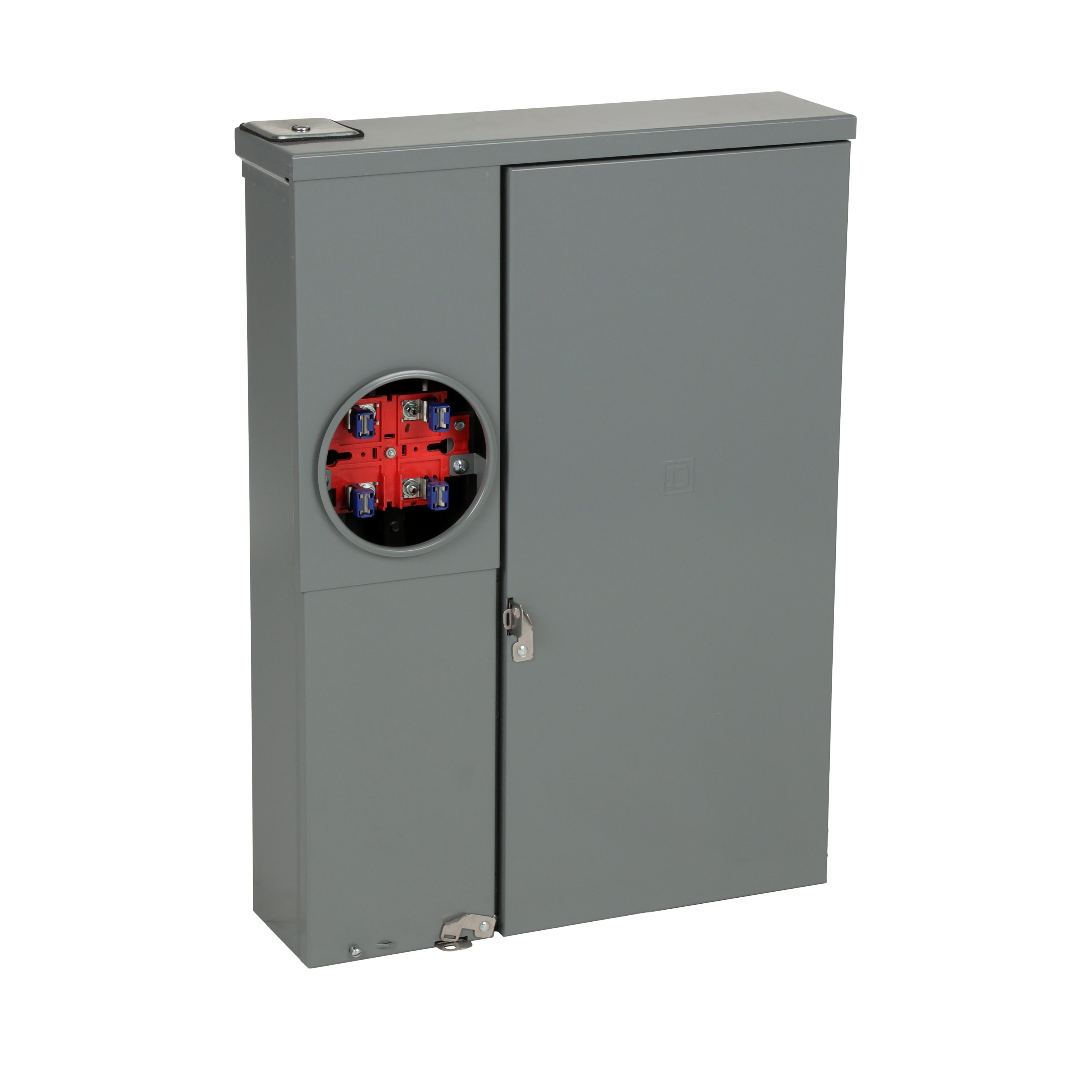

Square D™ HomeLine™ SC816F200PS 2-Pole 3-Wire 8-Circuit 16-Space Field Installed Rainproof Combination Service Entrance Meter Main, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Meter Socket Meter Main Combinations
PDW~11803996
MFG #: SC816F200PS
Square D™
0.00000
/ ea
Square D™ HomeLine™ Combination Service Entrance Meter Main, 2-Pole 3-Wire 8-Circuit 16-Space Field Installed Rainproof, 120/240 VAC, 200 A, 1, Overhead/Underground Feed, 4 AWG to 250 kcmil/6 AWG to 250 kcmil/14 to 2/0 AWG Aluminum/Copper Wire, A-L Hub, Ring Cover, Line/Load/Service Ground/Feed-Through Lug Terminal, Surface Mount, NEMA 3R, 14.85 in W x 3.4 in D x 42.6 in H
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8150201360Den&ext=webp(360 Degree View URL)
- Computer~Aided [CAD|BIM] Model URL - 1f4c5e2621ccf2d17a0c458c9bf5e9fc1544e729.pdf(Computer~Aided [CAD|BIM] Model URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- 3D Rendering URL - SEproductListV2.html?p=SC816F200PS(3D Rendering URL)
- Install Instructions 1 URL - 11003_KPZTCJHD4Y7N1XSE.pdf(Install Instructions 1 URL)
- Tech Drawing URL - 11003_OCUX7058LD1KAH9Z.dwg(Tech Drawing URL)
- Spec Sheet URL - 11003_H1ZXILQPN729EFKJ.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_WSTPE4Z5FBM60OLU.dwg(Tech Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Applications
- Features
| Residential, Outdoor and Solar Ready Applications |
| Multiple disconnect units can accommodate plug-on surge breaker™ secondary surge arrester |
| Multiple disconnect units can be converted to semi-flush with addition of flange kit |
| 4 AWG to 250 kcmil line side, 6 AWG to 250 kcmil load side, 14 to 2/0 AWG aluminum/copper service ground lug |
| Without bypass |
