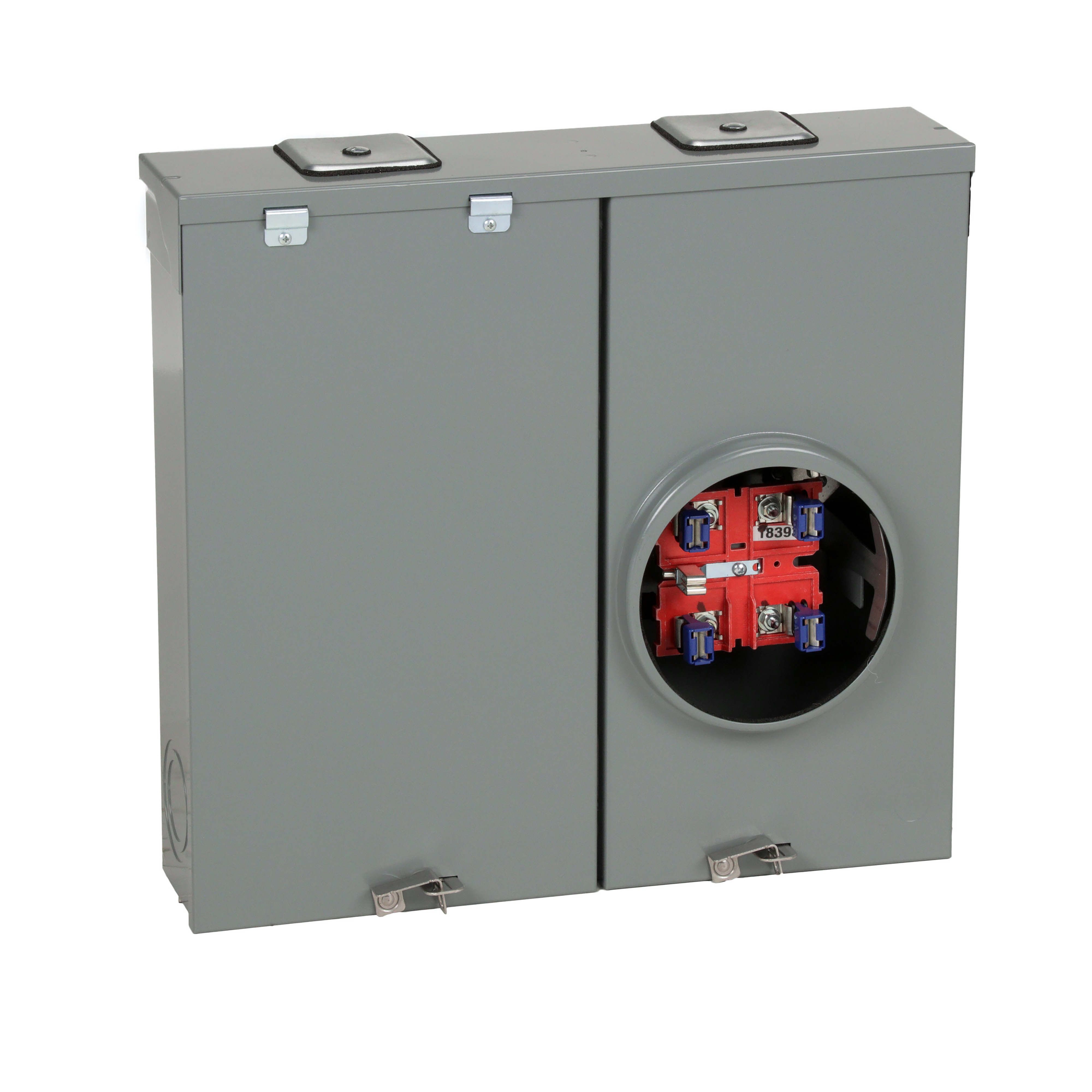

Square D™ HomeLine™ QO™ RC200S 2-Circuit All-In-One Field Installed Rainproof Combination Service Entrance Meter Main, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Meter Mains
PDW~6415512
MFG #: RC200S
Square D™
1022.00000
/ ea
Square D™ HomeLine™ QO™ Combination Service Entrance Meter Main, 2-Circuit All-In-One Field Installed Rainproof, 120/240 VAC, 200 A, 1 ph, Overhead/Underground Feed, 6 AWG to 300 kcmil Al/Cu, 8 to 2/0 AWG Wire, A Hub, Ringless Cover, Line/Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 19.58 in W x 4.6 in D x 18.23 in H Dimensions
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8022966360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=RC200S(3D Rendering URL)
- Brochure URL - 11003_SO0PM1XG7YE5Q2FK.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - e7d531c32d3bdbb9dcf364064e07b9652a059760.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_KPZTCJHD4Y7N1XSE.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_W9TIF8UGPXQHZ40D.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_PEG2Q54F8ATICY76.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_WBRYU4I6HZQ5E7F3.dwg(Tech Drawing URL)
- Applications
- Features
| Residential Applications |
| Multiple disconnect units can accommodate plug-on surge Breaker™ secondary surge arrester |
| Multiple disconnect units can be converted to semi-flush with addition of flange kit |
| 6 AWG to 350 kcmil aluminum/copper line side, 8 to 2/0 AWG aluminum/copper service ground lug |
| Without bypass |
