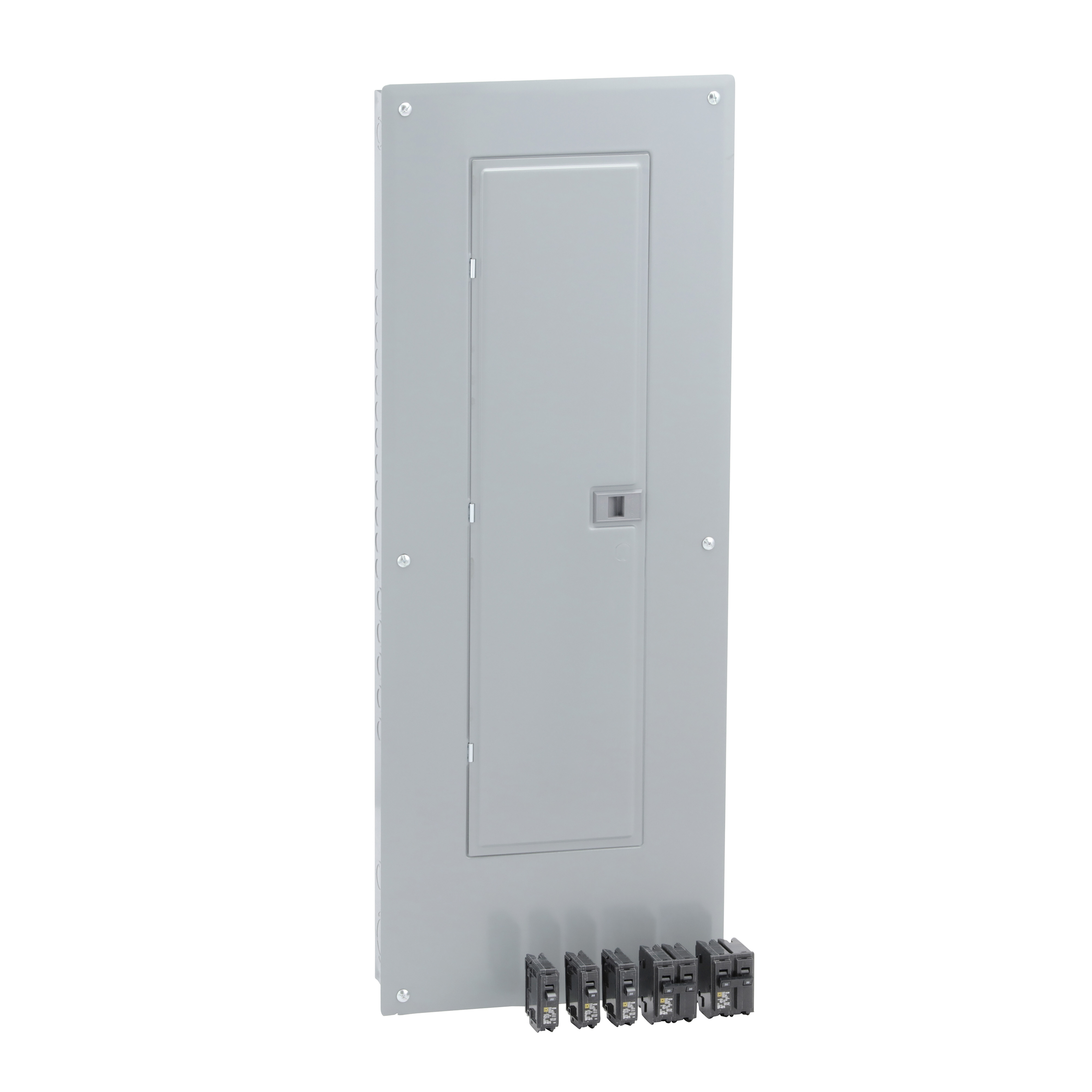

Square D™ HomeLine™ HOM4080M200PCVP 1-Phase Convertible Neutral Main Breaker Load Center With Combination Flush/Surface Cover, 120/240 VAC, 200 A, 1 Poles, 22 kA Interrupt
Single Phase Main Breaker Load Centers
1307269
MFG #: HOM4080M200PCVP
Square D™
1218.15000
/ ea
Square D™ HomeLine™ Main Breaker Load Center, 1-Phase Convertible Neutral, 120/240 VAC, 200 A, 1 Pole, 50/60 Hz, 22 kA Interrupt, 80 Circuits, Panel Breaker Mounting, 3-Wire Wiring Configuration, 40 Spaces, 4 AWG to 250 kcmil Wire, Flush/Plug-On Mount, NEMA 1, 12 Enclosure Box, Steel Housing, 14.25 in W x 3.75 in D x 39.37 in H
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=12945553360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=HOM4080M200PCVP(3D Rendering URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=1170BR1801.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - f567ff12499b3aea4e9a3fae32766f81e48ef6b2.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_40FRSBOTE13WC9ZQ.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_L87K1YC6BHU590OI.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_3PV1NAITYJO2Z0LU.dxf(Tech Drawing URL)
- Tech Drawing URL - 11003_OHQXIFL2TB7S3JYW.dxf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/B5LRuRQEvMI(Video)
- Warranty URL - files?p_enDocType=Warranty&p_File_Name=0700DB2001.pdf(Warranty URL)
- Warranty URL - 11003_PVC2OT0S4FZHR6LN.pdf(Warranty URL)
- Applications
- Features
For indoor, residential, commercial and industrial requirements to protect electrical systems, equipment and people |
Tin plated aluminium: busbar |
Tin plated aluminum bus construction on main lug or main circuit breaker panels |
Service entrance equipment capable panels |
Straight in wiring to help minimize service cable installation |
Single captive screw interior mounting on indoor panels to ease removal |
New side hinge doors on outdoor convertible main panels |
Outdoor panel covers are lockable with padlock |
Gray baked enamel electrodeposited over cleaned, phosphatized steel |
Top or bottom feed by rotating convertible mains panels 180 deg |
Lug electrical connection |
