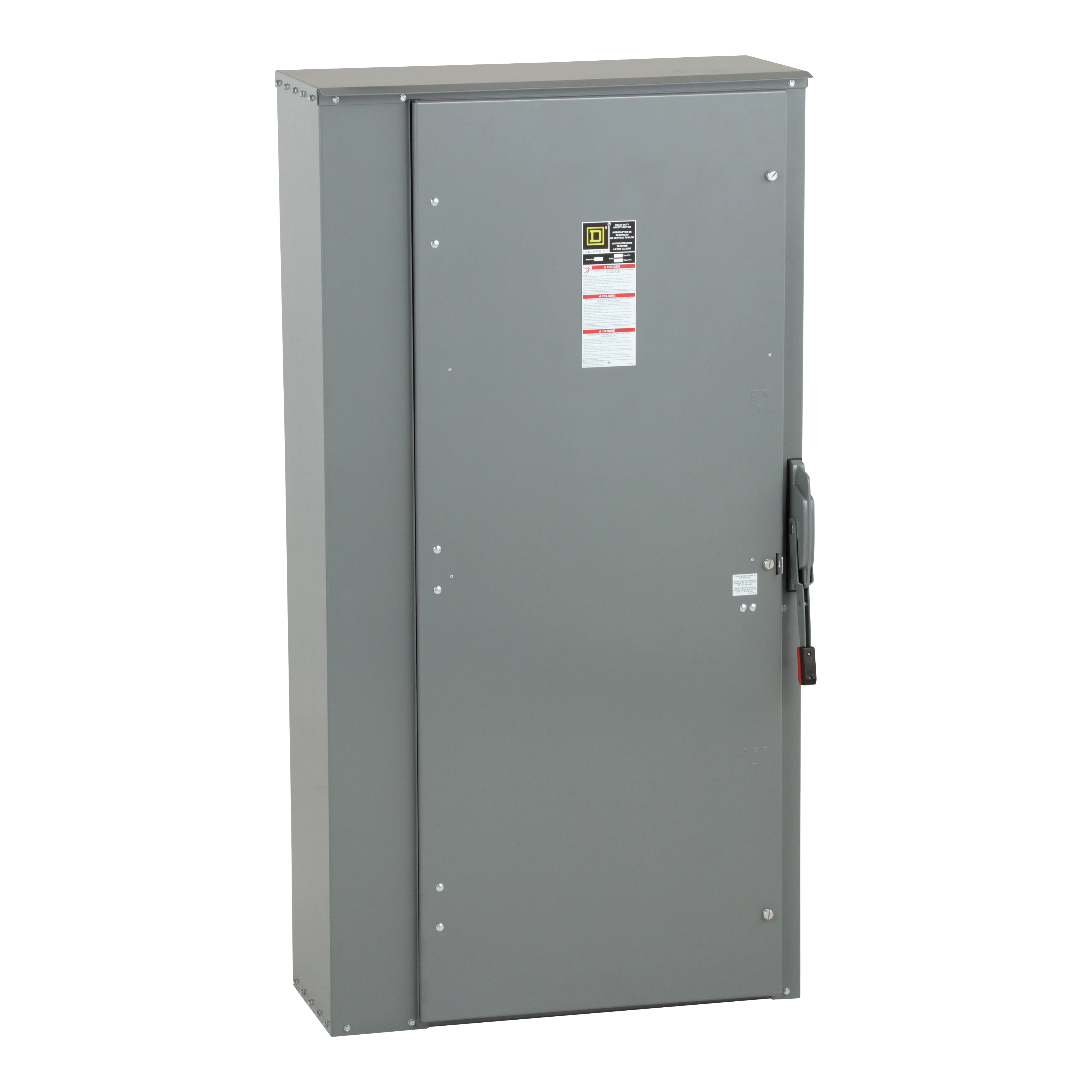

Square D™ HU368R SWITCH NONFUSIBLE 600V 1
Heavy Duty Safety Switches
469501
MFG #: HU368R
Square D™
17867.00000
/ ea
Square D HU368R SWITCH NONFUSIBLE 600V 1200A 3P,1200A,3,3R,600V AC600V DC,Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,N,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Safety Switch,UL 98 Listed
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8109185360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Catalog 1 URL - Square_D_DS200EK2D_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - IDW_DOCUMENT_bd2a4800350a29ef7b15c158a776a1046e6e2dadf8cbf96f7ba9d5c82cfeafd4.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - 21e7fe038b0126a473c4ca58632b22fefa0cafca.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_F86ASDEJ3N2PGUYI.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet 1 URL - Square_D_HU368R_Datasheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_QTV3M17XA8BOLH6S.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/mbIMCO9g7oI(Video)
- Tech Drawing URL - 11003_FL2I06YQJMPTC9KZ.dxf(Tech Drawing URL)
- Tech Drawing URL - 11003_TU5F8GPDO70Z4K29.dwg(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=1940S.dxf(Tech Drawing URL)
- Applications
- Features
| HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. |
| HEAVY DUTY |
| Visible blade switches for positive "off" indication |
| Quick-make, quick-break operating mechanism |
| Dual cover interlock |
| Color coded on/off indicator handle |
| Spring reinforced plated copper fuse clip |
| Tangential combination knockouts |
| Insulated, bonded solid neutral assemblies |
| Wire terminations suitable for aluminum or copper conductors |
| Cover padlock hasp and handle lock-off provision for multiple padlocks |
| Up to 200 kA SCCR, utilizing appropriately rated class R fuses and class R fuse kits or class L and class J fuses |
| 100 hp at 240 VAC, 500 hp at 480/600 VAC, 50 hp at 600 VDC |
| Rainproof, ice/sleet proof enclosure for indoor/outdoor |
| For applications up to 600 VAC/VDC 30 to 1200 A, 200000 rms symmetrical amperes short circuit current |
