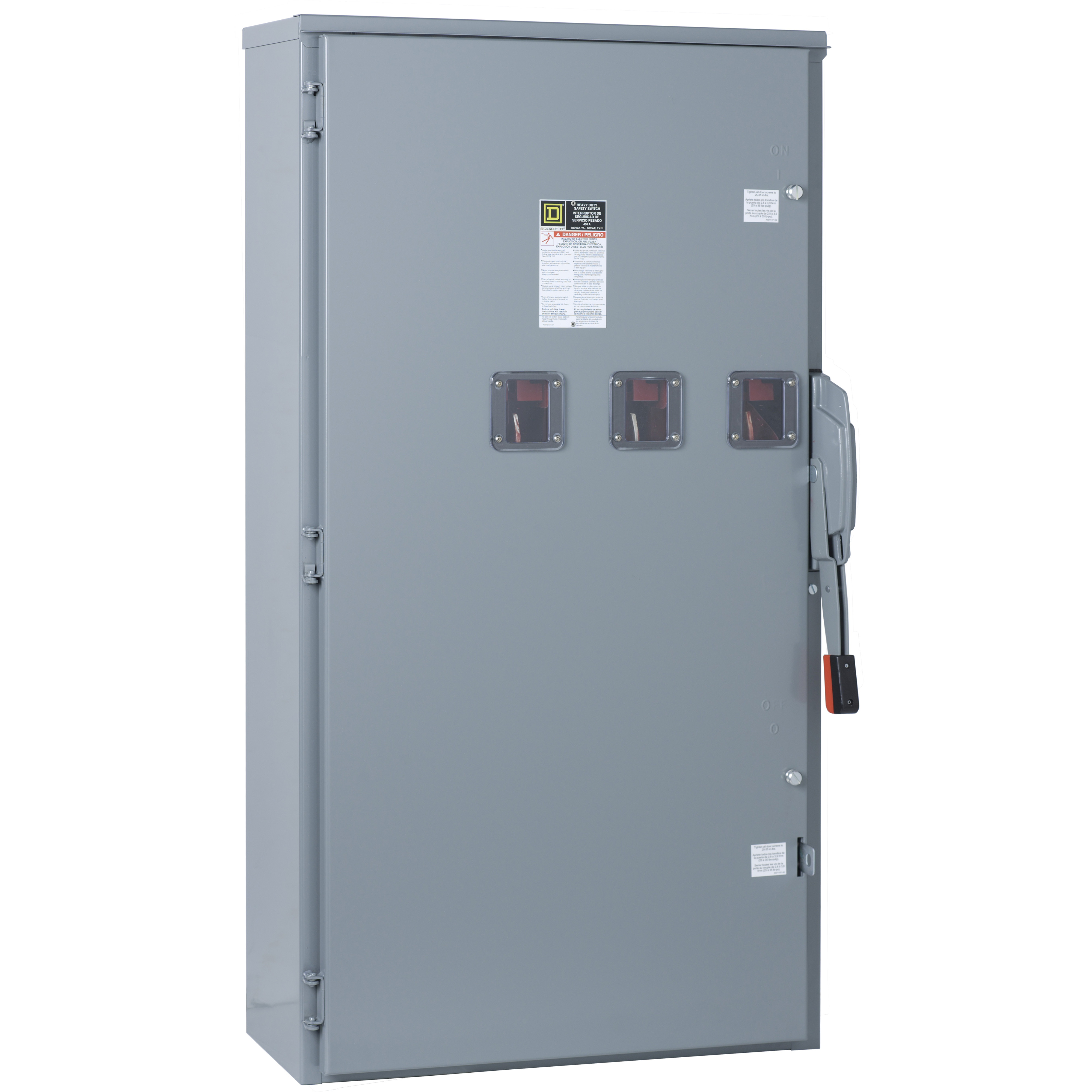

Square D™ HU365RVW E5 Iceproof Non-Fusible Rainproof Sleetproof Heavy Duty Safety Switch With Viewing Window, 600 VAC/VDC, 400 A, 350 hp, 50 hp, TPST Contact, 3 Poles
Heavy Duty Safety Switches
PDW~6404257
MFG #: HU365RVW
Square D™
6027.00000
/ ea
Square D™ Heavy Duty Safety Switch, Iceproof Non-Fusible Rainproof Sleetproof, Series, 600, Amperage Rating VAC/VDC, A 400, 350 hp, 50 hp, Phase, Number of Poles, 3 Wires, Short Circuit Current Rating, kA 200, TPST, Actuator Type, Enclosure Type, Surface Mount, Terminal Type, -22 to 104, Dimensions deg F, Steel, Color, Galvannealed/Painted
- Computer~Aided [CAD|BIM] Model URL - 13791a180212f3ac685e7302bf0cc6101d32f0af.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_F86ASDEJ3N2PGUYI.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_KCA87MEYPSH50FQI.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_07IQ5DM1S9LOHX63.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/3j1msgeG034(Video)
- Applications
- Features
Mining, Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Indoor/Outdoor Applications |
LUGS |
Visible blades for positive indication that switch is "OFF" |
Quick make, quick break operating mechanism |
Optional viewing window allows visual verification of blade position without opening door |
Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
Handle lock-off provision for multiple padlocks "OFF" position |
Cover can be padlock closed |
Tangential knockouts, where provided, lessen the need for conduit offset bends |
Without electrical interlock |
