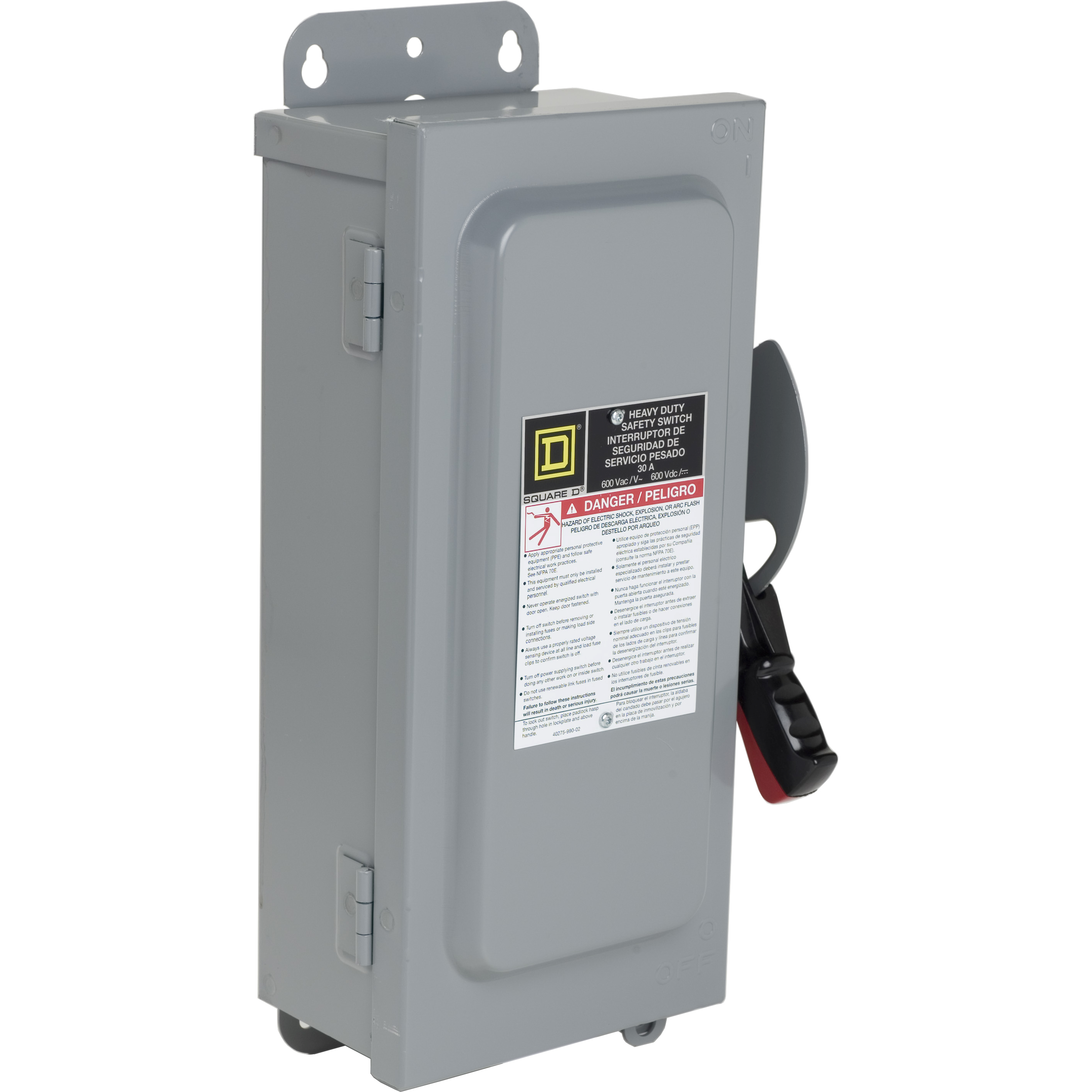

Square D™ HU361AWKEI4MVW SW NOT FUSIBLE 600V 30A EI4 2NO/2NC W/VW
Heavy Duty Safety Switches
990990
MFG #: HU361AWKEI4MVW
Square D™
1353.00000
/ ea
Square D HU361AWKEI4MVW SW NOT FUSIBLE 600V 30A EI4 2NO/2NC W/VW,30A,600V,Galvannealed Steel,Lugs,NEMA 3R/12,Non-Fusible,Rainproof, Sleet/Ice proof and Dust tight (Indoor/Outdoor),Safety Switch,UL Listed,heavy duty,surface
- Catalog 1 URL - Schneider_Electric_CH221NAWK_Catalog_1.pdf(Catalog 1 URL)
- Install Instructions 1 URL - 11003_0IBYW91U5ZASPQM2.pdf(Install Instructions 1 URL)
- Install Instructions URL - Schneider_Electric_CH221NAWK_Installation.pdf(Install Instructions URL)
- Line Drawing URL - Square_D_H361AWAVW_Line_Drawing.pdf(Line Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_JWKYOGUXT9AQ573N.pdf(Spec Sheet URL)
- Tech Drawing URL - 52692b359fac4274a7e6a5e1edd75dbb07af1833(Tech Drawing URL)
- Video - https://www.youtube.com/embed/s2yLxPcRTIY(Video)
- Applications
- Features
Heavy application |
LUGS |
Visible blades for positive indication that switch is "OFF" |
Quick make, quick break operating mechanism |
Optional viewing window allows visual verification of blade position without opening door |
Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
Handle lock-off provision for multiple padlocks "OFF" position |
Cover can be padlock closed |
Tangential knockouts, where provided, lessen the need for conduit offset bends |
Without knockouts |
Electrical interlock kit |
Viewing window |
Electrical interlock kit |
