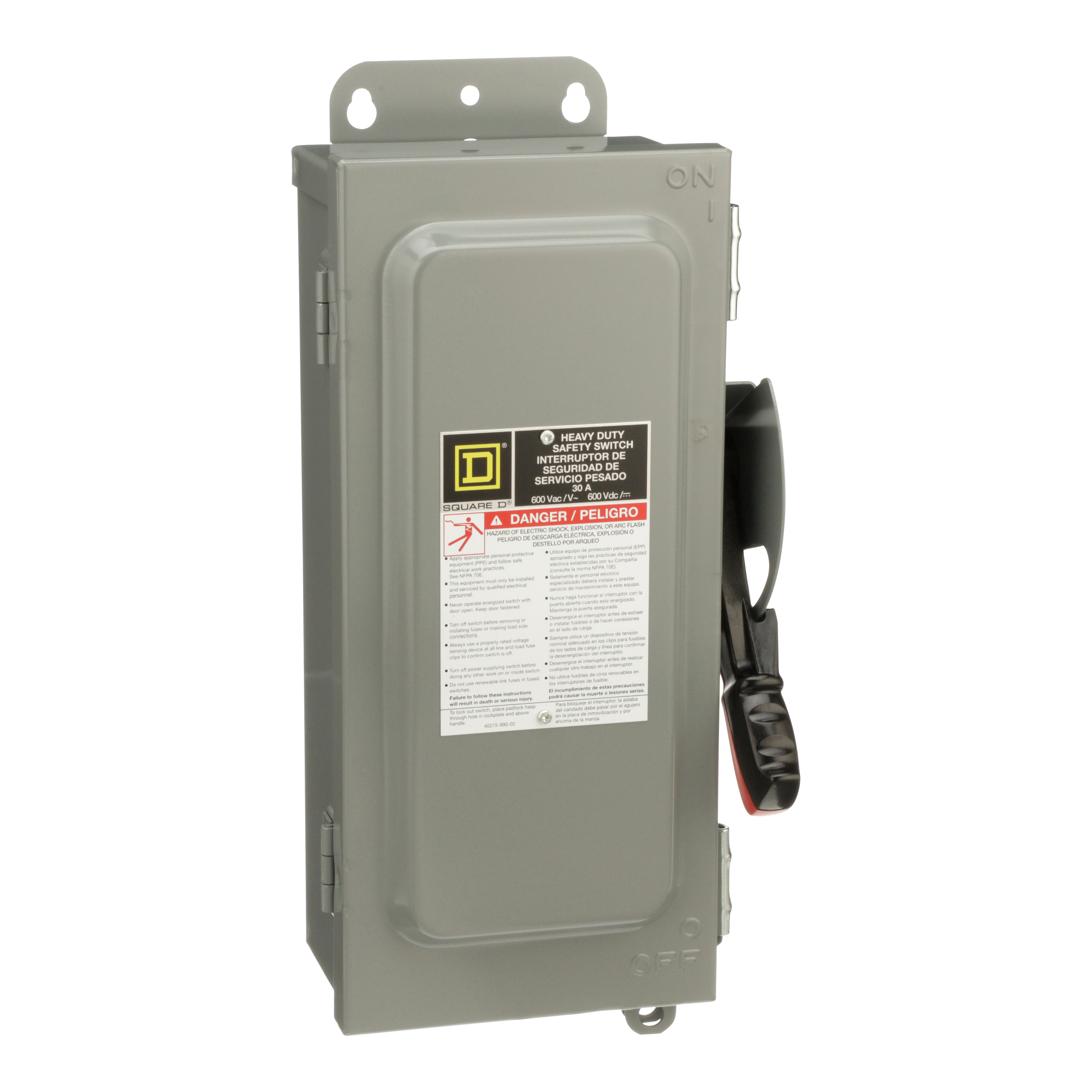

Square D™ HU361AWKEI2 F6 Dusttight Driptight Iceproof Non-Fusible Disconnect Rainproof Sleetproof Heavy Duty Safety Switch, 600 VAC/VDC, 30 A, 10 hp, 15 hp, 30 hp, 2NO-2NC TPST Contact, 3 Poles
Heavy Duty Safety Switches
171416
MFG #: HU361AWKEI2
Square D™
1005.00000
/ ea
Square D™ Heavy Duty Safety Switch, Dusttight Driptight Iceproof Non-Fusible Disconnect Rainproof Sleetproof, Series: F6, 600 VAC/VDC, 30 A, 10 hp, 15 hp, 30 hp, 1/2/3 ph, 3 Pole, 200 kA Short Circuit, 2NO-2NC TPST Contact Form, Handle Actuator, NEMA 3R/12 Enclosure, Surface Mounting, Lug Terminal, -22 to 104 deg F, 7.55 in W x 4.96 in D x 14.6 in H Dimensions, Steel, Gray, Galvannealed/Painted
- 360 Degree View URL - 360(360 Degree View URL)
- Brochure URL - cfd3e8a1f7cf0e09247b39edc80b7d6811fd0bf5.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=2231.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_0IBYW91U5ZASPQM2.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_JM4EYUWA8RHZIO07.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_POSEM5JYVDT3KU6Q.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/3j1msgeG034(Video)
- Applications
- Features
| Commercial, Industrial, Indoor/Outdoor Applications |
| LUGS |
| Visible blades for positive indication that switch is "Off" |
| Quick-make, quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the on (red) or off (black) switch position |
| Dual cover interlock prevents the cover from being opened when the switch is on and prevents the switch from being turned on when the cover is open |
| Handle lock-off provision for multiple padlocks "Off" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Without knockouts |
