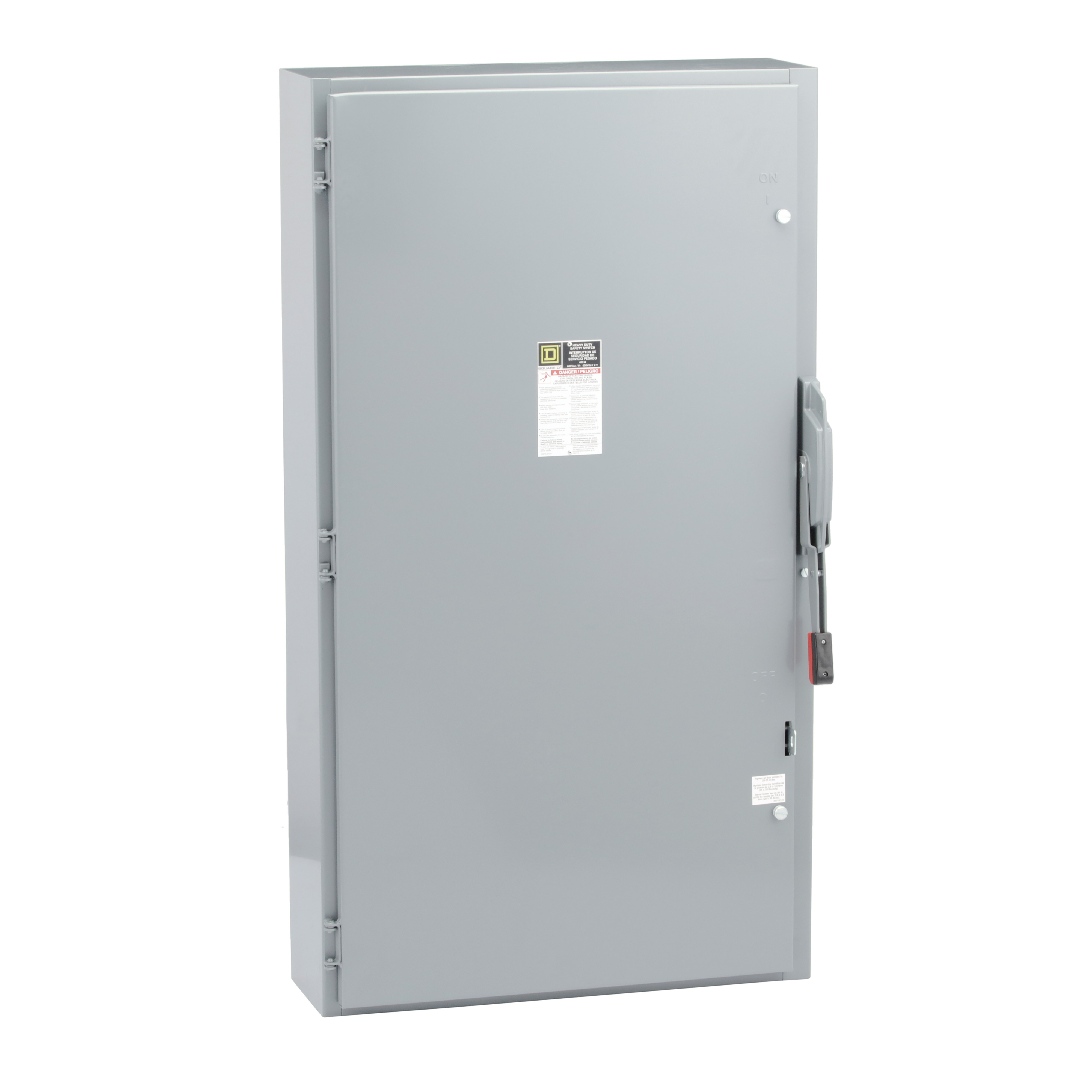

Square D™ HU266 SWITCH NOT FUSIBLE HD 600
Heavy Duty Safety Switches
846794
MFG #: HU266
Square D™
4896.00000
/ ea
Square D HU266 SWITCH NOT FUSIBLE HD 600V 600A 2P NEMA1,1,2,600A,600V AC600V DC,General Purpose (Indoor),Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,N,NEMA 1,Safety Switch,UL 98 Listed
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Catalog 1 URL - Schneider_Electric_CH221NAWK_Catalog_1.pdf(Catalog 1 URL)
- Computer~Aided [CAD|BIM] Model URL - 925a2e0bf438c492cc93dfafeaa9643053c06290.zip(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_F86ASDEJ3N2PGUYI.pdf(Install Instructions 1 URL)
- Install Instructions URL - Schneider_Electric_CH221NAWK_Installation.pdf(Install Instructions URL)
- Line Drawing URL - Schneider_Electric_H226_Line_Drawing.pdf(Line Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_OE8J67CLZNHGMQUB.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_QGCM7KSUP9V8W12H.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/qZyLdmwykug(Video)
- Applications
- Features
Heavy application |
HEAVY DUTY |
Visible blades for positive indication that switch is "OFF" |
Quick make/quick break operating mechanism |
Optional viewing window allows visual verification of blade position without opening door |
Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
Handle lock-off provision for multiple padlocks "OFF" position |
Cover can be padlock closed |
Tangential knockouts, where provided, lessen the need for conduit offset bends |
Spring reinforced plated copper fuse clips |
