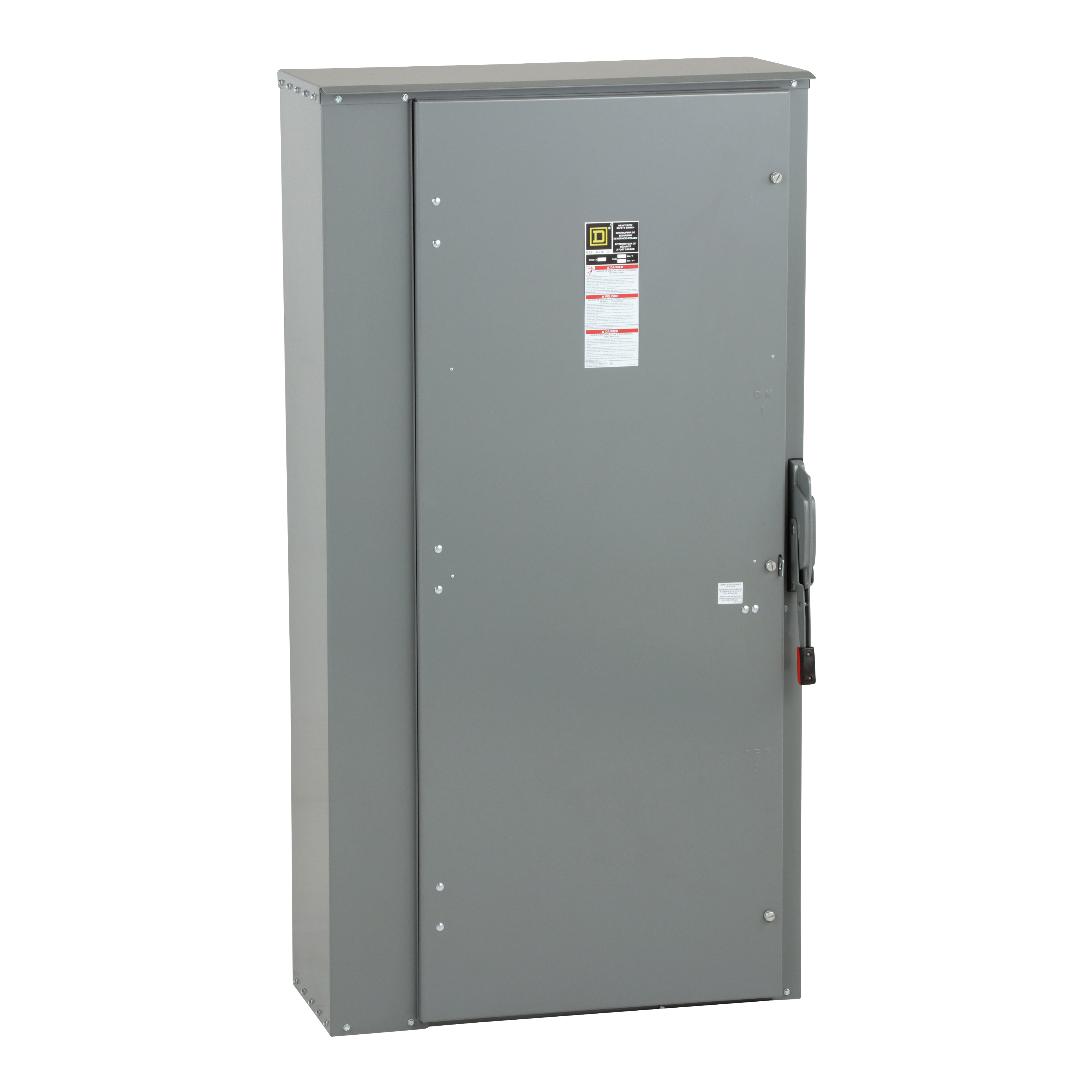

Square D™ H368R E4 Fusible Rainproof Heavy Duty Safety Switch, 600 VAC/VDC, 1200 A, 500 hp at 600 VAC/50 hp at 600 VDC, Single Throw Contact Form, 3 Poles
Heavy Duty Safety Switches
910607
MFG #: H368R
Square D™
20009.00000
/ ea
Square D H368R SWITCH FUSIBLE HD 600V 1200A 3P NEMA3R,1200A,3,3R,600V AC600V DC,Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Safety Switch,UL 98 Listed,Y
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8109153360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Catalog 1 URL - Schneider_Electric_CH221NAWK_Catalog_1.pdf(Catalog 1 URL)
- Computer~Aided [CAD|BIM] Model URL - c06f867fd901d77d2e539706dadbb3ed22659e05.zip(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_F86ASDEJ3N2PGUYI.pdf(Install Instructions 1 URL)
- Install Instructions URL - Schneider_Electric_CH221NAWK_Installation.pdf(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_KA81I7PZ43TCL5O2.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_FL2I06YQJMPTC9KZ.dxf(Tech Drawing URL)
- Tech Drawing URL - 11003_TU5F8GPDO70Z4K29.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/mbIMCO9g7oI(Video)
- Applications
- Features
Heavy application |
HEAVY DUTY |
Visible blades for positive indication that switch is "OFF" |
Quick make/quick break operating mechanism |
Optional viewing window allows visual verification of blade position without opening door |
Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
Handle lock-off provision for multiple padlocks "OFF" position |
Cover can be padlock closed |
Tangential knockouts, where provided, lessen the need for conduit offset bends |
Spring reinforced plated copper fuse clips |
