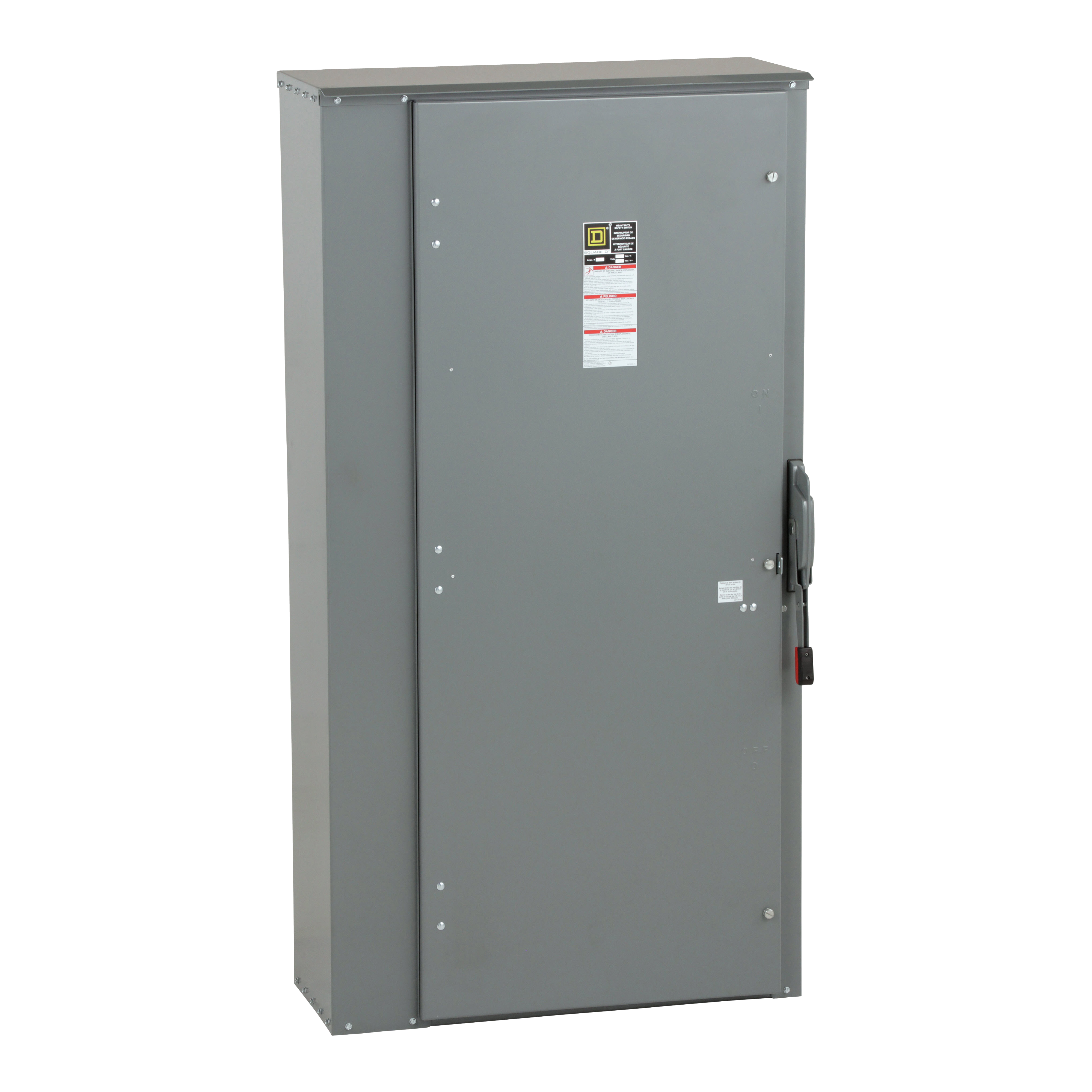

Square D™ H367R Fusible Heavy Duty Safety Switch, 600 VAC/VDC, 800 A, 250/50 hp, 3 Poles, TPST
Heavy Duty Safety Switches
140184
MFG #: H367R
Square D™
16500.00000
/ ea
Square D H367R SWITCH FUSIBLE HD 600V 800A 3P NEMA3R,3,3R,600V AC600V DC,800A,Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Safety Switch,UL 98 Listed,Y
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8046405360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Catalog 1 URL - Square_D_H322N_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - IDW_DOCUMENT_bd2a4800350a29ef7b15c158a776a1046e6e2dadf8cbf96f7ba9d5c82cfeafd4.pdf(Catalog URL)
- Compliance Cert URL - Square_D_H367R_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - 0b1ee6f05175fbb0c7dbdf1c55a595282a62cefa.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_F86ASDEJ3N2PGUYI.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_XLN5KW4ATHOGIF1Q.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_DXIJ906T43WRASE5.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/qZyLdmwykug(Video)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=1938S.pdf(Tech Drawing URL)
- Applications
- Features
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. |
HEAVY DUTY |
Visible blades for positive blade position indication |
Red and black handle indicates the On (red) or Off (black) switch position |
Side-opening, left hinged covers |
Highly visible embossed On/Off marking/On/Off labels are used on type 4X fiberglass reinforced polyester enclosures |
Quick-make/quick-break operating mechanism |
Standard with plated aluminum lugs which accepts both copper and aluminum wires |
Front removable mechanical lugs |
Dual cover interlock prevents the cover from being opened when the switch is on and prevents the switch from being turned on when the cover is open |
An interlock bypass is provided for access by authorized personnel |
Heavy duty safety switches are designed for the following applications up to 600 VAC or 600 VDC, 30 to 1200 A, 200000 rms symmetrical amperes short circuit current |
3 contact configurations |
Has contact rating |
Rain proof and sleet/ice proof (indoor/outdoor) environment conditions |
