Square D™ H327NR SW,FUSIBLE 240V 800A 3P
Heavy Duty Safety Switches
146507
MFG #: H327NR
Square D™
15563.00000
/ ea

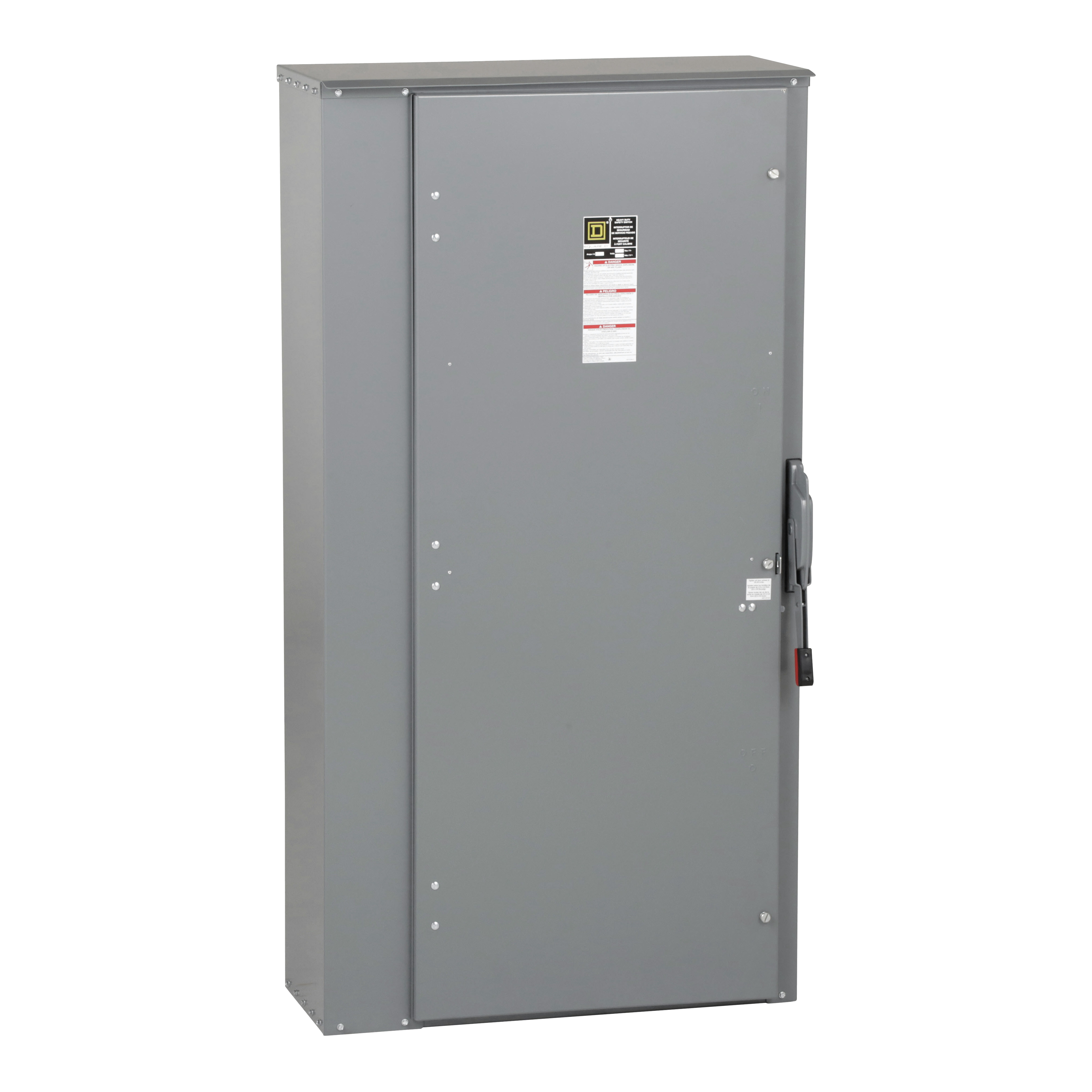

Square D H327NR SW,FUSIBLE 240V 800A 3P NEMA3R/NEUTRAL,240 V AC-250 V DC,800 A,Galvannealed Steel,Lugs,NEMA 3R,Rainproof and Sleet/Ice proof (Indoor/Outdoor),Single Throw,Single Throw Safety Switch,UL Listed,heavy duty,heavy duty,surface
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8048758360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_bd2a4800350a29ef7b15c158a776a1046e6e2dadf8cbf96f7ba9d5c82cfeafd4.pdf(Catalog URL)
- Install Instructions 1 URL - 11003_F86ASDEJ3N2PGUYI.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_F5L7AOWJZ48CU3Y2.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_DXIJ906T43WRASE5.dwg(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=1938S.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/mbIMCO9g7oI(Video)
- Applications
- Features
| HEAVY DUTY |
| HEAVY DUTY |
| Visible blades for positive indication that switch is "OFF" |
| Quick make, quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Cover padlock hasp and handle lock-off provision for multiple padlocks |
| Up to 200 kA SCCR, utilizing appropriately rated class R fuses and class R fuse kits or class L and class J fuses |
| 250 hp at 240 VAC 3-phase, 50 hp at 250 VDC |
| Rainproof, ice/sleet proof enclosure for indoor/outdoor |
