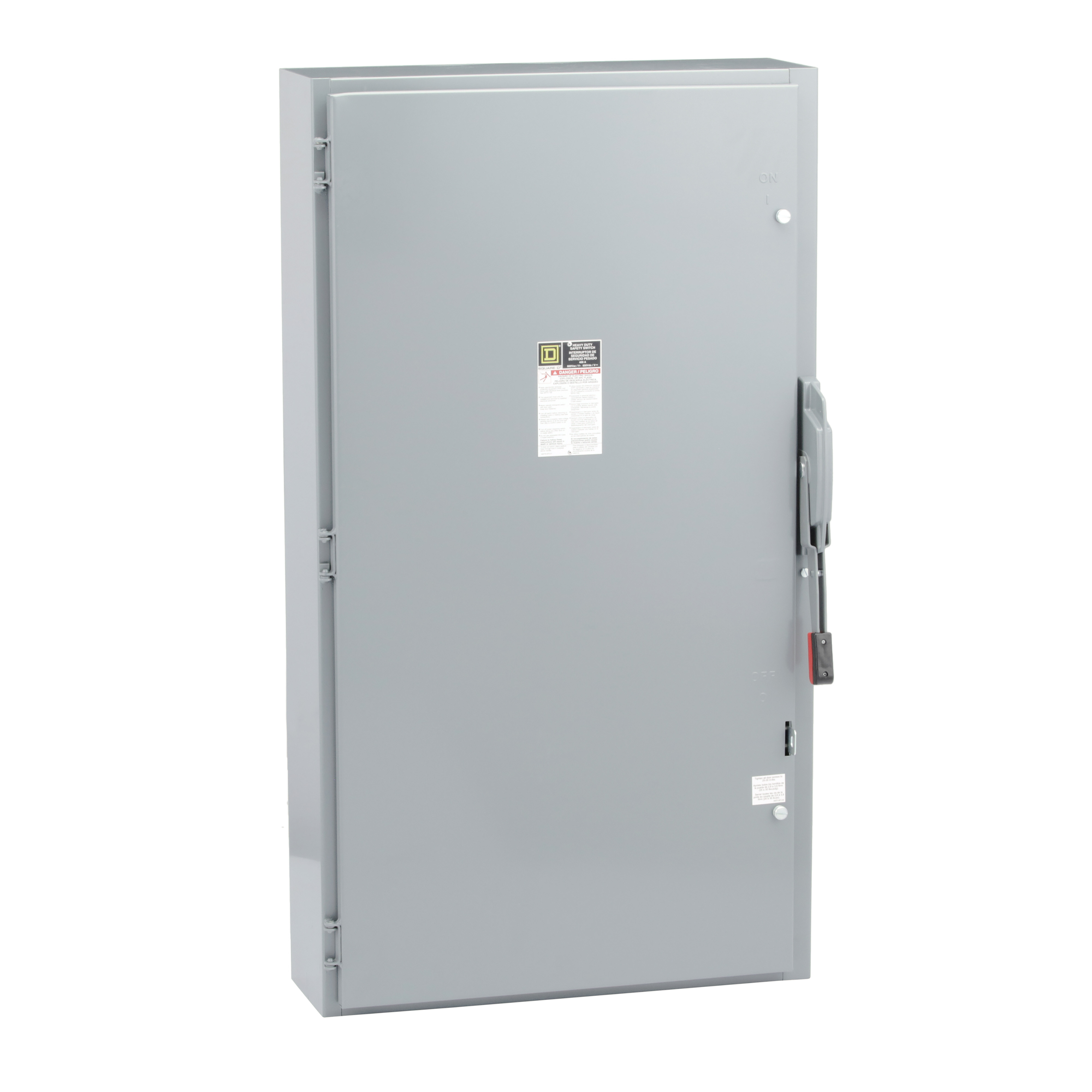

Square D™ H325 E4 Fusible General Purpose Heavy Duty Safety Switch, 240 VAC/250 VDC, 400 A, 125 hp at 240 VAC/50 hp at 250 VDC, Single Throw Contact Form, 3 Poles
Heavy Duty Safety Switches
98421
MFG #: H325
Square D™
3425.00000
/ ea
Square D H325 SWITCH FUSIBLE HD 240V 400A 3P NEMA1,1,240 Vac/250 Vdc,3,400A,General Purpose (Indoor),Heavy Duty,Heavy Duty Safety Switches are designed for the following applications up to 600Vac or 600Vdc 30-1200 amperes, 200,000 rms symmetrical amperes short circuit current.,NEMA 1,Safety Switch,UL 98 Listed,Y
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=3100BR9801.pdf(Brochure URL)
- Catalog 1 URL - Schneider_Electric_CH221NAWK_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - IDW_DOCUMENT_bd2a4800350a29ef7b15c158a776a1046e6e2dadf8cbf96f7ba9d5c82cfeafd4.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - cdd5a96359b17f7470a7b68361c6b83395d1f0a5.zip(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_F86ASDEJ3N2PGUYI.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - files?p_File_Name=40271-959-02.pdf(Install Instructions 1 URL)
- Install Instructions URL - Schneider_Electric_CH221NAWK_Installation.pdf(Install Instructions URL)
- Line Drawing URL - Square_D_H325_Line_Drawing.pdf(Line Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_421IS0VRXK5PMFUC.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/qZyLdmwykug(Video)
- Tech Drawing URL - 11003_WXQ5ZB8072SUTEYO.dxf(Tech Drawing URL)
- Spec Sheet URL - 1658dcf282f141a5ef055129505b375c3e993498.pdf(Spec Sheet URL)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=1923.dwg(Tech Drawing URL)
- Tech Drawing URL - 4968e6f9b45c07c344b20b5b2d4fdfe246322c44(Tech Drawing URL)
- Applications
- Features
| HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. |
| HEAVY DUTY |
| Visible blades for positive indication that switch is "OFF" |
| Quick make/quick break operating mechanism |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks "OFF" position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
| Spring reinforced plated copper fuse clips |
