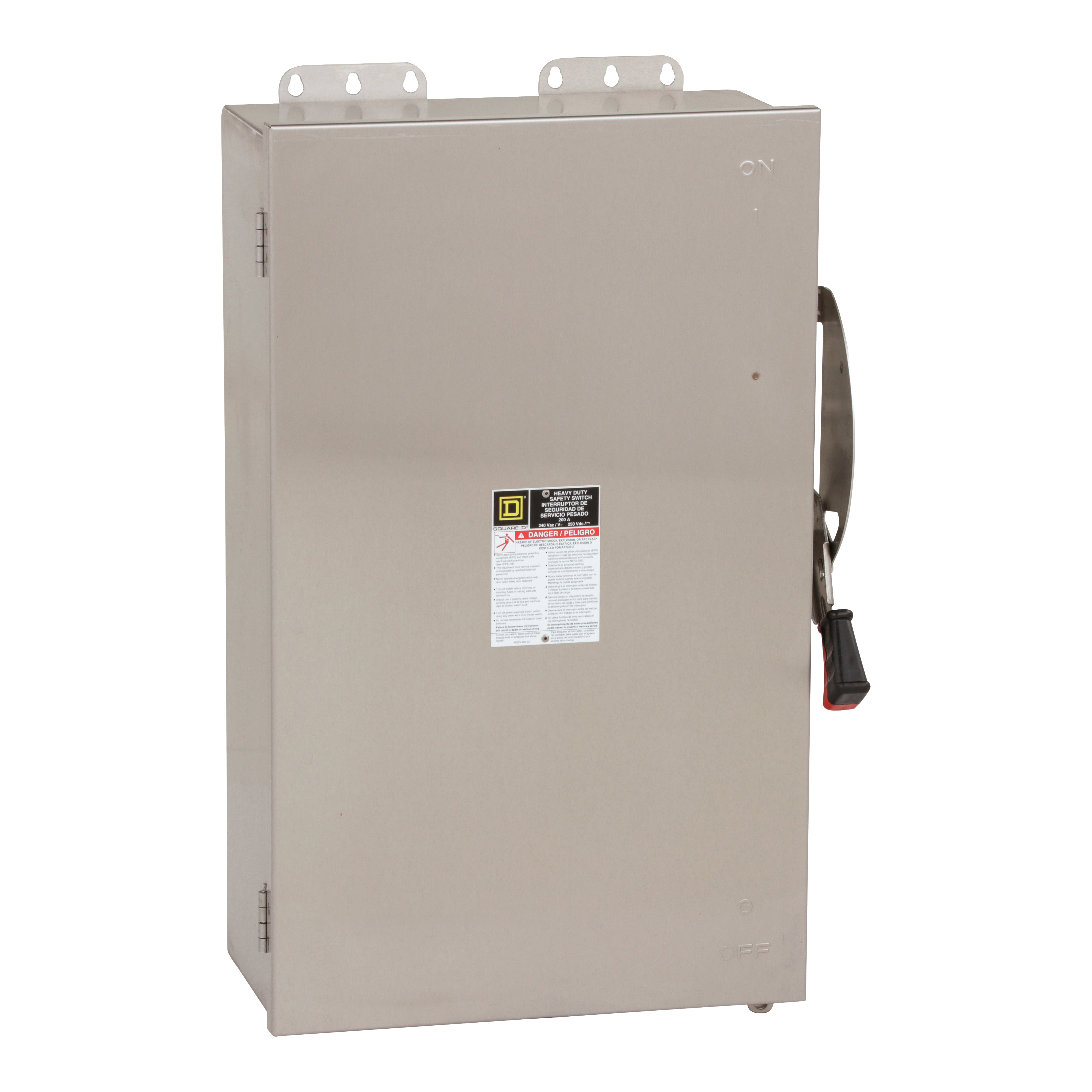

Square D™ H324DS Fusible Heavy Duty Safety Switch, 240 VAC/250 VDC, 200 A, 15/40 hp, 3 Poles, TPST
Heavy Duty Safety Switches
348631
MFG #: H324DS
Square D™
7496.00000
/ ea
Square D H324DS SW FUSIBLE 200A 3P NEMA4 4X 5 STAINLESS,200 A,250 V DC-240 V AC,304 Stainless Steel,Lugs,NEMA 3/3R4/4X/12,Rainproof, Dust tight and Corrosion Resistant (Indoor/Outdoor),Single Throw,Single Throw Safety Switch,UL Listed,heavy duty,heavy duty,surface
- 360 Degree View URL - 360(360 Degree View URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_bd2a4800350a29ef7b15c158a776a1046e6e2dadf8cbf96f7ba9d5c82cfeafd4.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_Archive_Name=3232.zip&p_enDocType=CAD&p_Doc_Ref=3232(Computer~Aided [CAD|BIM] Model URL)
- Full Eng Drawing URL - Square_D_H324N_Technical_Drawing.pdf(Full Eng Drawing URL)
- Install Instructions 1 URL - 11003_F86ASDEJ3N2PGUYI.pdf(Install Instructions 1 URL)
- Install Instructions URL - Square_D_H222N_Instruction_Sheet.pdf(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_FLG73KJWSUZ8HR0Q.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_A48GVMQRKFPS90TZ.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/s2yLxPcRTIY(Video)
- Applications
- Features
HEAVY DUTY |
HEAVY DUTY |
Visible blades for positive indication that switch is "OFF" |
Quick make, quick break operating mechanism |
Optional viewing window allows visual verification of blade position without opening door |
Red and black handle indicates the ON (red)/OFF (black) condition of the switch |
Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
Handle lock-off provision for multiple padlocks "OFF" position |
Cover can be padlock closed |
Tangential knockouts, where provided, lessen the need for conduit offset bends |
An interlock bypass is provided for access by authorized personnel |
Single throw action |
Rain proof, dusttight and corrosion resistant (indoor/outdoor) environmental conditions |
