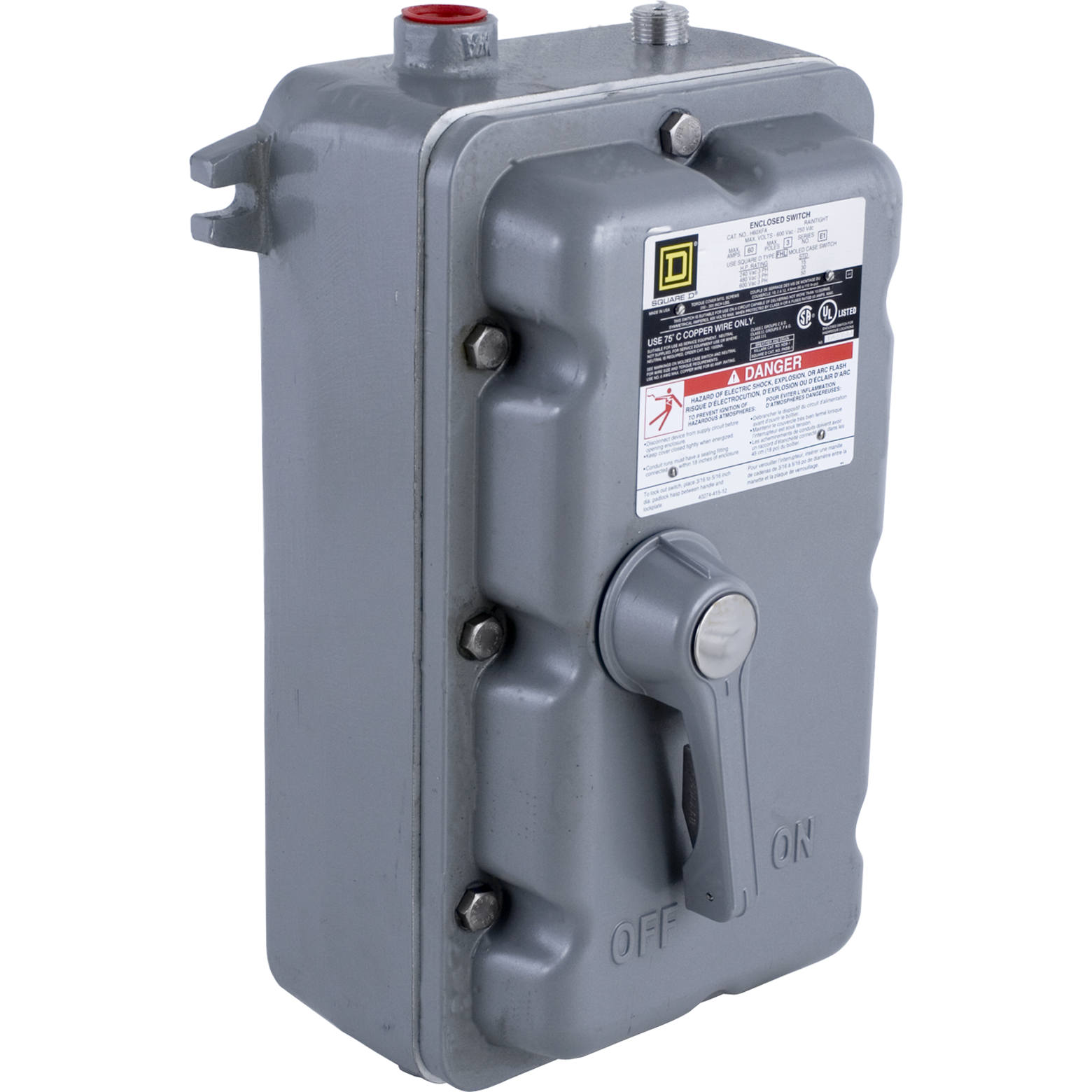

Square D™ H225XJG Heavy Duty Fusible Disconnect Key Operated Safety Switch, 250 VDC, 240 VAC, 400 A, 60 hp, Single Throw Contact, 2 Poles
Heavy Duty Safety Switches
1162885
MFG #: H225XJG
Square D™
6387.00000
/ ea
Square D™, H225XJG, Key Operated Safety Switch, Heavy Duty Fusible Disconnect, 250 VDC, 240 VAC, 400 A, 60 hp, 3 ph, 2 Pole, Single Throw Contact Form, Surface Mounting, 576.58 mm H x 277.62 mm W x 195.58 mm D Dimensions, Cast Aluminium
- Brochure URL - 11003_GX6HE412D73PZ9VO.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=3100BR9801.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=PWCCB-SW-0003.dwg(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=PWCCB-SW-0003.zip(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_F86ASDEJ3N2PGUYI.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - files?p_File_Name=40271-959-02.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_1XIU0OM3KGBF8DYP.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_J01BZRXVUSQTY7NK.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_T25JOQM01FIBHUER.zip(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=PWCCB-SW-0003.dxf(Tech Drawing URL)
- Applications
- Features
| For Heavy application |
| Fusible and non-fusible |
| NEMA Type 1, 3R, 12 and 12K Enclosures |
| NEMA Type 12 no knockouts Meets NEMA Type 3R requirements when drain plug is removed |
| NEMA Type 12K 30 -200 A knockouts on top, bottom and sidewalls |
| NEMA Type 4/4X/5 enclosures |
| Fiberglass reinforced polyester NEMA Type 4 |
| NEMA 7 and 9 enclosures for hazardous locations |
| Suitable for service entrance equipment |
| Two or three, fusible switched poles, with or without, insulated groundable solid neutral |
| Two, three, four or six, non-fusible switched poles, without insulated, grounded, solid neutral |
| Two, three, four or six, non-fusible switched poles, without insulated, grounded, solid neutral |
| Up to 200 kA Short Circuit Current Ratings, utilizing appropriately rated Class R fuses and Class R fuse kits or Class L and Class J fuses |
| Quick-make, quick-break operating mechanism |
| Visible blade switches for positive OFF indication |
| Optional viewing window allows visual verification of blade position without opening door |
| Red and black handle indicates the ON (red) or OFF (black) condition of the switch |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| Handle lock-off provision for multiple padlocks OFF position |
| Cover can be padlock closed |
| Tangential knockouts, where provided, lessen the need for conduit offset bends |
