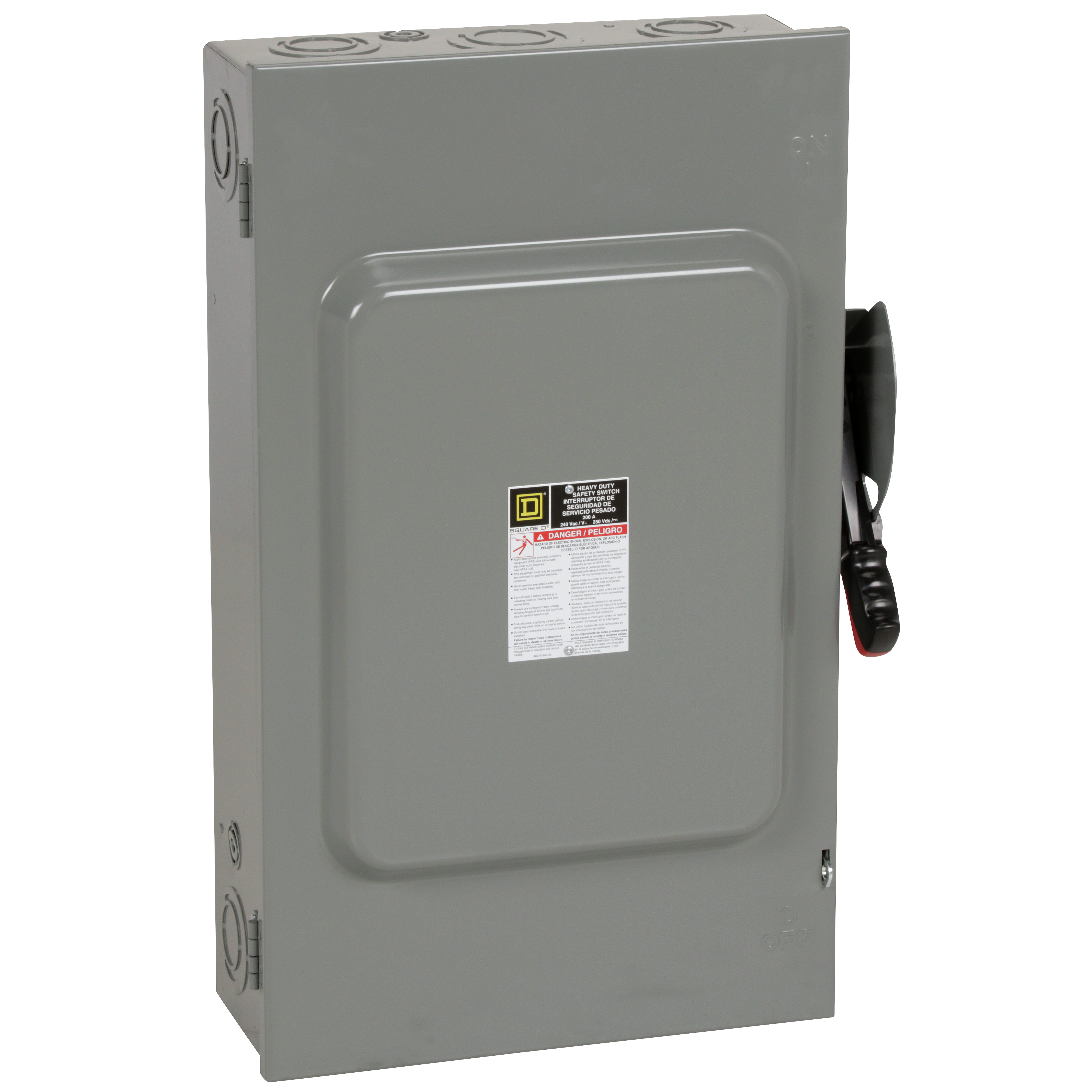

Square D™ H224N Fusible Heavy Duty Safety Switch With Neutral, 240 VAC/250 VDC, 200 A, 15/40 hp, 2 Poles, DPST
Heavy Duty Safety Switches
98528
MFG #: H224N
Square D™
623.35000
/ ea
- 360 Degree View URL - 360(360 Degree View URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_bd2a4800350a29ef7b15c158a776a1046e6e2dadf8cbf96f7ba9d5c82cfeafd4.pdf(Catalog URL)
- Compliance Cert URL - Square_D_H224N_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - f7b1a75a04c8d0a444740391488695dd5334e79c.zip(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_F86ASDEJ3N2PGUYI.pdf(Install Instructions 1 URL)
- Install Instructions URL - Square_D_H222N_Instruction_Sheet.pdf(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_Y5EJR3LPVSON1XQT.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_ES0VNW3PI1JB4COQ.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/eDpOzHTM8qw(Video)
- Applications
- Features
| HEAVY DUTY |
| HEAVY DUTY |
| Visible blades for positive blade position indication |
| Red and black handle indicates the on (red) or OFF (black) switch position |
| Side opening, left hinged covers |
| Highly visible embossed ON/OFF marking/ON/OFF labels are used on type 4x fiberglass reinforced polyester enclosures |
| Quick-make and quick-break operating mechanism |
| Standard with plated aluminum lugs which accept both Cu and Al wires |
| Front removable mechanical lugs |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| An interlock bypass is provided for access by authorized personnel |
