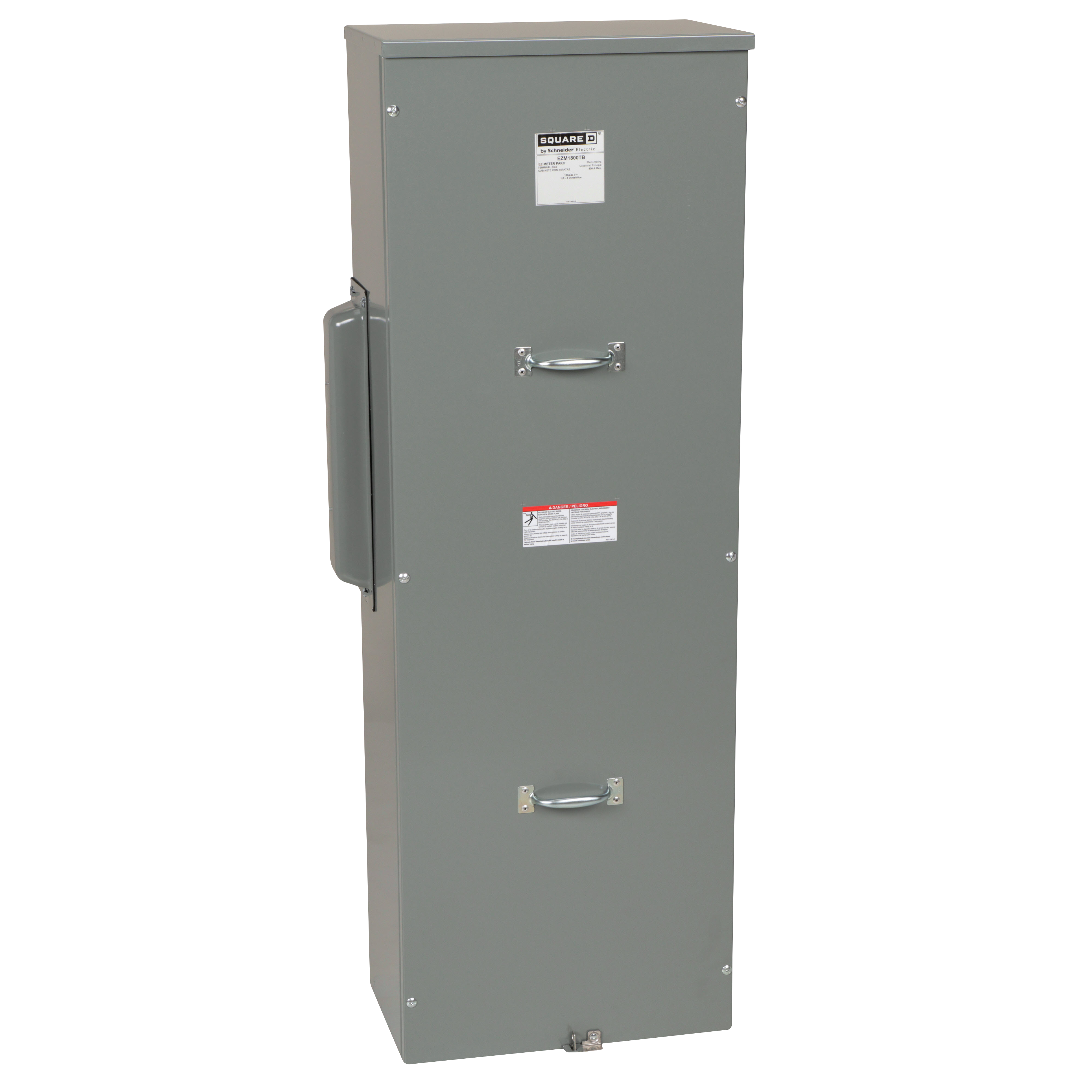

Square D™ EZ Meter Pak™ EZM1800TB Rainproof Meter Centre Main Unit, 120/240 VAC, 800 A, 1 Phase, NEMA 3R Enclosure
Main Lug Terminal Box Modules
97554
MFG #: EZM1800TB
Square D™
528.34000
/ ea
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8129901360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Catalog 1 URL - Square_D_A150_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - IDW_DOCUMENT_2a505a6977e293fb7995c66fbf64abd065f54588321043084ae31aec989ea2ad.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3111.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions URL - Square_D_EZM1400TB_Installation.pdf(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_41MYBOPCKWL29FA7.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_RI1O6UJZK0T48F5W.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_RJC82DLAKB4EFYTQ.dwg(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=3111.dwg(Tech Drawing URL)
- Features
| MAIN LUGS,ALUMINIUM BUSBAR |
| Lug (1) cables from 6 AWG to 300 kcmil Al/Cu ground, lug (4) cables from 3/0 AWG to 500 kcmil Al/Cu line, lug (4) cables from 3/0 AWG to 500 kcmil Al/Cu neutral |
| 1 phase in, 1 phase out |
| Overhead/underground feed direction |
| Terminal box is suitable for use on LINE or LOAD side of service equipment, supplied with isolated neutral and provided with neutral bonding kit for use as required |
| 6 AWG to 300 kcmil aluminum or copper ground, 3/0 AWG to 500 kcmil aluminum or copper line/neutral wire |
| Steel enclosure, aluminum busbar |
| 6 AWG to 300 kcmil, 3/0 AWG to 500 kcmil wire size |
