Square D™

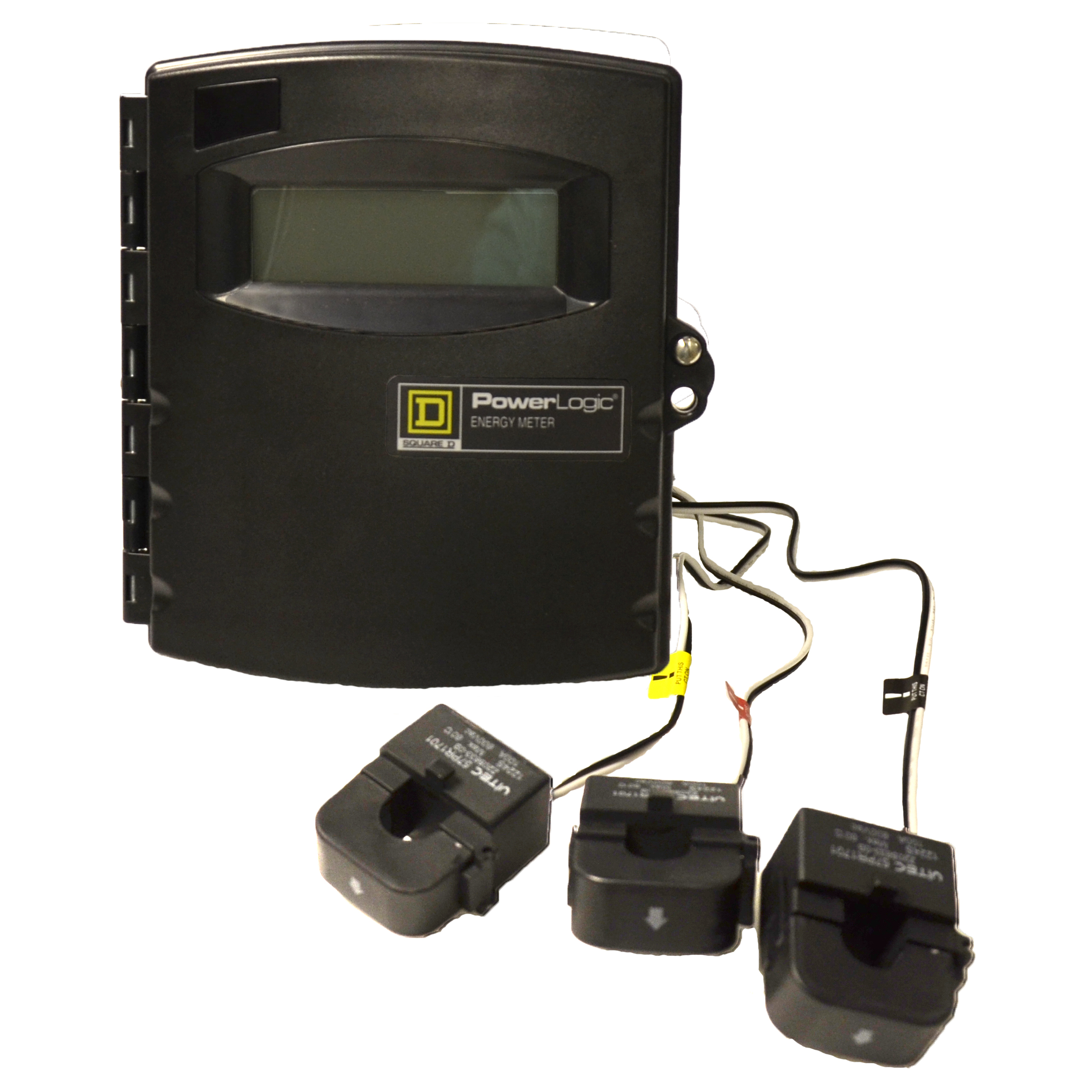

Square D™ EME2010 ENERGY METER,EXT RANGE
Custom_Product_Images_Illustration
Square D™
Square D™ EME2010 ENERGY METER,EXT RANGE
SKU516085
MFGR #EME2010
Your Cost: $847.51/ea
List: Square D EME2010 ENERGY METER,EXT RANGE 100A,.518X1.28I,100 A,120/240V?480Y/277V,2 CTs,Energy Meter,PowerLogic,for stand-alone and systems based submetering applications
Square D EME2010 ENERGY METER,EXT RANGE 100A,.518X1.28I,100 A,120/240V?480Y/277V,2 CTs,Energy Meter,PowerLogic,for stand-alone and systems based submetering applications
Alternate Catalog Number EME2010 Application ENERGY MONITORING ARRA Compliant N Buy American Compliant N Catalog Number EME2010 Country of Origin US Currency USD Dimensions 193 mm W x 76 mm D x 211 mm H Display Type Backlit LCD EU RoHS Indicator Y Gross Weight Per Pack 1.0000 lb Gross Weight per Pack Metric 2.72 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9028300000 Height 22.2250 in Indicator BACKLIT LCD,ENERGY CONSUMPTION-POWER-POWER MAXIMUM)-REACTIVE POWER-POWER FACTOR-VOLTAGE-CURRENT,PHASE LOSS NC FUNCTION Insulation , 320-320 V Item Group 09779 Length 2.7220 in Output 1 PULSE-1 ALARM OUTPUT,24 V AC/DC@100 MA Returnable N Size 193 MM,211 MM in Standard ANSI C12.1,UL UL 3111-1-CUL Standards ANSI C12.1ARRA CompliantBAA CompliantECCN EAR99RoHS CompliantPROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Sub Brand POWERLOGIC ENERGY METER Type Extended Range UNSPSC 39121106 UPC 11 78590100032 UPC 12 785901000327 Warranty Description Contractual Warranty:18 months Width 30.4800 in Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 A Frequency Rating 50/60 Hz Voltage Rating 120/240 V to 480Y/277 V ENERGY MONITORING 1280 HZ 0.518 x 1.28 in ID, 2 CTs High-resolution back-lit liquid crystal display True reading display - no multipliers are required for data readings Simple, fast installation - factory assembled split-core CTs reduce installation time and color coding makes determine correct phase matching easy Easy integration to PowerLogic™ or control/data acquisition systems - extended models have pulse output contacts, selectable from 1/10 to 1 kWh per pulse, for easy integration to existing control systems
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Alternate Catalog Number | EME2010 |
| Application | ENERGY MONITORING |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EME2010 |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 193 mm W x 76 mm D x 211 mm H |
| Display Type | Backlit LCD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1.0000 lb |
| Gross Weight per Pack Metric | 2.72 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9028300000 |
| Height | 22.2250 in |
| Indicator | BACKLIT LCD,ENERGY CONSUMPTION-POWER-POWER MAXIMUM)-REACTIVE POWER-POWER FACTOR-VOLTAGE-CURRENT,PHASE LOSS NC FUNCTION |
| Insulation | , 320-320 V |
| Item Group | 09779 |
| Length | 2.7220 in |
| Output | 1 PULSE-1 ALARM OUTPUT,24 V AC/DC@100 MA |
| Returnable | N |
| Size | 193 MM,211 MM in |
| Standard | ANSI C12.1,UL UL 3111-1-CUL |
| Standards | ANSI C12.1ARRA CompliantBAA CompliantECCN EAR99RoHS CompliantPROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Sub Brand | POWERLOGIC ENERGY METER |
| Type | Extended Range |
| UNSPSC | 39121106 |
| UPC 11 | 78590100032 |
| UPC 12 | 785901000327 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 30.4800 in |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 100 A |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 120/240 V to 480Y/277 V |
| ENERGY MONITORING |
| 1280 HZ |
| 0.518 x 1.28 in ID, 2 CTs |
| High-resolution back-lit liquid crystal display |
| True reading display - no multipliers are required for data readings |
| Simple, fast installation - factory assembled split-core CTs reduce installation time and color coding makes determine correct phase matching easy |
| Easy integration to PowerLogic™ or control/data acquisition systems - extended models have pulse output contacts, selectable from 1/10 to 1 kWh per pulse, for easy integration to existing control systems |
