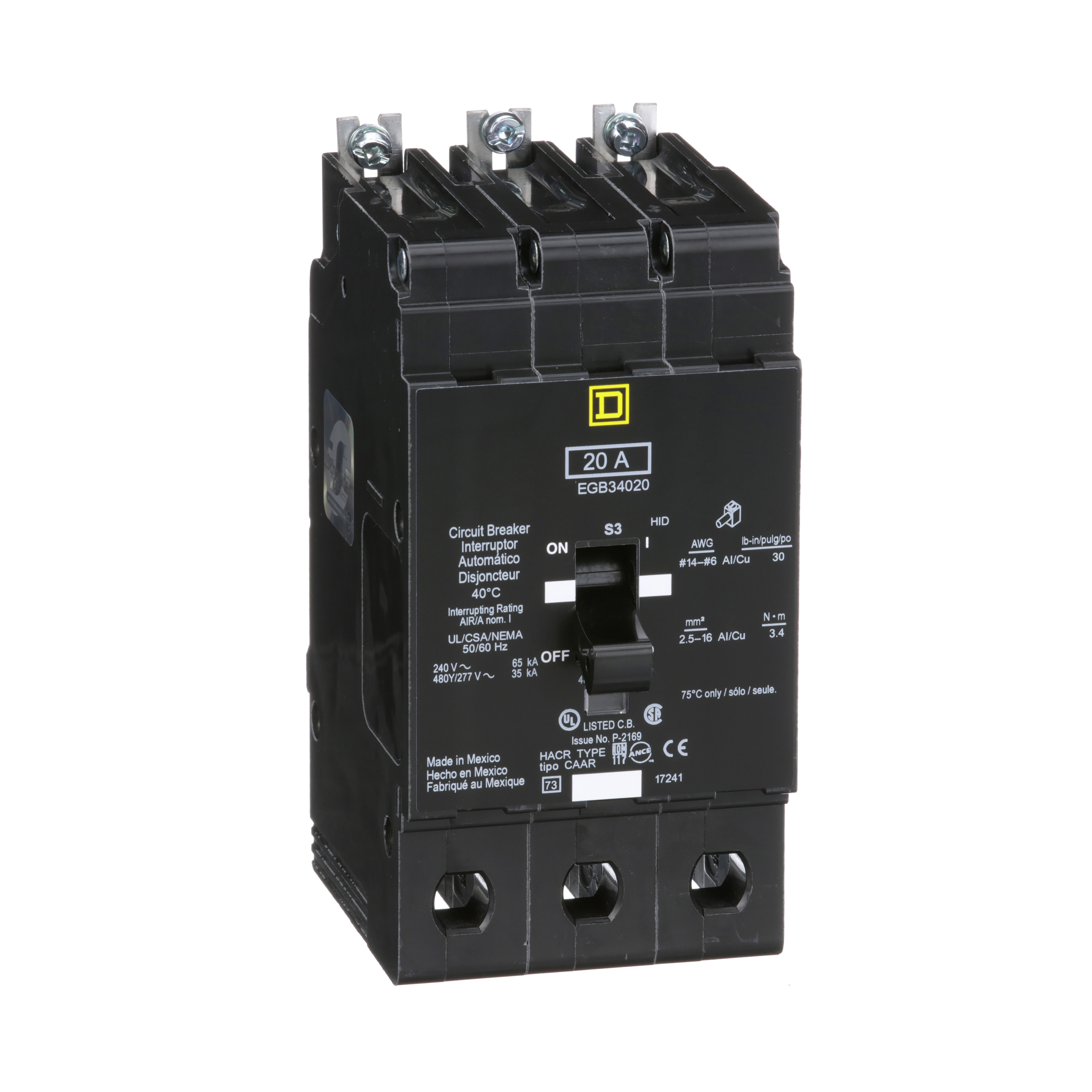

Square D™ EGB34020 Miniature Circuit Breaker, 277/480 VAC, 20 A, 35 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Circuit Breakers
62837
MFG #: EGB34020
Square D™
1120.63000
/ ea
Square D EGB34020 MINIATURE CIRCUIT BREAKER 480Y/277V 20A,20A,35kA,Bolt-On,E frame,E-Frame,Hold 270A - Trip 875A,Lugs #12 to #6 AWG(Al) - #14 to #6 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
- 360 Degree View URL - index.html?pid=11003&id=8006579360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=EGB34020(3D Rendering URL)
- Compliance Cert URL - Schneider_Electric_EGB34020_Compliance_Certificate.pdf(Compliance Cert URL)
- Brochure URL - 11003_FC8OLTS5M7ZUQ90G.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_7e3b07b05c8d33c7fcb64ea19cb7d3fab67f1ecc4293fb50c9b5163a7211476d.pdf(Catalog URL)
- Install Instructions 1 URL - 11003_W405MTQD91NUXV7Z.pdf(Install Instructions 1 URL)
- Tech Bulletin URL - 11003_IBUNZRTP0GWX4CQM.pdf(Tech Bulletin URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_6YTNP01EFUSQGWA7.pdf(Service Manual URL)
- Spec Sheet URL - 11003_VLRXF0Y9G81BESP3.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_04ABFRUQ1MCG3D2N.pdf(Tech Drawing URL)
- Install Instructions URL - files?p_Doc_Ref=48840-097-02(Install Instructions URL)
- Applications
- Features
| NF panelboard;HID rated;HACR rated |
| BOLT-ON |
| StandardsNF circuit breaker panelboards are designed, manufactured, and tested tocomply with the following standards: |
| UL 67 - Standard for Panelboards |
| UL 50 - Enclosures for Electrical Equipment |
| UL Listed Class CTL panelboard |
| CSA C22.2, No. 29- M1989 - Panelboards and Enclosed Panelboards |
| CSA C22.2, No. 94- M91 - Special Purpose Enclosures |
| NEMA PB 1 - Panelboards |
| NFPA 70 - National Electrical Code® (NEC®) |
| Federal Specification W-P-115C Type I Class 1 - CircuitBreaker Panelboards |
| 2003 IBC, NFPA 5000, ASCE/SE17 - Seismic Qualification |
