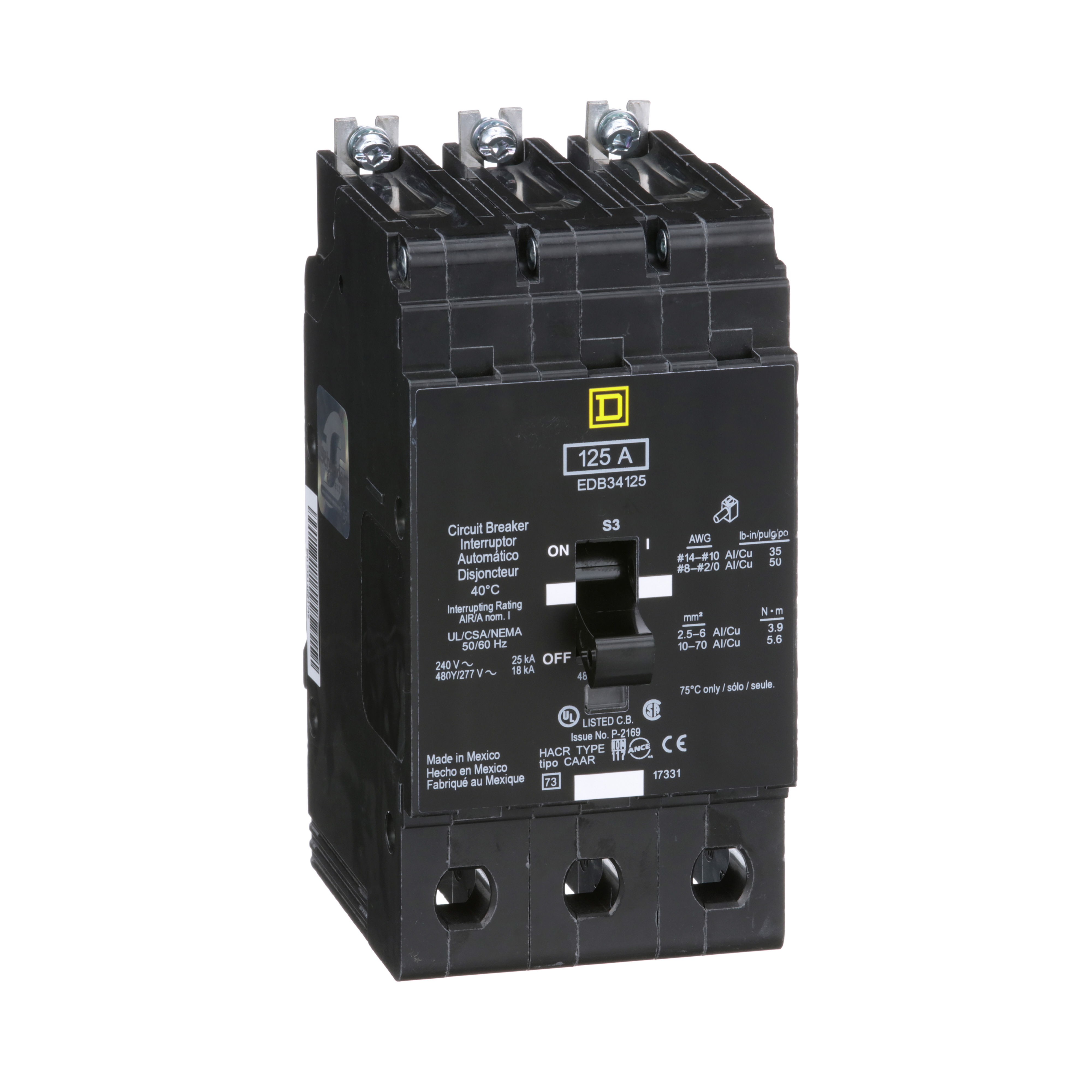

Square D™ EDB34125 Miniature Circuit Breaker, 277/480 VAC, 125 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Circuit Breakers
31949
MFG #: EDB34125
Square D™
2339.47000
/ ea
Square D EDB34125 MINIATURE CIRCUIT BREAKER 480Y/277V 125A,125,18kA,Bolt-On,E frame,E-Frame,Hold 1000A - Trip 2300A,Lugs #12 to #2/0 AWG(Al) - #14 to #2/0 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
- 360 Degree View URL - index.html?pid=11003&id=8006564360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=EDB34125(3D Rendering URL)
- Compliance Cert URL - Schneider_Electric_EDB34125_Compliance_Certificate.pdf(Compliance Cert URL)
- Brochure URL - 11003_FC8OLTS5M7ZUQ90G.pdf(Brochure URL)
- Catalog URL - Schneider_Electric_EDB14015_Catalog.pdf(Catalog URL)
- Install Instructions 1 URL - 11003_W405MTQD91NUXV7Z.pdf(Install Instructions 1 URL)
- Tech Drawing URL - 11003_Y7IKXZNP93Q2RGFJ.pdf(Tech Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_6YTNP01EFUSQGWA7.pdf(Service Manual URL)
- Tech Bulletin URL - 11003_IBUNZRTP0GWX4CQM.pdf(Tech Bulletin URL)
- Spec Sheet URL - 11003_L2UQWT1BEX06NP79.pdf(Spec Sheet URL)
- Install Instructions URL - files?p_Doc_Ref=48840-097-02(Install Instructions URL)
- Applications
- Features
| NF panelboard;HACR rated |
| BOLT-ON |
| Visi-Trip® trip indicator |
| 1000 A hold, 2300 A trip current |
| For merchandised NF panelboards |
| 12 to 2/0 AWG aluminum, 14 to 2/0 AWG copper wire |
